Kenwood DS 300 Service Manual

Page 1

COMPACT DISC PLAYER

DP-4090/DP-5090/D-S300

SERVICE MANUAL

KENWOOD

©1997-6/BS1-5324-00 (K/K) 2172

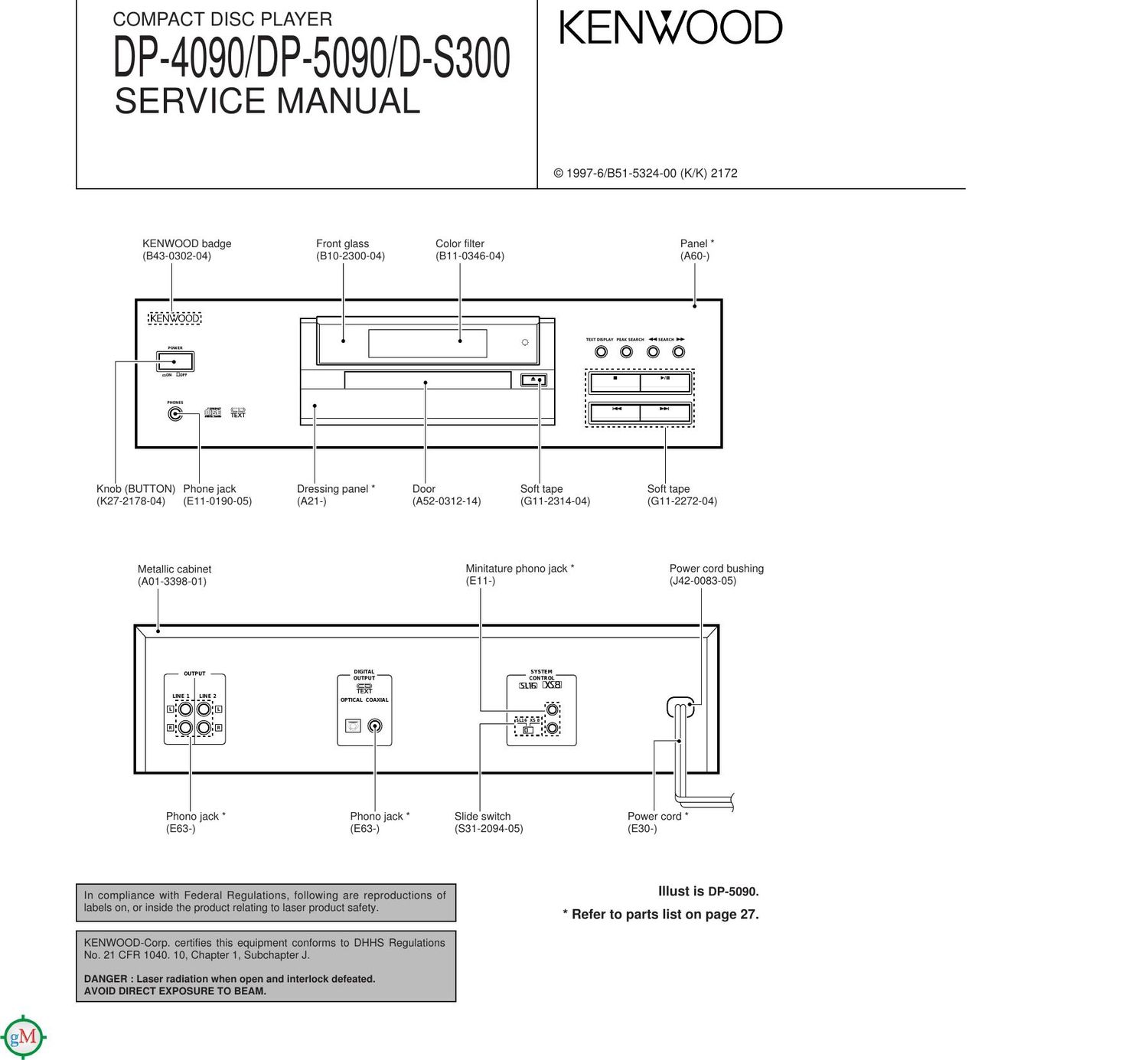

KENWOOD badge Front glass Color filter Panel

(343-0302-04) (310-2300-04) (B11-0346-04) (A60-)

.___| ______

LKENWQQPJ i

--:| Q Q Q O
(3% a

Knob (BUTTON) Phone jack
(K27-2178-04) (E11-0190-05)

Dressing panel Door
(A21 -)

Metallic cabinet
(A01-3398-O1)

(A52-O312-14)

Solt tape
(611-2314-04)

Minitature phono (ack
(E11-)

Soft tape
(611-2272-04)

Power cord bushing
(J42-0083-05)

mam
numn

nPncAL :eAXtAL

CC)

Phono1ack
(E63-)

Phono jack
(E63-)

Slide switch
(831-2094-05)

In compliance with Federal Regulations, following are reproductions of
labels on. or inside the product relating to laser product safety.

KENWOOD-Corp. certifies this equipment conforms to DHHS Regulations
No. 21 CFR 1040. 10, Chapter 1, Subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.

Power cord
(1230-)

Illust is DP-5090.

* Refer to parts list on page 27.

Page 2

DP-4090/5090/D-S300

CONTENTS / ACCESSORIES / CAUTION

Contents

CONTENTS / ACCESSORIES / CAUTION ....2 PC BOARD ......................

EXTERNAL VIEW .......................................... ....3 SCHEMATIC DIAGRAM ..

DISASSEMBLY FOR REPAIR.... ....4 EXPLODED VIEW ..

BLOCK DIAGRAM ............... .5 PATS LIST ..........

CIRCUIT DESCRIPTION ..... ....6 SPECIFICATIONS ..

ADJUSTMENT ............................................................. 9

Accessories
Audio cord (1) System control cord (1) AC plug adaptor (1)
(E30-0505-05) (E30-2733-05) (E03-0115-05)

M type only

%

Remote control unit (1) Batteries (FIG/AA) (2)
(A70-1048-05: RC-P0703) DP.R4080 only

DP-R4080 only
'3

Batten! cover: (A09-0356-08)

Caution

Note related to transportation and movement

Before transporting or moving this unit, early out the following

operations.

1. Turn the power ON but do not load a disc.

2. Wait a few seconds and verify that the display shown appears.
Wait further a few seconds.

3. Tum the power OFF.

t z 3 4 5
e 7 a 9 10
H

I F t2131415
123A5 Ill] DIISL t6t7131920
