Kenwood DPX 502 UY Service Manual
This is the 44 pages manual for Kenwood DPX 502 UY Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DPX 502 UY Service Manual (Ocr-read)
Page 1

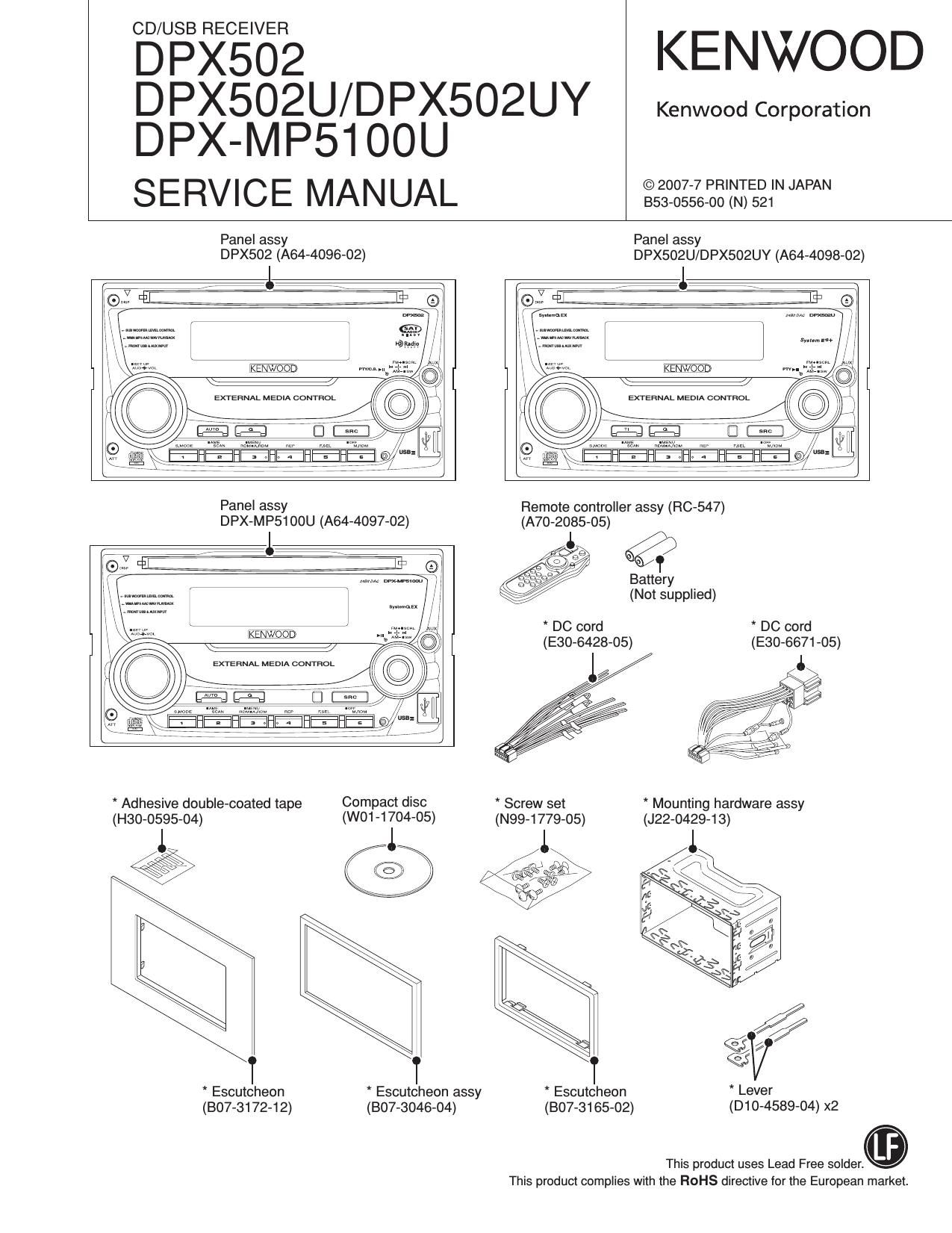

CD/USB RECEIVER
DPX502 KENWOOD
D PX502 U/D PX502 UY Kenwood Corporation
DPX-MP51 OOU
SERVICE MAN UAL ©2007-7 PRINTED IN JAPAN
853-0556-00 (N) 521
Panel assy Panel assy
DPX502 (A64-4096-o2)
DPX502U/DPX502UY (A64-4098-02)
|
07",,
Panel assy
Remote controller assy (RC-547)
DPX-MP5100U (A64-4097-02) (A70-2085-05)
Battery
(Not supplied)
* DC cord * DC cord
(E30-6428-05) (E30-6671-05)
* Adhesive double-coated tape Compact disc * Screw set * Mounting hardware assy
(H30-0595-04) (W01-1704-05) (N99-1779-05) (J22-o429-13)
* Escutcheon
(BO7-3172-12) (BO7-3046»04)
* Escutcheon assy * Escutcheon * Lever
(307-3165-02) (D10-4589-O4) x2
This product uses Lead Free widen.
This product complies with the RoHS directive for the European market.
