Kenwood DPX 502 U Service Manual

This is the 44 pages manual for Kenwood DPX 502 U Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 44
Kenwood DPX 502 U Service Manual

Extracted text from Kenwood DPX 502 U Service Manual (Ocr-read)


Page 1

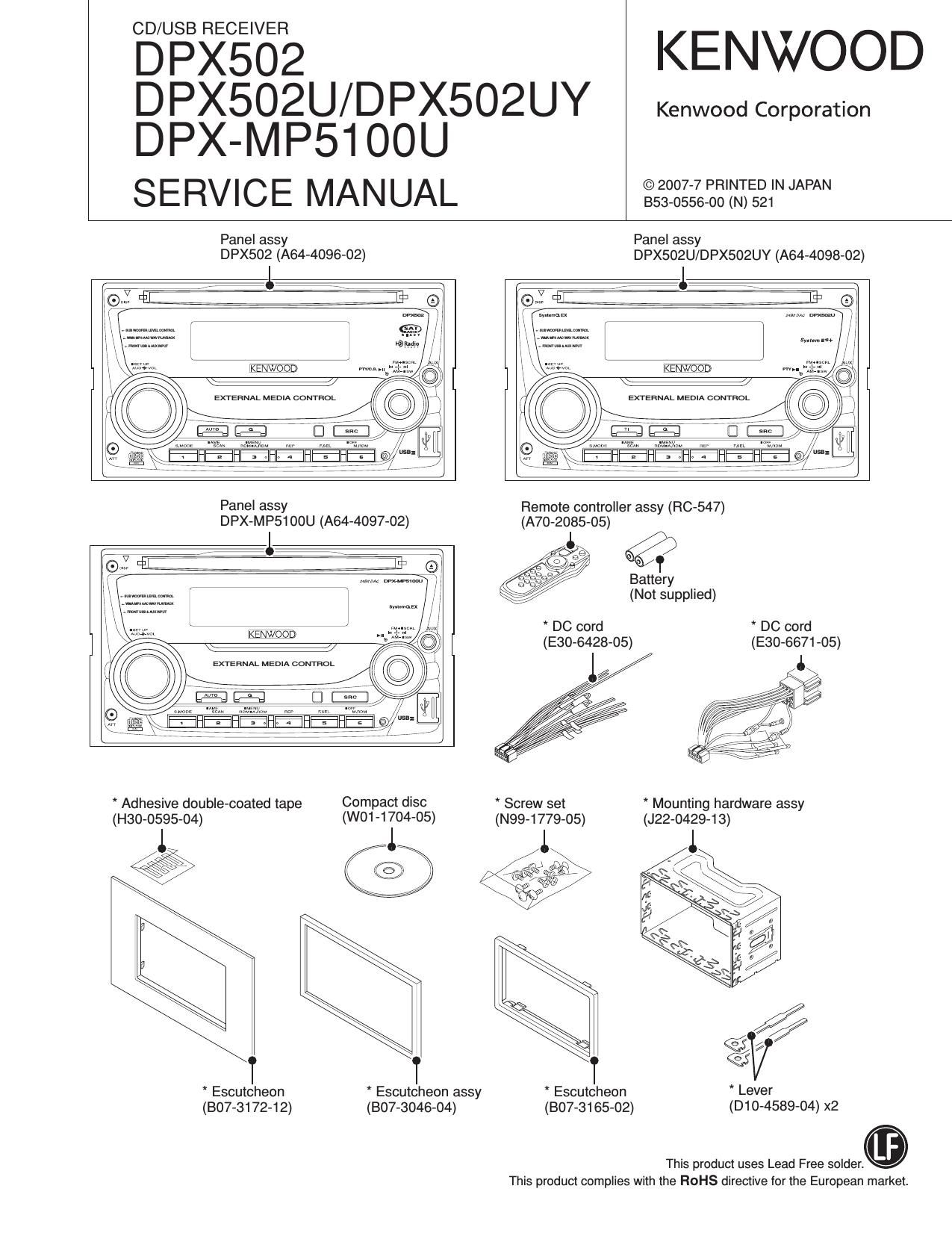

CD/USB RECEIVER

DPX502 KENWOOD
D PX502 U/D PX502 UY Kenwood Corporation
DPX-MP51 OOU

SERVICE MAN UAL ©2007-7 PRINTED IN JAPAN

853-0556-00 (N) 521
Panel assy Panel assy
DPX502 (A64-4096-o2)

DPX502U/DPX502UY (A64-4098-02)
|
07",,

Panel assy

Remote controller assy (RC-547)
DPX-MP5100U (A64-4097-02) (A70-2085-05)

Battery
(Not supplied)

* DC cord * DC cord
(E30-6428-05) (E30-6671-05)

* Adhesive double-coated tape Compact disc * Screw set * Mounting hardware assy
(H30-0595-04) (W01-1704-05) (N99-1779-05) (J22-o429-13)

* Escutcheon
(BO7-3172-12) (BO7-3046»04)

* Escutcheon assy * Escutcheon * Lever

(307-3165-02) (D10-4589-O4) x2

This product uses Lead Free widen.

This product complies with the RoHS directive for the European market.
