Kenwood DPX 440 Owners Manual

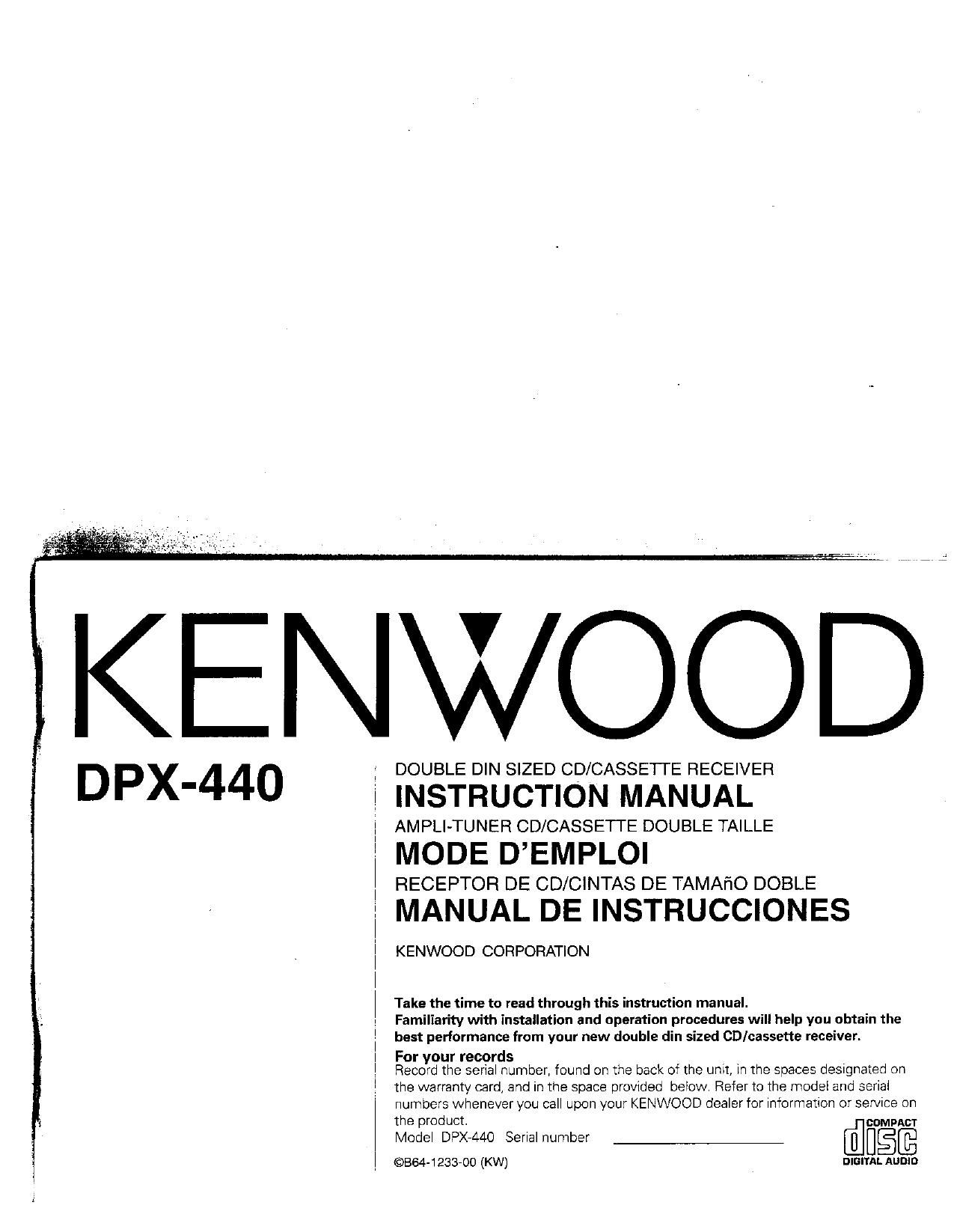

Page 1

KENWOOD

DPX-440

I

DOUBLE DIN SIZED CD/CASSETI'E RECEIVER

INSTRUCTION MANUAL

AMPLI-TUNER CD/CASSETI'E DOUBLE TAILLE

MODE DEMPLOI

RECEPTOR DE CD/CINTAS DE TAMAfiO DOBLE

MANUAL DE INSTRUCCIONES

KENWOOD CORPORATION

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the
best performance from your new double din sized (ID/cassette receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the mode! and seriaI
numbers whenever you call upon your KENWOOD dealer for information or service on
the product. COMPACT

Model DPX-44O Serial number -___- @U§@

©BB4-1233-00 (KW) DIGITAL Aumo

Page 2

English

Contents

Before use
Warning ...............
Safety precaution
Handling Compact discs

Buttons and Display
Ba5ic operations
Tuner features.
Cassette player features
Disc control feature
DSP features.
Other feature
Remote ......

Basic operations
Power ......... .1i
Swnching Modes
Volume
Attenua
Loudness
Function Set yste

Tuner features
Selecting Tuning Mode.
Tuning ......................
Station Preset Memory.
Auto Memory Entry...
Clean Reception System Circun lCRSCl.
Switching Display for Tuner.
Station Name Preset (SNPS)
Station Name Preset Play (SNPP).

Cassette player features
Playing Cassette Tapes ....................................
Fast Forwarding and Rewinding Cassette Tapes.
Usmg Dolby 8 Noise Reduction. .
SWItching Tape Types
Blank Skip ......
Tape Advance
Music Repeat

Disc control features
Playing CDs
Playing other Disc mode

Switching Display Mode for Discs
Switching Time Display
Fast Forwarding and Reversmg Disc Play
Track Search
Disc Search

Track Repeat.
Disc Repeat
Track Scan
Disc Scan

Random Play.
Magazine Ran
Presetting Disc Names ..
Disc Name Preset Play (DNPP

DSP features
DSP (Digital Sound Processor)
Sound Field Control .......
Preset Equalizer Selection,
Spectrum Analyzer Selection
Demonstration of Spectrum Analyze

Other features
Audio Control Setting ...........
Table of Audio Control Setting
Switching Preout.
Touch Sensor Tone.
Dimmer ......
Clock Displa
Adjusting Tim
Side Bar Display e ea 0

Basic operations of remot

Installation
Accessories .............
installation Procedur
Connecting Wires to Terminals.
Installation lfor NonrHONDA ACU
Installation (for HONDA ACURA Carl

Troubleshooting guide ............
Specifications ...................................................................... 40

Page 21

Function ofdisc changers

Disc Repeat
Repeat playing the disc currently being listened to.

Turning Disc Repeat Play On/Off:
Press the REP button for at least one second to switch disc
repeat play on and off.
The DEEP indicator lights up when disc repeat play is turned
on. The disc number currently being heard blinks in the display.

Repeat play is canceled when you stop playing the disc.

Successively play the beginning of each track on a disc until
you find the track that you want to listen to.

Turning Track Scan On/Off:
Press the SCN button to swrtch track scan on and off.
The SCN indicator lights up when track scan is turned on.
The first 10 seconds of each track Will be played, in order.
The track number currently being heard blinks in the display.

Stopping to Listen to the Track Being Scanned:

Press the >Il or SCN button again to stop the scan and keep
on listening to a track normally.

- Track scan is canceled when you stop playing a disc.
~ Track scan only scans each track on a disc once.

Function of disc changers

Successively play the beginning of each disc on a changer
until you find the one that you want to listen to.

Turning Disc Scan On/Off:
Press the D SCN button to switch disc scan on and bit.
The D.SCN indicator lights up when disc scan is turned on.

The first 10 seconds of each disc Will be played, in the order
they are loaded on the changer.
The disc number currently being heard blinks in the display

Stopping to Listen to the Disc Being Scanned:

Press the >II or DSCN button again to stop the scan and keep
on listening to the disc normally.

- Disc scan is canceled when you stop playing a disc.

- Disc scan only scans each disc on the changer once.

- "Load" is displayed when discs are being exchanged on the disc
changer.

Random Play .

Play all the tracks on the current disc in random ordert

1 Press the RDM button to sWitch random play on and off.
The RDM indicator lights up when random play is turned on.
The track number will change over and over in the display as
the next track is being selected.

When the track has been selected, play will begin.
The selected track number blinks in the display as it is being
played.

-(for disc changers)

When all the tracks on a certain disc have been played using
random play, the next disc on the changer will start playing usmg
the same function.

2 To change the track being heard, press the >>l button
Another track will be selected and played.

Random play is canceled when you stop playing a disc.

_21_
