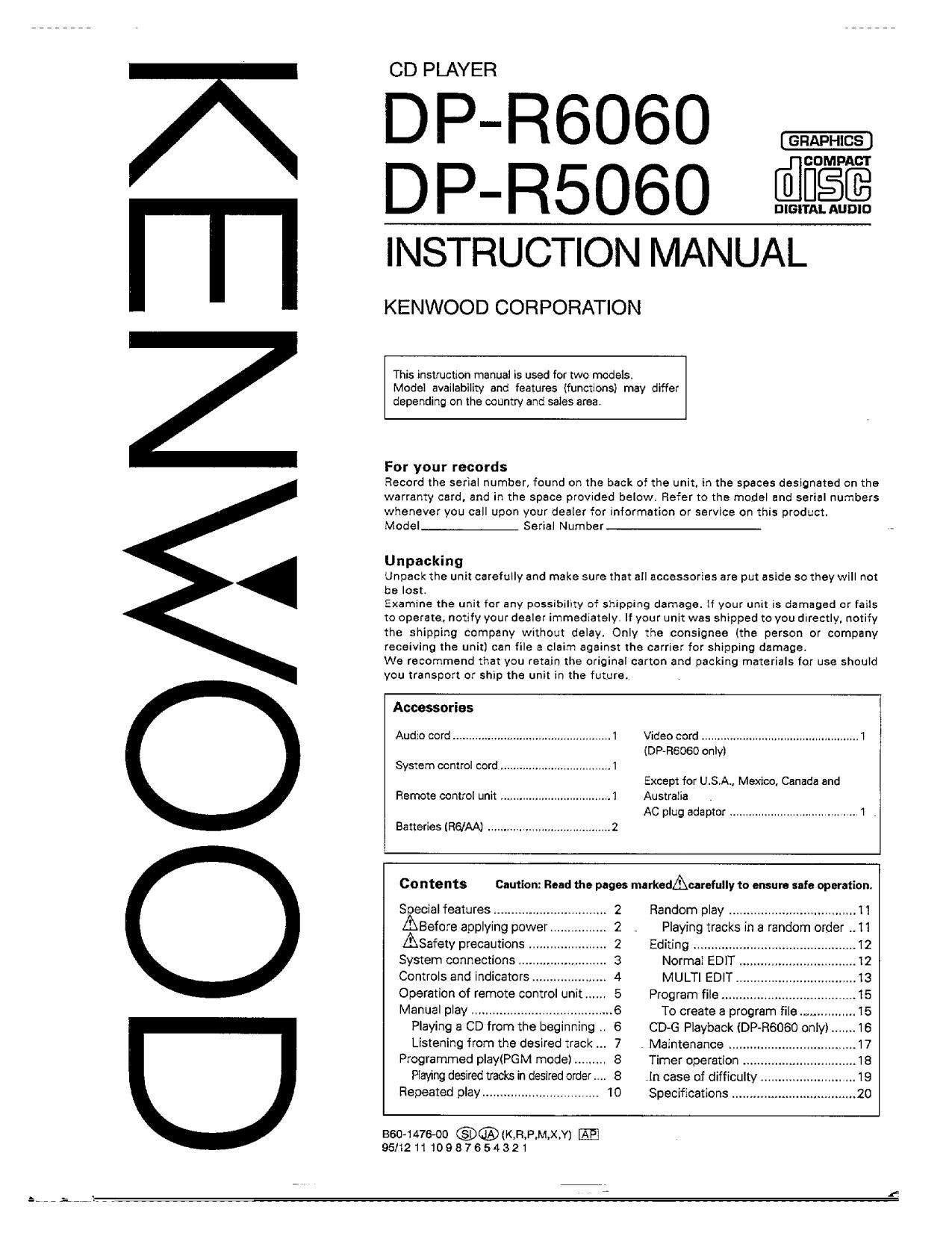

Page 1

IOOMNEN

CD PLAYER

DP-R6060
DP-R506O dist;

INSTRUCTION MANUAL

KENWOOD CORPORATION

This instruction manual is used for two models.
Model availability and features (functions) may differ
depending on the country and sales area,

For your records

Record the serial number, found on the back oi the unit. in the spaces designated on the
warranty card, and in the space provrded below. Reter to the model and serial numbers
whenever you call upon your dealer for iniormation or service on this product,
Model___ Serial Number- .

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not
be lost.

Examine the unit for any possibility of shipping damage. if your unit is damaged or fails
to operate, notify your dealer immediately If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee (the person or company
receiving the unit) can file a claim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials for use should
you transport or ship the unit in the future.

Accessories

...l Video cord
(DP-H8060 only)

Audo cord ......................

System control cord .......

Except for U.S.A., Mexico, Canada and
...l Australia
AC plug adaptor . .. . .. . ..1 ,

Remote control unit .......

Batteries (RES/AA} ..................................... 2

Contents Caution: Read the pages markedAcarelully to ensure safe operation.

Special features .. 2 Random play 1
Before applying power. 2 Playing tracks in a random order ..11
Safety precautions . 2 Editing

System connections 3 Normal EDIT

Controls and indicators ............ 4 MULTI EDIT

Operation of remote control unit 5 Program file.

Manual play ............................... ....6 To create a program file
Playing a CD from the beginning .. 6 CD6 Playback (DP-R6060 only)
Listening from the desired track 7 . Maintenance

Programmed play(PGM mode) 8 Timer operation
Playing desired tracks in desired order 8 In case of difficulty

Repeated play ...................... . 10 Specifications

BSD-1476700 ®®(K,R.P.M.x,ri
95/121110987654321

Page 2

Special features

A Caution: Read this page carefully to ensure safe operation.

CD-G (Graphics) compatibility ................... ..... m... ....sWhen connected to a TV equipped with 3 VIDEO input

(DP-R6050 only) terminal, CD Karaoke with picture and words can be enjoyed.

Program tile ............................................................. The programmed contents of up to 100 dist: can be stored
in the program file (up to 16 songs per disc).

MUL11 EDIT .. .......... ........ .......... ..................................... Several CD5 can be edited and recorded on 1 tape.

Adoption of mechanism that enables

disc changing even during Playback ......................................... 4 other discs can be changed not only when the unit is

stopped, but also during playback.

Before applying power
m

Units are designed for operation as follows.

Ac voltage selection

U'S'A' ' Mexico and Canada 120 V only This unitoperalssonIiO-IZDorZZD-240voits AC. TheACvoitage
U-K- and Australia ----- 240 V only selector switch on the rear panel is set to the voltage that prevails
Europe (Except for J .. .... ---------------- 230 VOI'IIY in the area to which the unit is shipped. Before connecting the
Other countries ........ ........... 110-120 I 220-240 V switch power cord to your AC outlet. make sure thatthe setting posItIon of

this SWItch matches your line voltage. If not. It must be set to your
voltage in accordance WIth the following direction.

For the United Kingdom
Ac voltage selector switch

Factory fitted moulded mains plug

IE]

Acum-rwvm-ncboznav»

1 . The mains piugcontams a fuse. For replacement use only a 13-Amp
ASTA-approved {BSISGZI fuse.

2. The fuse cover must be refitted when replacing the fuse In the
moulded plug.

3. Do not cutoff the mains pIug from this equipmenL If the plug fitted
is not swtable for the power points In your home or the cable is too
short to reach a power point. then obtain an appropriate safety

approved extension lead or adapter, or consult your dealer. Move swimh lever to match your line voltage with
If nonetheless the mains plug is cut off. remove the fuse and '5 Ema SCWdiVE' 0" Other pointed (00'-

dispose of the plug immediately. to avozd a possible shock hazard >

by Inadvertent connection to the mains supply. Note.

Our warranty does not cover damage caused by excessive lIne
voltage due to improper settmg of the AC voltage selector switch.

Safety precautions

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN 0R MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC :SHOCK. DO NOT REMOVE
COVER (OFI BACK). NO USER-SERVICEAELE PARTS lNSIDE. REFER SER-
°"°7 a VICING TO QUALIFIED SERVICE PERSONNEL. ,

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EOUILATERAL TRIANGLE,
ES iNTENDEO T0 ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOL-
TAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLEIS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) 'iNr
STRUCTIONS IN THE LITERATURE ACCOMPANYING THEAPPLIANCE.

2 oP-Rsoso I censueo (En)
