Kenwood DPR 4070 Owners Manual

Page 1

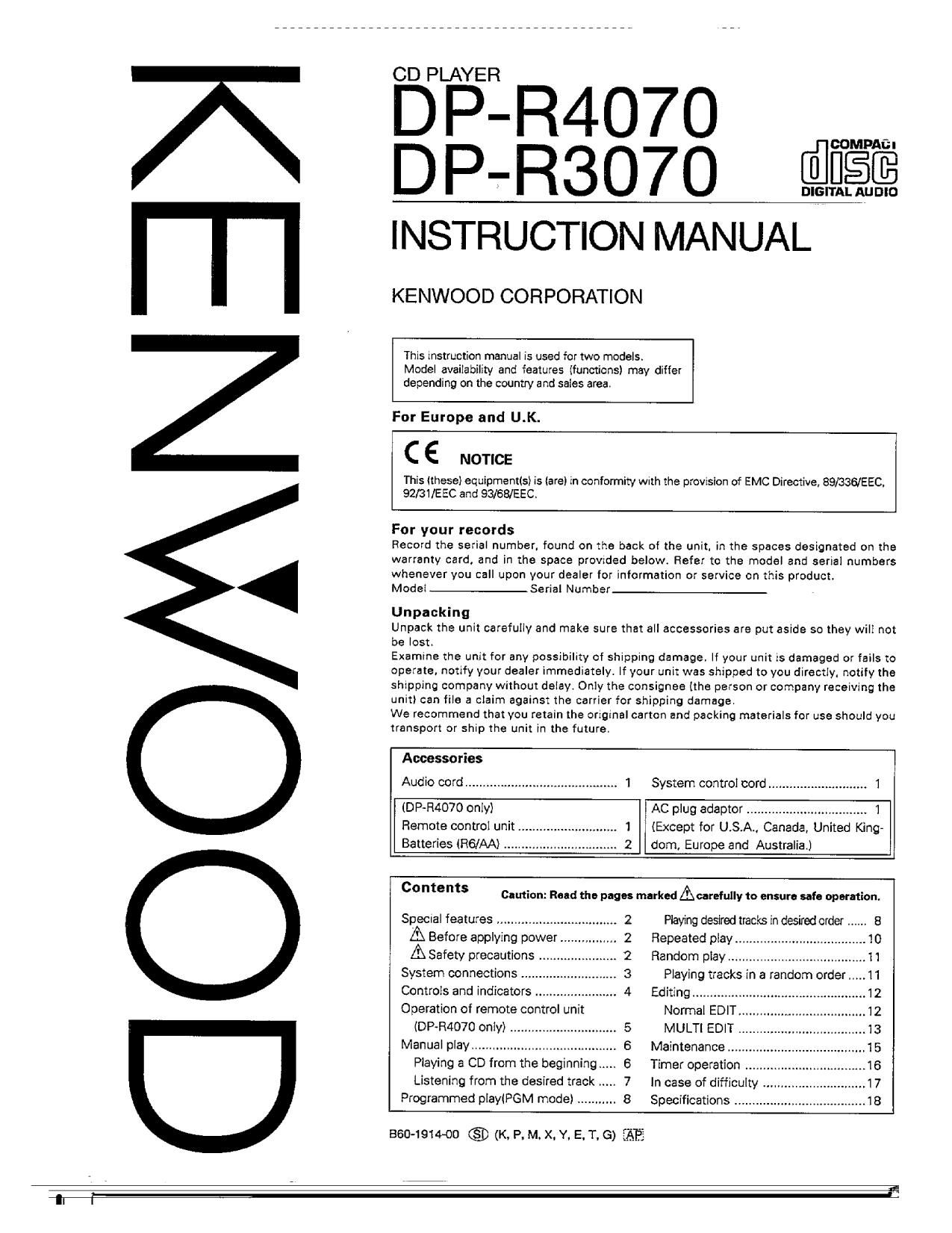

CD PLAYER

DP-R407O m
DP-R307O @1133.
INSTRUCTION MANUAL

KENWOOD CORPORATION

This :nstruction manual I5 used for two models.
Model availability and features (functions) may differ
depending on the country and sales area.

For Europe and UK.

c 6 NOTICE I

This (these) equipmentls) is (are) in conformity With the provrsion of EMC Directive, 89/336/EEC,
92/31/EEC and 93/SE/EEC.

For your records

Record the serial number, found on the back of the unit) in the spaces designated on the
warranty card, and in the space provrded below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service on this product.

Model _-Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they wilI not
be lost.

Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to
operate, notify your dealer immediately. If your unit was shipped to you directly) notify the
shipping company without delay. Only the consignee (the person or company receiving the
unit) can file a claim against the carrier for shipping damage.

We recommend that you retain the or:grna| carton and packing materials for use should you
transport or ship the unit in the future.

Accessories
Audio cord 1 System control cord ............................ 1
(DP-R4070 only) AC plug adaptor 1

Remote control unit
Batteries (Fifi/AA)

(Except for U.S.A.{ Canada, United King»
dom, Europe and Australia.)

N-l

Contents Caution: Road the page: marked Accrefully to ensure safe opunion.

Spectal I eatures ............... 2 Playing desired tracks in desired order ...... 8

A Before applying power 2 Repeated play. .10
Safety precautions ...... 2 Random play .11

I System connections .. 3 Playing tracks in a random order. .11
Controls and indicators. 4 Edi:lng................. .12
Operation of remote control unit Normal EDITW . 12
(DP-R4070 only) 5 MULTl EDIT .13

Manual play......... 6 Maintenance
Playing a CD from the beginning ..... 6 Timer operation ..
Listening from the desired track ..... 7 In case of difficulty

Programmed playIPGM mode) ........... 8 Specifications .....

SIS
.16
.17
.18

BED-191400 63) (K. P. M. x. v, E. T. G) i

Page 2

Special features

Adoption of mechanism that enables
disc changing even during Playback

...4 other discs can be changed not only when the unit is stopped. but also

- during playback. (Refer to page 7.]

Programmed play

The program mode allows you to play desired tracks in the order you

want to hear them. A maximum of 32 selections can be entered in
memory. (Refer to page 8.)

MULTI EDIT .

Before applying power

Several CDs can be edited and recorded on 1 tape. (Refer to page 13.I

A Caution: Read this section caretullyto ensure safe operatlon.

Units are designed for operation as follows.

U.SA. and Canada .. 120 V only
Australia ...... ..... 240 V only
Europe and U.K. ..230 V only
*Other countries ............... 110-120 / 220-240 V switchable

For the United Kingdom
Factory fitted moulded mains plug

1 . The malns plug containsa fuse. Forreplacement. use onlya 13-Amp
ASlA-approved (ESISBZI fuse.

2. The fuse cover must be refined when replacing; the fuse in the
moulded plug.

3. Do not cut orT' the mains plug from thIs eqqument. If the plug fitted
is not suitable for the power points in your home or the cacle is too
short to reach a power point, then obtain an appropriate safety
approved extehsIon lead or adaptor. or consult your dealer.

ll nonetheless the malns plug is cut off, remove the loss and
dispose of the plug Immediately, to avoid a possible shock hazard
by Inadvertent connection to the mains supply.

IMPORTANT

The wlras in the mains lead are coloured in accordance with the
following code.

Blue : Neutral

Brawn : Live
Do not connectthose leads to the earth terminal of a three-pin plug.

* AC voltage selection

The AC voltage selectorswitch on the rear panel is set tothe voltage
that prevails in the area to which the unit is shipped. Before
connecting the power cord to your AC outlet make sure that the
setting positIon of fins switch matches your lIne voltage. If not, it
must be set to your voltage in accordance with the followmg
direction.

AC voltage selector switch

{-
EDI

Mllfllzvl\<>|:m\

Move swttch lever to match your line voltage with
a small screwdriver or other pointed tool.

Note:
Our warranty does not cover damage caused by excessive line

voltage due to improper setting of the AC voltage selector sWItch.

Safety precautions

A Caution: Read this section ca reful Iy to ensure safe operation.

WARNING: TO PREVENT FIRE 0R ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

men or Euctmc sRocK
no not OPEN

A A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOL-
TAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE 0F SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS,

THE EXCLAMATICN POINT WITHIN AN EOUILATERAL TRIANGLE IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE ISERVIC.NGI lN-
STRUCTIONS [N THE LITERATURE ACCOMPANYING THE APPLIANCE.

Z DP-R407o/ DP-R307D (En)
