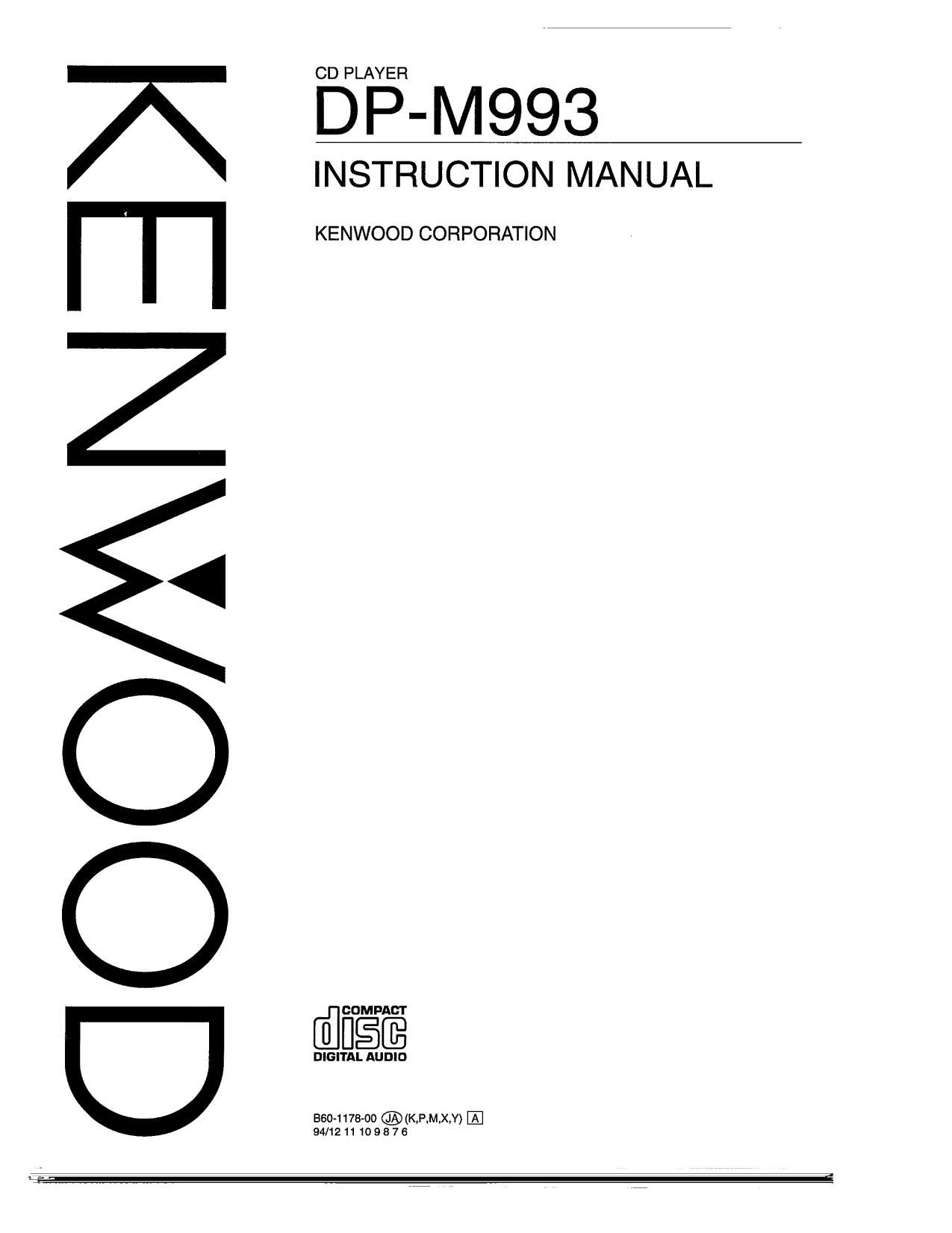

Kenwood DPM 993 Owners Manual

Page 2

Introduction

Your choice of this product indicates that you are a devotee to
excellence in sound reproduction.

We appreciate yourpatronage and take pride in the long tradition of
quality components that our company represents.

So that you can get the most out of your unit, we suggest that you
take the time to read through this manual before you hook up and
operate your system. This will acquaint you with operating features
and system-connection considerations so that your listening plea-
sure wiil be enhanced right from the start

You will notice that in all aspects of planning, engineering, styling.
operating convenience and adaptability We have sought to antici-
pate your needs and desires.

Keep this manual handy for future reference.

For your records

Record the serial number, found on the back of the unit, in the
spaces designated on the warranty card. and in the space provided
below. Refer to the model and serial numbers whenever you call
upon your dealer for information or sen/ice on this product.
Model Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessories are put
aside so they will not be lost.

Examine the unitforany possibility of shipping damage. If your unit
is damaged or fails to operate, notify your dealer immediately. If
your unit was shipped to you directly, notify the shipping company
without delay. Only the consignee (the person or company receiv-
ing the unit) can file a claim against the carrierforshipping damage.
We recommend that you retain the original carton and packing
materials for use should you transport or ship the unit in the future.

For the U.S.A.

CAUTION:

Use of controls or adiustments or performance of procedures other
than those specified herein rnzw result in hazardous radiation
exposure.

in compliance with Federal Regulations. following are reproduc-
tions of labels on. or inside the product relating to laser product
safety.

KENWOOD CORPORATION
SHIONOGI SHIBUYA BUILDING 1775,
2-CHOME, SHIBUYA, SHIBUYA-KU,
TOKYO, JAPAN

KENWOOD CORP. CERTlFlES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS No.21 CFR
1040.10, CHAPTER I, SUBCHAPTER J.

Location: Back Panel

The marking of products using lasers
(Except for some areas.)

CLASS 1

LASER PRODUCT

The label is attached to the rear panel and says that the component
uses laser beams that have been classified as Class 1.

It means that the unit is utilizing laser beams that are of a weaker
class. There is no danger of hazardous radiation outside the unit.

Accessories

0 Audio cord

0 System control cord -»--»-»-»-1

o Magazine ------
(with 6 disc trays)

For the unit with a European
AC plug in areas other than
Europe. (Except for some are
easl

Contents

Introduction -----------------
ABefore applying power
ASafety precautions --------------
AIMPORTANT SAFEGUARDS -
Before operation
System connections -
Controls and indicators -
Before playing CDs ------

mommtscocom

Caution: Read the pages marked A carefully to ensure safe operation.

Normal playback
Program playback -
Repeated playback
Random playback
Editing
Timer opera Ions -
In case of difficulty
Specifications ::::::

2 oer/1993 (En)

Page 13

h

I Loading a magazine

POWER switch __6

Magazine insertion slot EJECT Key
:3;
ll ll L l ===-
=.==
V
{3:222:23
=
a:

Pluss1 disc trey OPEN/CLOSE key

I Removing a magazine

V 1 r W
1 Press the POWER key to ON. 1 Press the POWER key to ON.
IDWER PDWEI
11W in nnm/ luv
2 Insert the magazine. 2 Remove the magazine.
0) (D Press the eject key.
Magazine
®
Press in umil it looks in place with a click. Hold the magi-nine in the center.
k 4 x J

I Loading a disc in the plus-1 disc tray

r
® Open the plus-1 disc tray.

® Place a disc on the tray. ©

Close the plus-1 disc tray.

gm was

Pius-i dlscvav

DP-M393 (En) 13
