Kenwood DPM 3370 Owners Manual

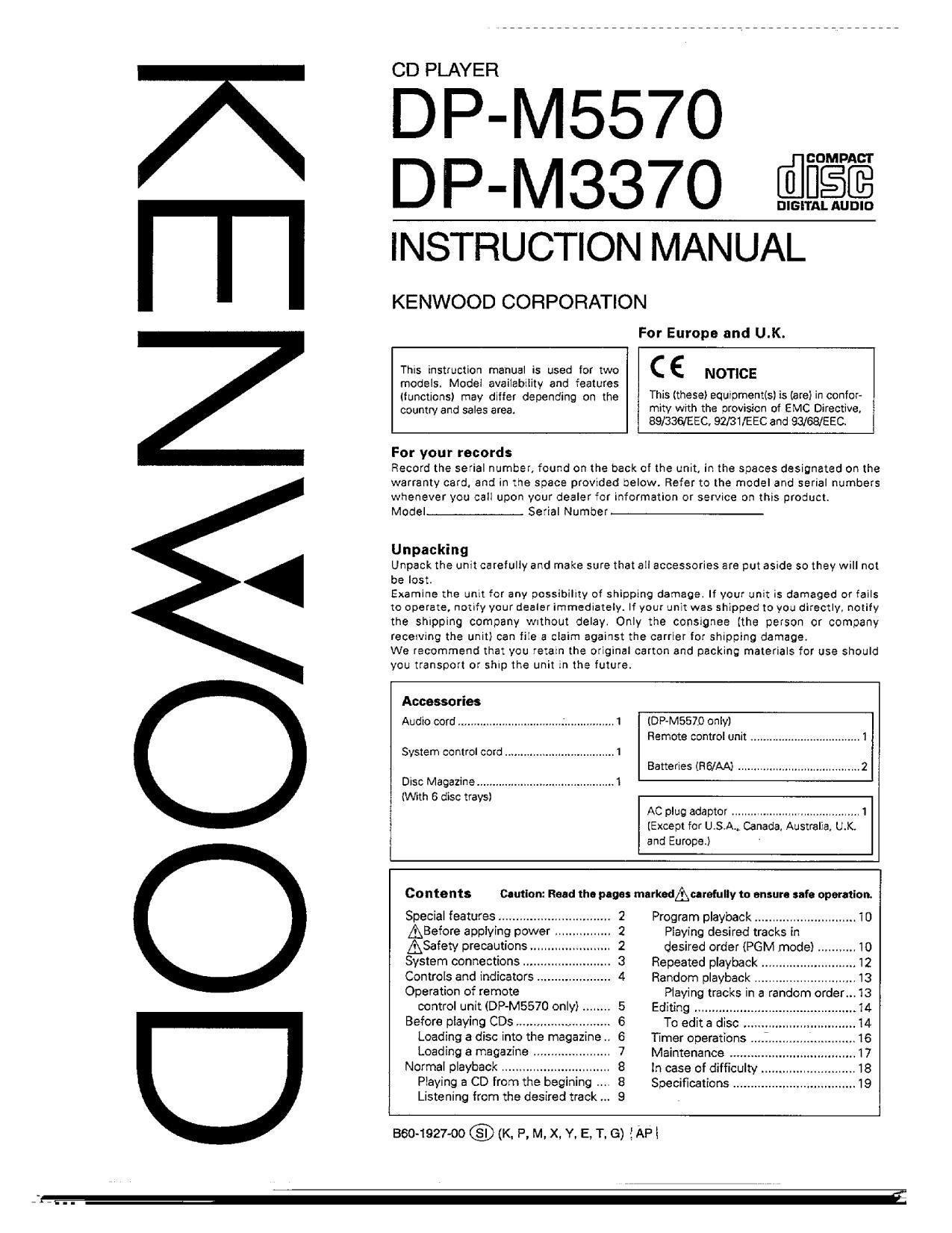

Page 1

IOOMNEDI

CD PLAYER

DP-M557O
DP-M337O Eli???

INSTRUCTION MANUAL

KENWOOD CORPORATION
For Europe and U.K.

This instruction manual is used for two c e NOTICE
models. Model availability and features

(functions) may ditter depending on the This (these) equwmemISI is (are) in confor-
country and sales area. mitv With the aroyision of EMC Directive,
89/336/EEC, 92/31/EEC and QSISBIEEC

For your records

Record the se'ial number, found on the back of the unit. in the spaces desipnated on the
warranty card. and in the space provided below. Refer to the model and serial numbers
whenever you call upon your dealer for Information or sen/ice on this product.
Model_.___._.__. Se'ial Number

Unpacking

Unpack the unit carefully and make sure that all accessories are put aSide so they will not
be lost.

Examine the unit for any oossibility of shipping damage It your unit is damaged or fails
to operate, notify your dealer immediately. II your unit was shipped to you directly, notify
the shipping company Without delay Only the constonee {the person or company
receiving the unit) can file a claim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials for use should
you transport or ship the unit .n the future.

Accessories
Audio cord ....... (DP-M5510 only)
Remote control unit .....
System control cord
Batteries (RB/AA) .,2
Disc Magazine.
(With 8 disc trays)
AC plug adaptor .....1
(Except for USA, Canada, Australia. U.K.
and Europe.)
Contents Caution: Read the pages markedfigcarefully to ensure safe operation.
Special features.... Program playback......... M10

ABeiore applying power
[fiSafety precautions V
System connections Repeated playback .
Controls and indicators Random playback
Operation of remote Playing tracks in a random orde ..
control unit lDP-M557O only). Editing
Before playing CDs . To edit a disc
Loading a disc into the magazine .. Timer operations
Loading a magazine Maintenance .
Normal playback ...... In case of difficulty .
Playing a CD from the begin 9 Specifications ............
Listening from the desired track

Playing desired tracks in
desired order (PGM mode)

eardrum

mwuaepwwmo

wmmximmm

360-1927-00 @ (K. P, M, x, Y, E, T. G) IAPI

Page 2

Special features

Utilizing a mechanism with a magazine that can
accommodate 6 disos + 1 disc tray .
Program playback

EDleunction

Random playback .

Before applying power

Units are designed for operation as follows.

USA. and Canada
Austral
Europe and
* Other countries

.. 120 V only
240 V only
..230 V only
110-120 I 220-240 V switchable

The CD player changer can playback 7 discs in succession.
The program mode allows you to play desired tracks of 7
discs in the order you want to listen to. A maximum of 20
selections can be entered in memory. (Refer to page 10.)
When recording tunes from one or more CD3 onto a tape,
this function edits the tunes to ensure that the tunes fit
within the specified tape length and that the last tune on
either side does not get cut off in the middle. (Refer to page
14-)

Random playback function that automatically selects disc
No. and track No. (Refer to page 13.)

A; Caution: Read this sectioncarefullyto ensureslfe operation.

For the United Kingdom
Factory titted moulded mains plug

1. The mains plug oontainsafuse. For replacement, use onlya I3-Amp
ASTA-aoproved (BSI 362} fuse.

2.The Iuse cover must be refitted when replacing the fuse In the
moulded plug.

3. Do not cut oil the mains plug from this equipment. ll the plug fitted
is not surtablefor the power points in your home, or the able is too
short to reach a power paint, then obtain an appropriate safety
approved extenSIon lead or adaptor, or consult your dealer
If nonetheless the mains plug is cut off, remove the fuse and
dispose of the plug immediately, to avoid a possible shock hazard
by inadvertent connection to the mains supply

IMPORTANT

The Wires in the mains lead are coloured In accordance With the
following code.

Blue : Neutral

Brown : Live
Do not connect those leads to the earth terminal Ola three-pin plug.

* AC voltage selection

The AC voltage selector switch on the rearpenal is set to the voltage
that: p'evails in the area to which the uni: is shipped. Before
connecting the power cord to your AC outlet make sure that the
setting pOSIIIOI'l ol this swrtch matches your line voltage. If not, it
must be set to, your voltage in accordance with me following
direcrion.

AC voltage selector switch

Move switch lever to match your line voltage with
a small screwdriver or other pointed tool.

Note:
Our warranty does not cover damage caused by excessive IIne
voltage due to improper setting cl the AC voltage selector switch.

Safety precautions

['3 Caution: Readthis section oarefullyto ensure safe operation.

WARNING: TO PREVENT FIRE on ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

_AUTION
mum: on K
IDT ova-i

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO OLALIFIED SERVICE PERSONNEL.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL. WITHIN AN EOUILATERAL TRIANGLE!
IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED " DANGEROUS VOL»
TAGE WITHIN THE PRODJCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EOUILATERAL TRIANGLE IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE ISERVlCING) IN-
STRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

2 DP-M557OIDP>M337D (En)

Page 19

Specifications

DP-M5570

[Format]

System Compact disc digital audio system
Laser .. Semiconductor laser
Number of channel ............ 2 channels
playing rotation ..... 200 rpm ~ 500 rpm (CLV)
[DIA Converters]

DI A conversion
Oversampling ..

[Audio]

Frequency response ..
Signal to noise ra
Dynamic range
Total harmonic rsto Ion + noise

. Less than 0.005%(31: 1 kHz)
More than 90 dB (at 1 kHz)
Unmeasurable limit

Output level/impe once

Fixed ................................. .. 2.0 V133 k9

Headphones output (maxJ .. 20 mWI32 :1
[General]

Power consumption .... .15 W

Dimensions ............. W 440 mm ml11- 5I16'l

H: 127 mm (5")

D: 373 mml14-11I1E")

Weight (not) ............................................. 5.3 kg [11.7 lb]

Note:

DP-M3370

[Format]
System
Laser
Number of channels
playing rotation ..

[DIA Converters]
DIA conversion
Oversampling ..

[Audio]

Frequency response ..
Signal to noise ra
Dynamic range.
Total harmonic distortion + noise

. Less than 0.005% (at 1 kHz)
More than 90 dB (at 1 kHz)

channel separation
Wow & flutter ..
Output levellimpe once

Compact disc digital audio system
Semiconductor laser
............... 2 channels
200 rpm ~ 500 rpm (CLV)

8 Hz - 20 kHz i 1.0 dB
. More than 96 dB
.. More than 94 dB

.. Unmeasurable limit

Fixed ........................................................ 2.0 V/3.3 k0

[General]

Power consumption
Dimensions W 440 mm (17-5/16")
H: 119 mm (4-11l16"l
D: 367 mm (14-7/16")
Weight (net) 5.2 kg (11.5 lb)

KENWOOD lollows a poiicy of contnuous advancements in development. For [his reason specifications r'ray be changed Without notice.

For the U.S.A.

The marking of products using lasers
[Except for some areas.)

GLASS 1
LASER PRODUCT

The IabeI is attached to the rear panel and says that the component
uses Iaser beams that have been ciassilied as Class 1.

It means that the unit is utiizing laser beams that are of a weaker
class, There Is no danger 07' hazardous radiation outsrde the unit.

CAUTION:

Use of controls or adjustments or performance of
procedures otherthan those specified herein may result
in hazardous radiation exposure.

In compliance with Federal ReguIations, following are
reproductions of labels on, or inside the product relating
to laser product safety.

I- _________________ _I

KENWOOD CORPORATION
2987-3, ISHIKAWA-CHO. HACHIOJI-SHI,
TOKYO. JAPAN

KENWOOD CORP] CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO. 21

I
|
I
I
|
1 CFR 1040.10, CHAPTER l, SUBCHAPTER .J.

Location: Back Panel

D M 5570/DP-M337O (En)

19
