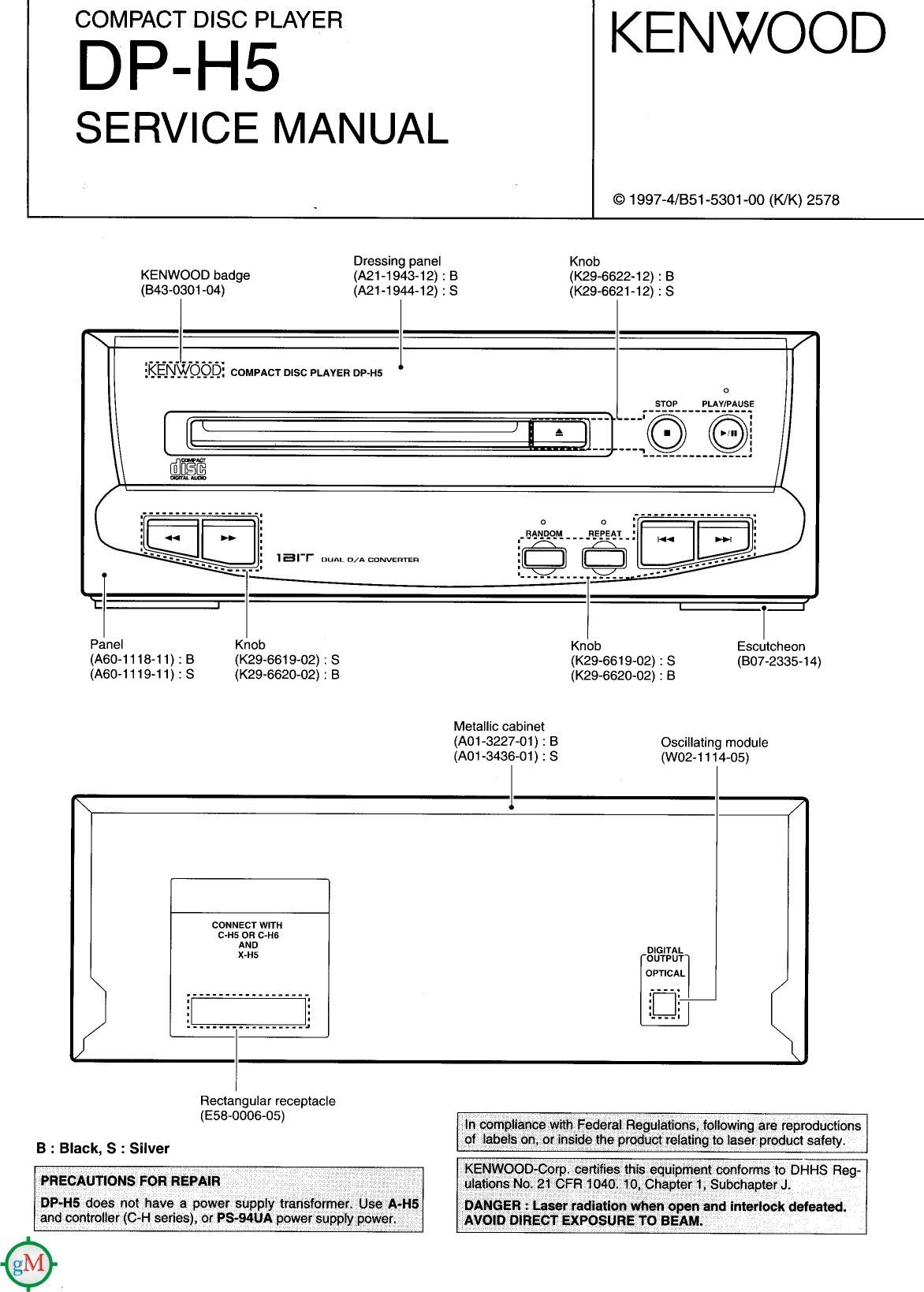

Kenwood DPH 5 Service Manual

Page 2

DP-H5

CONTENTS / ACCESSORIES / CAUTIONS

Contents
CONTENTS / ACCESSORIES / CAUTIONS ..... SCHEMATIC DIAGRAM ........................ 9
DISASSEMBLY FOR REPAIR / CONTROLS. EXPLODED VIEW ........ 12
CIRCUIT DESCRIPTION. PARTS LIST .................. 14
ADJUSTMENT. SPECIFICATIONS ........................................ Back cover
PC BOARD
System configuration
TUNER I CASSE1TE MD
SYSTEM EQUALIZER AMPLIFIER DECK CD PLAYER SPEAKER RECORDER
XD-6060 C-H51 A-H5 X-H5 DP-H5 LS-HG -
XD-6500 C-H5 A-H5 X-H5 DP-MH5 LS-H5 --
XD-6560 C-H51 A-H5 X-H5 DP-MH5 LS-H6 -
XD-8000 C-H6 A-HS X-H5 DP-H5 LS-H6 -
XD-8550 C-H6 A-H5 X-H5 DP-MH5 LS-HG -
XD-8560 C-H61 A-H5 X-H5 DP-MHS LS-H6 -
XD-GOOONV C-H5NV A-H5 X-H5 DP-H5 LS-H5 -
XD-6050NV C-H5/W A-H5 X-H5 DP-H5 LS-H5 -
XD-6550NV C-HSNV A-H5 X-H5 DP-MH5 LS-H5 -
XD-8050/W C-H6/W A-H5 X-H5 DP-H5 LS-H6 -
XD-8500/W C-HG A-H5 X-H5 DP-MH5 LS-H6 -
XD-9580MD C-H7 A-H5 DP-MHS LS-HB DM-H5
Accessofies
r FM indoor antenna ......... (1) 7 7 7 AM loop antenna Ac plug adaptor .............. (2)
(1'90-0801-05) : K,M type (T90-0820-05) (EDS-0115418)
Loop antenna stand (1)

r
I
(T90-0809-05) : T,E type I
I
I
l
l
I
I
I
I
I
I

Speaker cords ................ (2)
(E30A5156-05)

(J19-3645-05)

L ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, J

.
.
,

: a,
=

I a

l

I

I

.

Remote control unit ........ (1)
(A70-1110-05) : K,M type
(A70-1121-05) : T,E type

Parallel cord ................... (1)
(E30-2738-05)

Before transporting or moving this unit, carry out the following oper-
ations.

1. Turn the power ON. Then press the OPEN/CLOSE(:) key of the
CD player and take out all CD5.

DP-MH5 : Ensure that no CD is loaded in any of the DlSC1 to
DISCe trays by opening each of them.

2, Select the "CD" input and ensure that the following message is
displayed.

[1? NB

NEE

3. Wait for a few seconds then turn power off.

Cautions
Note related to transportation and movement Beware of condensation
(CD player) When water vapor comes into contact with the surface of cold

material, water drops are produced. If condensation occurs, correct
operation may not be possible, or the unit may not function correct-
ly. This is not a malfunction, however, and the unit should be dried.
(To do this, turn the POWER switch ON and leave the unit for sev-
eral hours.)

Be especially careful in the following conditions:

- When the unit is brought from a cold place to a warm place, and
there is a large temperature difference.

. When a heater starts operating.

- When the unit is brought from an air-conditioned place to a place
of high temperature with high humidity.

- When there is a large difference between the internal tempera-
ture of the unit and the ambient temperature, or in conditions
where condensation occurs easily.
