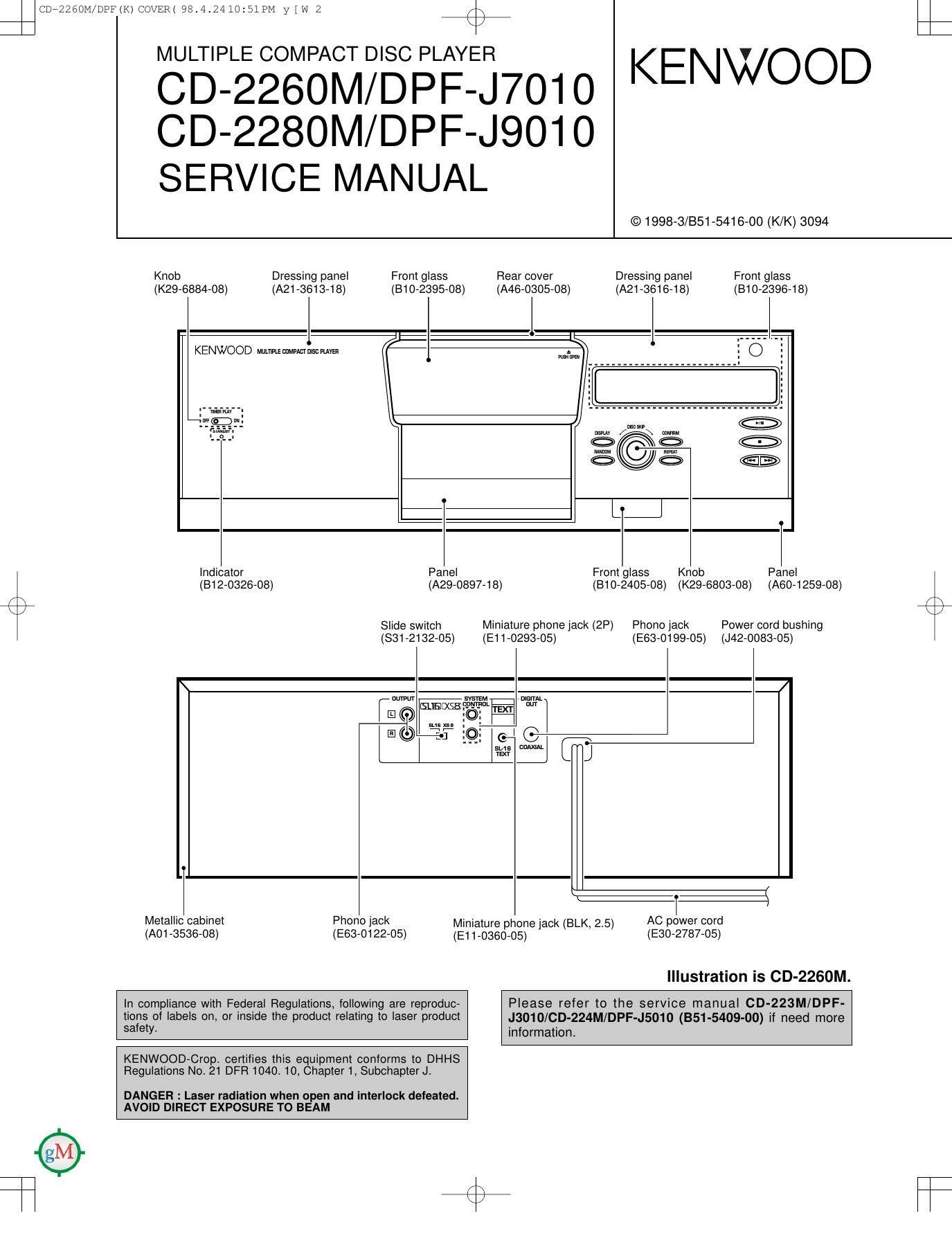

Kenwood DPFJ 7010 Service Manual

Page 1

CDi226OM/DPEWK) COVER( 98.4124 10:51 PM y (W 2 /\
K

MULTIPLE COMPACT DISC PLAYER V
CD-226OM/DPF-J701O KENWOOD

CD-228OM/DPF-J901O
SERVICE MANUAL

© 1998-3/851-5416-00 (K/K) 3094

Knob Dressing panel From glass Rear cover Dressing panel Front glass
(K29-6884-08) (A21 -361 3-1 8) (810-2395-08) (A46-O305-08) (A21 -3616-18) (B10-2396-18)

KENWOOD annzcumzmscmvzn

mm

Indicator Panel Front glass Knob Panel
(812-0326-08) (A29-0897-18) (B10-2405-08) (K29-6803-08) (A60-1259-08)
\ A
x J @
Slide switch Miniature phone jack (2P) Phono jack Power cord bushing
(831-2132-05) (E11-0293-05) (E63-0199-05) (J42-0083-05)

1
Metallic cabinet Phono lack Miniature phone jack (BLK, 25) AC power cord
(A01-3536-08) (E63-0122-05) (E1 14,360.05) (E30-2787-05)
Illustration is CD-2260M.
In compliance with Federal Regulations, following are reproduc- Please refer to the service manual CD-223M/DPF-
tions of labels on, or inside the product relating to laser product .1301 0/CD-224M/DPF-J5010 (351-5409-00) if need more
safety- information.

KENWOOD-Crop. certifies this equipment conforms to DHHS
Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM

Page 2

F

CD72260M/DPF(K) covsm 98.4.24 10:51PM y [w 3

+

CD-2260M/2280M/DPF-J7010/J9010

CONTENTS / ACCESSORIES

Contents
CONTENTS / ACCESSORIES ................................... 2 PC BOARD ............................................................... I1
EXTERNAL VIEW ................... ...3 SCHEMATIC DIAGRAM ..15
DISASSEMBLY FOR REPAIR ...4 EXPLODED VIEW ......... ..26
CONTROLS ................................................................ 5 PARTS LIST .............................................................. 28
CIRCUIT DESCRIPTION ...7 SPECIFICATIONS ...................................... Back cover
ADJUSTMENT ................
Accessories
r W

Audio cord ....................... (1) System control cord ........ (1) Communication cord ....... (1)

(Eso-osos-osi (E30-2816-05)

(A70-1 174-08) : RC-P0506
(A70-1175-08) : RC-P0306

Battery cover (A09-0374-08)

Remote control unit ........ (1) Batteries (Re/AA)

........ (2)

(E30-2861-05)

* Refer to parts list on page 28.

Beware of condensation

When water vapor comes into contact with the surface of cold
material, water drops are produced.

If condensation occurs, correct operation may not be possible,
or the unit may not function correctly.

This is not a malfunction, however, and the unit should be dried.
(To do this, turn the POWER switch ON and leave the unit as it
is for several hours.)

Be especially careful in the following conditions:

- When the unit is brought from a cold place to warm place, and
there is a large temperature difference.

- When a heater starts operating.

- When the unit is brought from an air-conditioned place to a
place of high temperature with high humidity.

- When there is a large difference between the internal tempera-
ture of the unit and the ambient temperature, or in conditions
where condensation occurs easily.

Note related to transportation and movement

Before transporting or mowng this unit, carry out the following op
eration:

1, Remove all discs from the carousel and close the door panel.
2. Confirm that the flashing "NO DISC display has changed to steady
lighting, and then switch off the power.

3. Wait a few seconds, then disconnect the power plug.

Operation to reset

The microcomputer may malfunction (impossib ity to operate,
erroneous display, etc.) when the connection cords are un-
plugged while power is ON or due to an external factor. In this
case, execute the following method to reset the microcomputer
and return it to normal condition.

Unplug the power cord from the power socket and plug the
power cord into the socket again.

To reset the registered contents

The registered contents for title name. music type, and best
selection can be reset by the following procedure.

Unplug the power cord from the power socket and. while
holding the l key depressed, plug the power cord into the
socket again.

Page 8

CDF226OM/DPF(K) COVER( 98.4.24 10:52 PM y [W 15

4%

CD-2260M/2280M/DPF-J7010/J9010

CIRCUIT DESCRIPTION

2. TEST MODE
INPUT KEY PROCEDURE DISPLAY
Insert the AC plug to INITIAL CONDITION INITIAL OK!!
the wall outlet with - Disc No.1 moves to the center and clamp it. MECH. INITIAL
pressing the SKIP- - Clear the memory of the SRAM.
DOWN key. - Door opens. INITIAL NG
- Set the switch of TIMER ON PLAY to ON. TIMER, NG
- Set the switch of SYSTEM CONTROL to X88. SER, NG
Insert the AC plug to CIRCUIT ADJUSTMENT TEST ON
the wall outlet with - Open the door and load the disc to the Disc No.1 in
pressing the REPEAT mechanismA. Also No.3 in mechanismB.
or CONTINUOUS - Close the door. The unit changes to test mode05" after
PLAYkey.(J9010) clamping the discs on both mechanismA and B.
Caution:Not clear the memory of the SRAM if pressed CONTINUOUS PLAY key.(J9010)
Insert the AC plug to CIRCUIT ADJUSTMENT TEST ON
the wall outlet with - Open the door and load the disc to the Disc No.1.
pressrng the REPEAT - Close the door. The unit changes to test mode05" after
key(J7010) clamping the disc.
PLAY/PAUSE Change the mode 05(tracking-on) and 03(tracking-off) alternately 05 1:23 03 2:34
by the PLAY key.
STOP Stop the function. 00
UP(mechanismA The pickup travels outwards. MOTOR FORWARD
only)(J9010)
UP(J7010) The pickup travels outwards. MOTOR FORWARD
DOWN(mechanismB The pickup travels inwards. MOTOR REVERSE
only)(J9010)
DOWN(J7010) The pickup travels inwards. MOTOR REVERSE
RANDOM Shows the result of self-adjustment.
07 EF/FB - 07 XXX2XXX
08 TG/FG 08 XXX2XXX
09 FE/RF 09 XXX2XXX
10 TE/VC - 10 XXX2XXX
Mode changes alternately by the RANDOM key. NG: blinking
DISPLAY - shows niagara mode
POWER Check the transmission signal(Disc No.1 and Track No.99) of the
remote controller.
OPERATION(J9010) Mechanism selection A or B.
REPEAT(mechanismA Playback PGM signal of the Track No.7,13,23,30,34 and 41 in
only)(J9010) the order. And release the test mode in both mechanisms.
REPEAT(J7010) Playback PGM signal of the Track No.7,13,23,30,34 and 41 in

the order. And release the test mode.

CONFIRM(J9010)

Release the test mode on both mechanisms.

CONFIRM(J7010)

Release the test mode.

(TIMER PLAY SW)

Check the switch position.

TIMER ON , TIMER OFF

by the PLAY key.

(SL16/XS8 SW) Check the switch position. 1GBIT, sBIT
(TxD port) Check the SL16-TEXT port.
TxD:H » RXD:L, TxD:L 4 RxD:H
Insert the AC plug to the CHECK THE MECHANISM JAMMING.
wall outlet With pressrng Clamp the Disc No1,2,100,50,200 and 199 in the order.
the UP key.
Insert the AC plug to the THE MECHANISM TEST MODE.
wall outlet with pressing Display shows NIAGARA until pressing any key.
the RANDOM key.
PLAY/PAUSE Change the mode 05(tracklng-on) and 03(tracking-off) alternately 05 1:23 03 2:34
