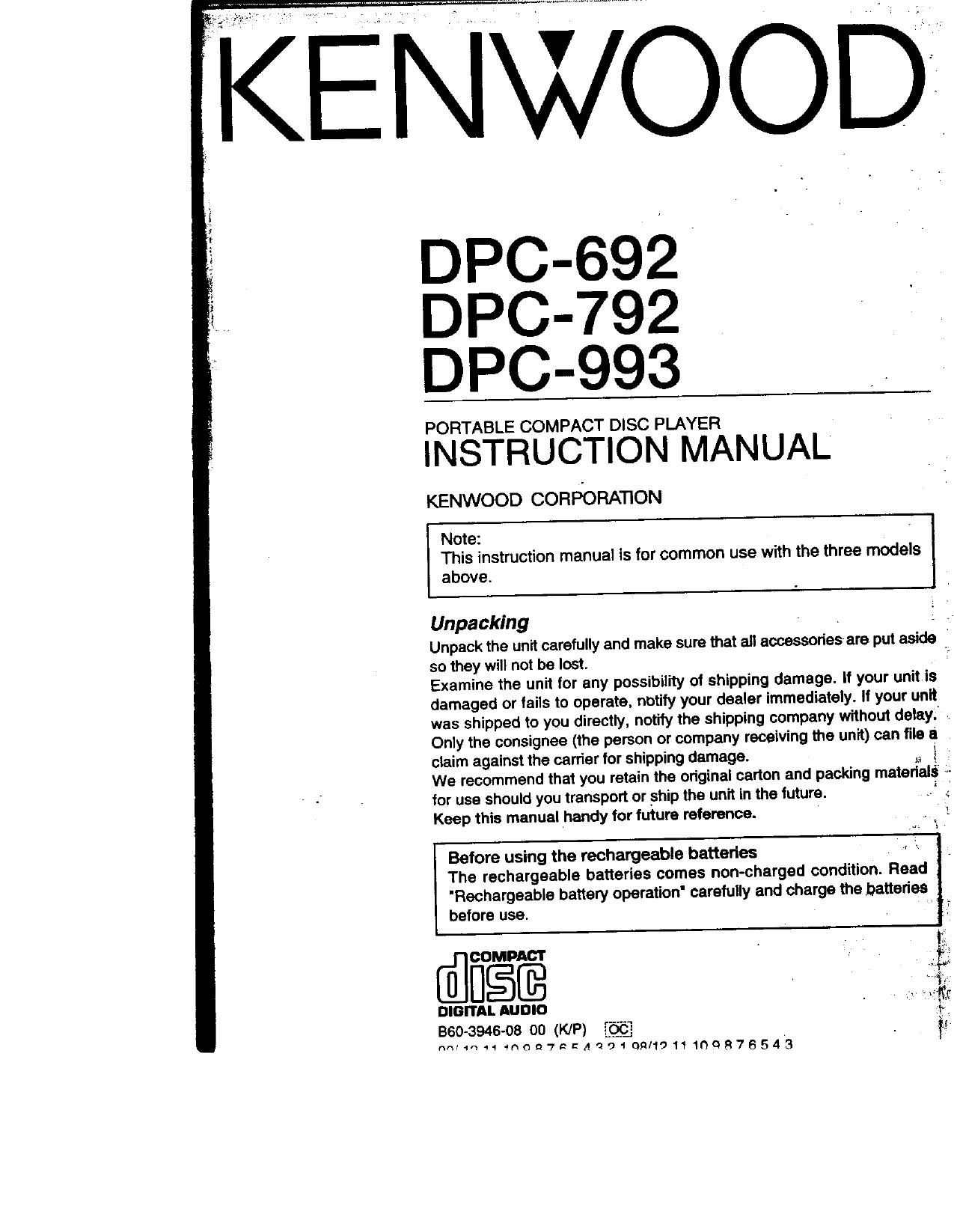

DPC-792
DPC-993

PORTABLE COMPACT DISC PLAYER

INSTRUCTION MANUAL

KENWOOD CORPORATION

Note:
This instruction manual is for common use with the three models
above.

Unpacking , ,
Unpack the unit carefully and make sure that all accessories are put aside .I
so they will not be lost. '
Examine the unit for any possibility of shipping damage. If your unit is
damaged or fails to operate, notify your dealer immediately. If your unit
was shipped to you directly, notify the shipping company without delay. .
Only the consignee (the person or company receiving the unit) can file a
claim against the carrier for shipping damage. A; i
We recommend that you retain the original carton and packing materials .,
for use should you transport or ship the unit in the future. Q
Keep this manual handy for future reference. , . 1

Before using the rechargeable batteries ' *
The rechargeable batteries comes non-charged condition. Read
"Rechargeable battery operation' carefully and charge the batteries
before use.

cOMPAcr
[BIB ' it
DIGITAL AUDIO ' " I};
860-3946-08 oo (KIP) 1166:. I'

ran/«nu 4n0n7tch'191OR/191f100876543

Page 2

133 r. .

Format

........... Compact disc digital audio system

System .......................................................
Laser ............................................................................................. Semiconductor laser .
Audio . .
Frequency response .................................................................... 20 Hz to 20 kHz. :3 dB A
PHONES outpuyt level (169, 1 kHz) . . 8 mw + 8 mW
Line output/Impedance ................................................................................... 0.55 Vrmslt kn
(Power supply , - .
External DC supply ...................................
,_7 Rechargeable batteries NB-88) x 2 or 4 .
i Commercially-available alkaline batteries (LBS/AA) x 2 or 4 ......

Battery life (continuous repeat playback) ,
' (Figures inside parentheses show the performance when the D.A.S.C. is ST or HI.)

; Commercially-available alkaline batteries (LRG/AA) x 2 ...... Approx. 12 (9.5) Hours
i Commercially-available alkaline batteries (LR6/AA) x 4 .. .. Approx. 25 (20) Hours 5
Rechargeable batteries (NB-88) x 2 ........ Approx. 5.5 (4.5) Hours
i Batteries (LR6/AA) x 2 and (NB-88) x 2 ...... Approx. 18 (15) Hours

132 mm x 32.5 mm x153 mm
(5 - 3/16' x1 -1/4" x 6')

Dimensions (W x H x D) (DPC-692/DPc-792)

Dimensions (W x H x D) (UPC-993) .......................................... 132 mm x 29.5 mm x 153 mm
' (5-3/16'x1-3/16'x6')-
Weight (net) (DPC-692lDPC-792) ........................................................................ 272 g (9.6 oz)"
Weight (net) (UPC-993) ..................................................................................... 260 g (9.2 oz) K
» . t
Note:

KENWOOD iollows a policy of continuous advancements in development. For this reason specifications may be L
changed without notice. . §

Accessories DPc-692 UPC-792 DPC-993
AC adaptor 1 . . . 1 - 1
Headphones 1 1 1
Battery (for Noise canceling headphones) - ,- 1
Car battery adaptor 1 1 -
Car cassette adaptor 1 _ 1 -

The standard accessories vary depending on the model of the unit. The accessories which are not standard :-
optionally available. For details. please consult your dealer. -

V For your records '
Record the serial number, found on the back panel of the un , "
the spaces designated on the warranty card. and in the s- . '
provided below. Refer to the model and serial numbers , : . ,
you call upon your dealer for information or service on .. 1'
product. ,, -

Model

Serial Number _._..._.._.._. v; ,
