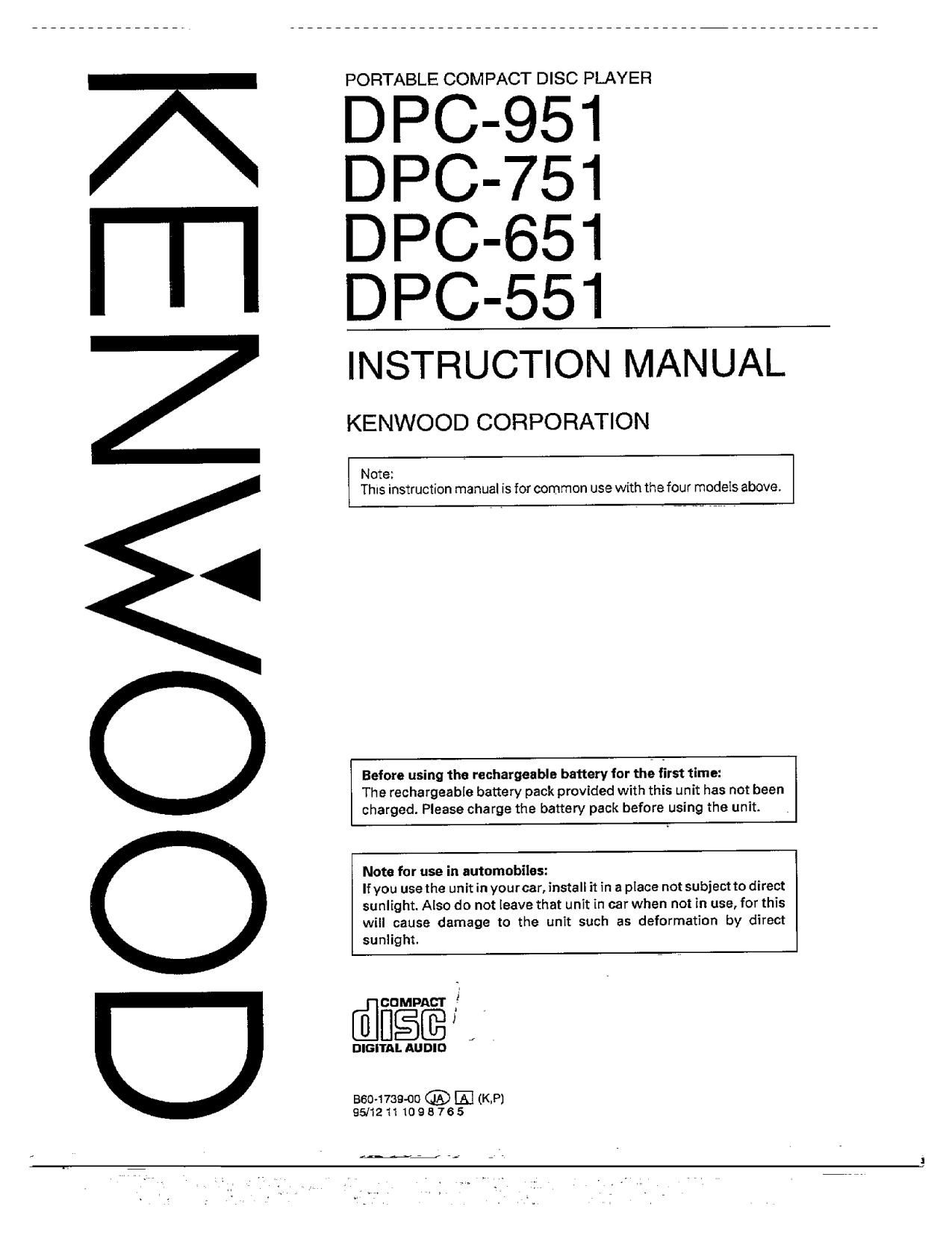

Page 1

PORTABLE COMPACT DISC PLAYER

DPC-951
DPC-751
UPC-651
DPC-551

INSTRUCTION MANUAL
KENWOOD CORPORATION

Note:
This instruction manual is for common use with the four models above.

Before using the rechargeable battery for the first time:
The rechargeable battery pack provided with this unit has not been
charged. Please charge the batten/ pack before using the unit.

Note for use in automobiles:

If you use the unit in yourcar, install it in a place not subject to direct
sunlight. Also do not leave that unit in car when not in use, for this
will cause damage to the unit such as deformation by direct
sunlight.

jGOMPAGT

DIGITAL AUDIO

BSD-1739410 (E [E (K,P]

SEE/12111095765

Page 2

, _1BeforeapiziyinsIEOWEL4:"7'3': J?

For the U.S.A. and Canada

Important!
Units shipped to the U.S.A. and Canada are designed for operation
on 120 volts AC only.

CAUTION: To PREVENT ELECTRIC SHOCK Do NOT USE
THE Ar: PLUG wrrH AN EXTENSION CORD. RECEPTACLE on
OTHER OUTLET UNLESSTHE BLADES CAN BE ELLLLYINSEBTEB
To PREVENT BLADE EXPOSURE. '

For the U.S.A.
FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is made.

NOTE:

This equipment has been tested and found to comply With the limits for a CLASS B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation This equipment may cause harmful interference to radio communications, if it is not installed
and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception. which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:

- Reorient or relocate the receiving antenna.

- increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/W technician for help.

For CANADA
DOC REGULATION

"This digital apparatus does not exceed the CLASS B limits for radio noise emissions from digital apparatus as
set out in the radio interference regulations of the Canadian Department of Communications,"

Lee-Siamweeutions ______.-___, L.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

WARNING NOTICE:

(Except for some areas). IN MOST CASES IT IS AN lNFRlNGEMENT or COPY-
RIGHT TO MAKE COPIES OF TAPES OR DISCS WITH-
OUTTHE PERMISSION OFTHE COPYRIGHT OWNERS.
CLASSI ANYONE WISHING TO COPY COMMERCIALLY AVAIL-
LASERPRUDUL'T ABLE TAPES OR DISCS SHOULD CONTACT THE ME-

CHANICAL COPYRIGHT PROTECTION SOCIETY LIM-
This label is attached to the bottom panel and sa 5 that the ITEg OR THE PERFORMING RIGHTS SOCIETY UM
component uses laserbeams that have been classrfl as Class I . '
It means that the unit is utilizing laser beams that are of a weaker
class, There is no danger of hazardous radiation outside the unit.

The marking of products using lasers

Page 3

7bontents' ._ _. *

firiééiai featufé5;7

Caution: Read the pages marked A carefully to ensure safe operation.

[13 Before a i in ower ....................... 2

Portable anywhere pp y g p
Compatibility with three power supplies including dry cell
batteries, car battery and mains power outlet expands
the place of your music entertainment.

ASafety precautions .............................. 2
A IMPORTANT SAFEGUARDS .............. 4

Accessories ............................................. 5

Easy-to-operate, convenient remote control power supply ___________________________________________ 8
A convenient remote control is available as a standard

accessory °r as 3 0mm Controls and indicators ............................ 9
L777e7777 _ 77 .c7_

Preparation ................. 11

Guard against sound skips: D.A.S.C. Playback from the first track .................. 12

A digital memory prevents sound skips due to vibration

or shocks on the unit. Sound skip guard functionlDrA.S,C.) 14

To .er gm

" W ' " ' " Playbackfrom desiredtrack ................... 15

Al (Artificial Intelligence) edit playback Programming tracks in desrred order ..... 16
All of the tracks one disc can be played ina limited period

during commuting or on the way to school. AI ed playbaCk """""""""""""""""""" 19

luv

haw , - - .. -» u , 7. Various playback features ...................... 20
Playback with desired tone .................... 21
Versatile playback features
Various playback operations including the programming HOLD/RESUME switch ......................... 22
of tracks in desiredorder, repeated play, shuffle play and
scan plav are DOSSIble- Listening through speaker system
3777 _77 74.77 77 7.7 U - .
(optional) ,. ................................. 23
DSP controlling the tone and live feeling L'Stemng through car memo """"""""" 24
The DSP (Digital Sound Processor) allows you to select ~
desired tone setup as well as to reproduce live feeling in Mamtenance """""""""""""""""""""" 25
r: rt hall . . .
me 5 in case of difficulty ................................. 26
Specifications ......................................... 27
Convenient features

The Hold feature prevents erroneous operation even
when a key is pressed while the unit is in a bag and the
Resume feature memorizesthepcsition where playback
was last stopped. The unit can also be connected to an
optional speaker system,

Page 4

A Caution: Head this page

.alMEOBTAlVTFAFEEiQ395.- W

$919.8 film-W me

Please read all of the safety and operating instructions before operating this unit. For best results,
follow all warnings placed on the unit and adhere to the operating and use instructions. These
safety and operating instructions should be retained for future reference.

1.Power sources - The unit should be con-
nected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.

2. Power-cord protection - Power-supply cords
should be routed sothattheyare notlikely to be
walked on or pinched by items placed upon or
against them, pay particular attention to cords
at plugs, convenience receptacles, and the
point where they exit from the unit.

3.Enclosure removal - Never remove the en-
closure. If the internal parts are touched acci-
dentally. a serious electric shock might occur.

4. Drop - Do not drop the unit or apply strong
shockto it. (Damage due to dropping the unit is
not covered by the warranty.)

5.Ventilation - Avoid hindering the ventilation
of the unit by covering it with a cloth, etc.

B.Abnormal smell - If an abnormal smell or
smoke is detected, immediately turn the power
OFF and pull out the power cord. Contact your
dealer or nearest service center.

7.Heat - Avoid placing the unit under direct
sunlight or near a source of heat such as
heating equipment. Particularly, never leave it
in an automobile or on the dashboard.

8.Temperature - The unit may not function
properly if used at extremely low, or freezing
temperatures. The ideal ambient temperature
is above +5°C (41°F),

9. Water and moisture -- The unit should not
be used near water - for example, near a
bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement, or near a swimming pool,
etc.

10.

11.

12.

13.

14.

15.

16.

Dust and moisture - Avoid places where is
dusty or where the humidity is high.

Vibrations - Avoid placing the unit on an
unstable place such as a shelf or in a place
subject to vibrations.

Magnetic fields - Keep the unit away from
sources of magnetic fields such as TV sets.
speaker systems, radios, motorized toys or
magnetized objects.

Cleaning - Do not use volatile solvents such
as alcohol, paint thinner, gasoline, or benzine,
etc. to clean the cabinet. Usea clean dry cloth.

Nonuse periods-The power cord of the unit
should be unplugged tromthe outlet when left
unused for a long period of time.

Damage requiring service-The unitshould
be serviced by qualified sen/ice personnel
when:

A. The power-supply cord or the plug has
been damaged; or

B. Obiects have fallen, or liquid has been
spilled into the unit; or

C. The unit has been, exposed to rain; or

D. The unit does not appear to operate nor-
mally or exhibits a marked change in perform-
ance; or

E. The unit has been dropped, or the enclo-
sure damaged.

Servicing --The user should not attempt to
service the unit beyond that described in the
operating instructions. All other servicing
should be referred to qualified service person-
nel.

ln case of abnormality, immediately press the open knob to turn the power OFF, and unplug the AC
adapter from the power outlet. Then please contact your nearest KENWOOD service center.
