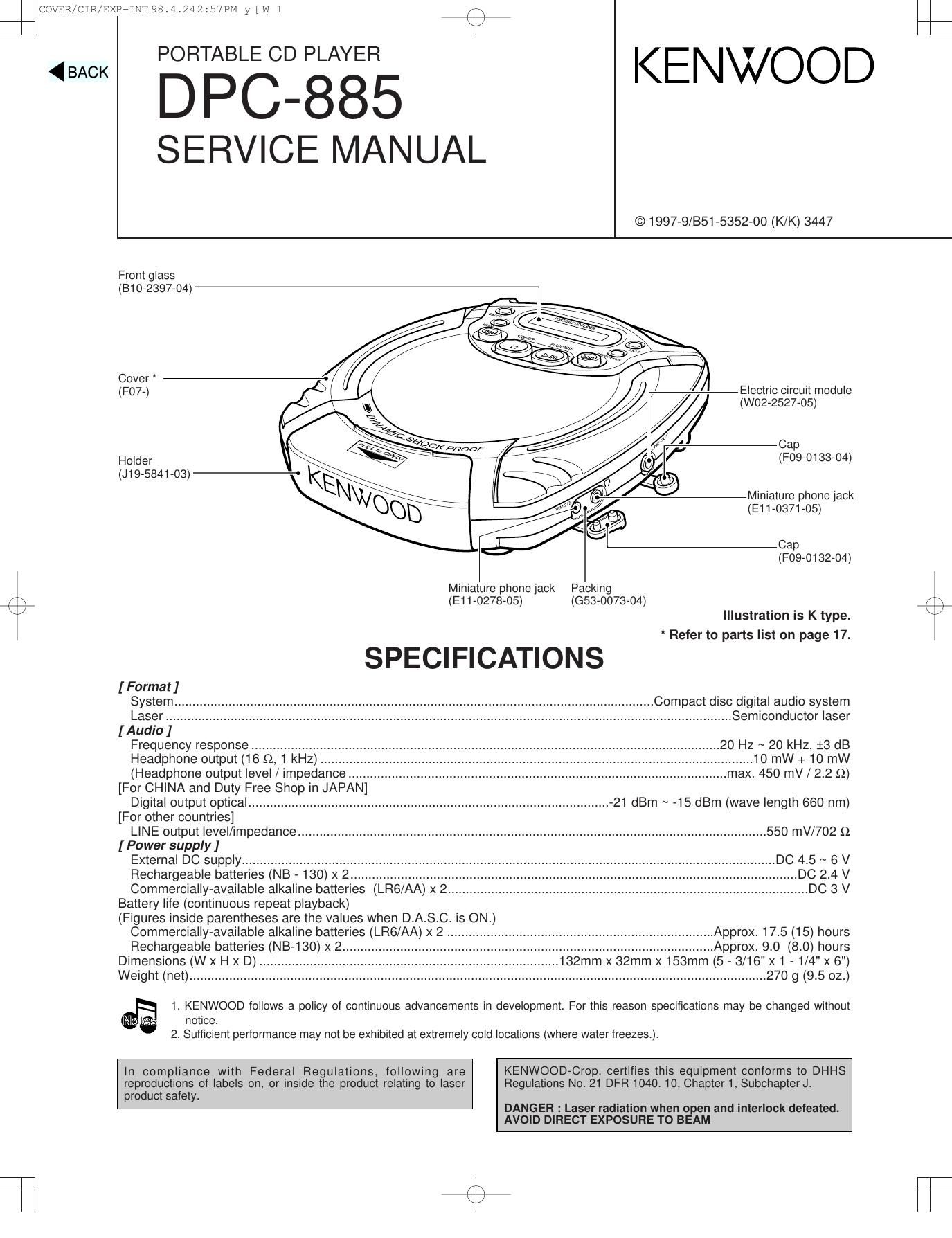

Page 1

/'\

COVER/CIR/EXPiLNT 98.4.24Zzb7PM y [W l \
\. 7

BACK PORTABLE CD PLAYER KENWOOD
D P C-885

SERVICE MANUAL

© 1997-9/351-5352-00 (K/K) 3447

Front glass
(810-2397-04)

Cover
(FO7-) / Electric circuit module
/ (W02-2527-05)
/
Holder

(J19-5841-03)

, ' Cap
EEK (F09-0133-04)

Miniature phone Jack
(E11-0371-05)

7 ¥Cap

(1:09-01 32-04)

Miniature phone jack Packing
(E11-0278-05) (653-0073-04)
Illustration is K type.

* Refer to parts list on page 17.

SPECIFICATIONS

[ Format]
System. Compact disc digital audio system
Laser ..................... Semiconductor laser

[Audio]
Frequency response
Headphone output (16
(Headphone output level / impedance
[For CHINA and Duty Free Shop in JAPAN]

.20 H2 ~ 20 kHz, :3 dB
....... 10 mW + 10 mW
max. 450 mV / 2.2 Q)


Digital output optical .................................................................................................... -21 dBm ~ -15 dBm (wave length 660 nm)
[For other countries]

LINE output level/impedance .................................................................................................................................. 550 mV/702 Q
[ Power supply ]

DC 4.5 ~ 6 V
DC 2.4V
..DCBV

External DC supply .............................
Rechargeable batteries (NB » 130) x 2..
Commerciallyavailable alkaline batteries (LR6/AA) x 2..

Battery life (continuous repeat playback)

(Figures inside parentheses are the values when D.A.S.C. is ON.)
Commerciallyavailable alkaline batteries (LR6/AA) x 2 ..
Rechargeable batteries (NB-130) x 2 ...............................

Dimensions (W x H x D).

Weight (net) ....................

...Approx. 17.5 (15) hours
...Approx. 9.0 (8.0) hours
132mm x 32mm x 153mm (5 - 3/16" x1 -1/4"x 6")
......................................................... 270 g (9.5 oz.)

(MR 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without
notice.
2. Sufficient performance may not be exhibited at extremely cold locations (where water freezes).

In compliance with Federal Regulations, following are KENWOOD-Crop. certifies this equipment conforms to DHHS
reproductions of labels on, or inside the product relating to laser Regulations No.21 DFR 1040. 10, Chapter 1, Subchapter J.
product safety.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM

Page 2

COVER/CIR/EXPiINT 98.4t2421t77PM y [W 2 \
K

CONTENTS/ACCESSORIES

CONTENTS
SPECIFICATIONS ...................
CONTENTS/ACCESSORIES ..
CIRCUIT DESCRIPTION ..


Top cover PC BOARD .......................
.. SCHEMATIC DIAGRAM
EXPLODED VIEW .....

ADJUSTMENT ...................... PARTS LIST ...............
Accessories
Stereo headphone ................. (1) AC adapter ............................ (1) Remote control ...................... (1) \
(W01-0923-05) : M2 (woe-oess-os) : E (A70-1163-05) : MX
, (W08-0659-05) : T (A70-1164-05) : KPET
(woe-oeeo-os) :x
(W08-0667-05) : M
(W09-1251-05) : KP
Rechargeable battery ........... (2) Stereo headphone ................. (1) AC plug adapter .................... (1)
(W09-1237-05) (W01-0940-05) : KPMTEX (E03-0115-05) : M,M2
% 1»
Carrying case ........................ (1)
(W01 -0939-05)
\ J
