Kenwood DPC 795 Service Manual

This is the 9 pages manual for Kenwood DPC 795 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 9
Kenwood DPC 795 Service Manual

Extracted text from Kenwood DPC 795 Service Manual (Ocr-read)


Page 1

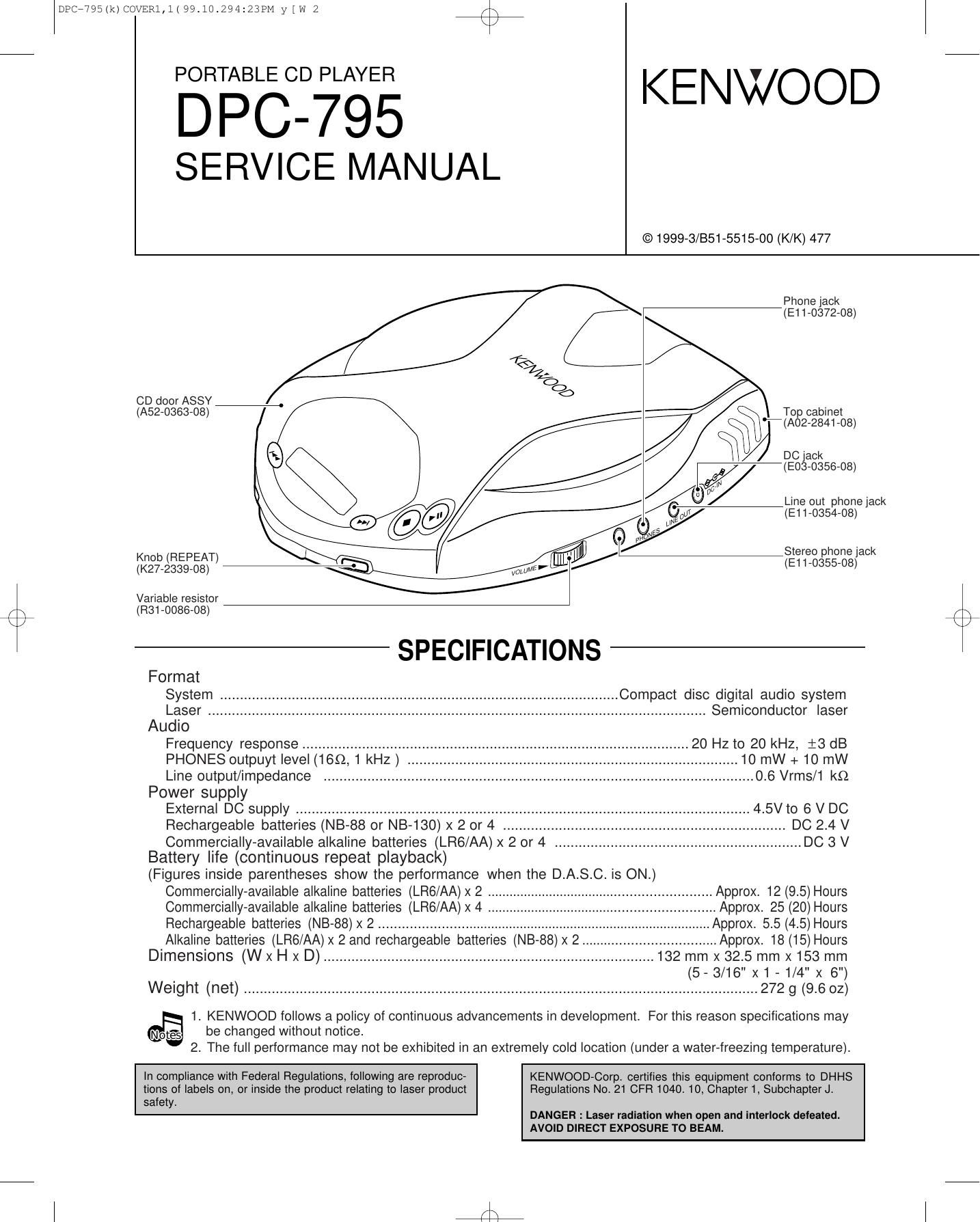

DPCF795(k)COVER1,l( 99.10.294:23PM y [W 2 /\

DPC-795 KENWOOD

SERVICE MANUAL

© 1999-3/351-5515-00 (K/K) 477

Phone jack
(E1 t-0372-08)
f
2;
o
%
CD door ASSY 4.

(A52-0363-08) Top cabinet
W H(A02-2841-08)
w ) DC jack

Line out phone jack
(E11-0354-08)

p
T-Stereo phone jack

(E11-0355-08)


Knob (REPEAT)
(K27-2339-08)

Variable resistor

/\ (R31-0086-08) .
k / \
SPECIFICATIONS
Format
System ....Compact disc digital audio system
Laser ................................ Semiconductor laser
Audio

..20 Hz to 20 kHz, i3 dB
..... 10 mW + 10 mW
......... 0.6 Vrms/1 k9

Frequency response.
PHONES outpuyt leve
Line output/impedance

Power supply
External DC supply
Rechargeable batteries (NB-88 or NB 130) x 2 or 4 ..
Commercially-available alkaline batteries (LR6/AA) x 2 or 4 ..

Battery life (continuous repeat playback)

(Figures inside parentheses show the performance when the D.A.S.C. is ON.)
Commercially-available alkaline batteries (LRG/AA) x 2
Commercially-available alkaline batteries (LR6/AA) x 4
Rechargeable batteries (NB-88) x 2 .....
Alkaline batteries (LRG/AA)X 2and rechargea e atterles ( )x ..

Dimensions (W x H x D) ...................................................................

Weight (net)
(:5 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may
Nates


.. 4.5Vto 6 VDC
. DC 2.4 V
..... DCSV

..Approx. 12(95) Hours
...Appro><. 25 (20) Hours
.Approx. 5.5 (4.5) Hours
...Appro><. 18(15) Hours
132 mm x 32.5 mm x 153 mm

(5- 3/16" x 1 - 1/4" x 6")
272 g (9.6 oz)

be changed without notice.
2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).

In compliance with Federal Regulations, following are reproduc- KENWOOD-Corp. certifies this equipment conforms to DHHS
tions of labels on, or inside the product relating to laser product Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
safety.

DANGER : Laser radiation when open and Interlock defeated.

AVOID DIRECT EXPOSURE TO BEAM.

Page 2

DPCi795(k)COVER1,l( 99.10.294123PM y [W 3

DPC-795

ACCESSORIES

Note: Please refer to Service ManuaI(BS1-5451-00) about microprocessor.

AC adapter ..................................... (1)
(W08-0679-08) : X
(W08-0675-08) : M

Rechargeable banery (NB-88) ....... (1)
(W09-1240-05) : M
(W09-1235-05) :x

0

Innerphone ..................................... (1) Remote control ............................... (1)
(wo1-0923-05) (A70-1190-05) : M
(A70-1171-05) :x

AC plug ........................................... (1)
(E03-0115-05) : M

rx
\/

Page 3

DPCi795(K)PCB2( 99.10.296z43PM y [w 1

PC BOARD (Component side view)

VOLUME REMOTE

Refer to the schematic diagram for the value of resistors and capacitors.

HOLD
ON OFF

PHONES

OPI' OUT
LINE OUT

DCIN

PC BOARD (Foil side View)

HOLD
ON OFF

DC IN OPI' OUT PHONES REMOTE
LINE OUT

VOLUME
