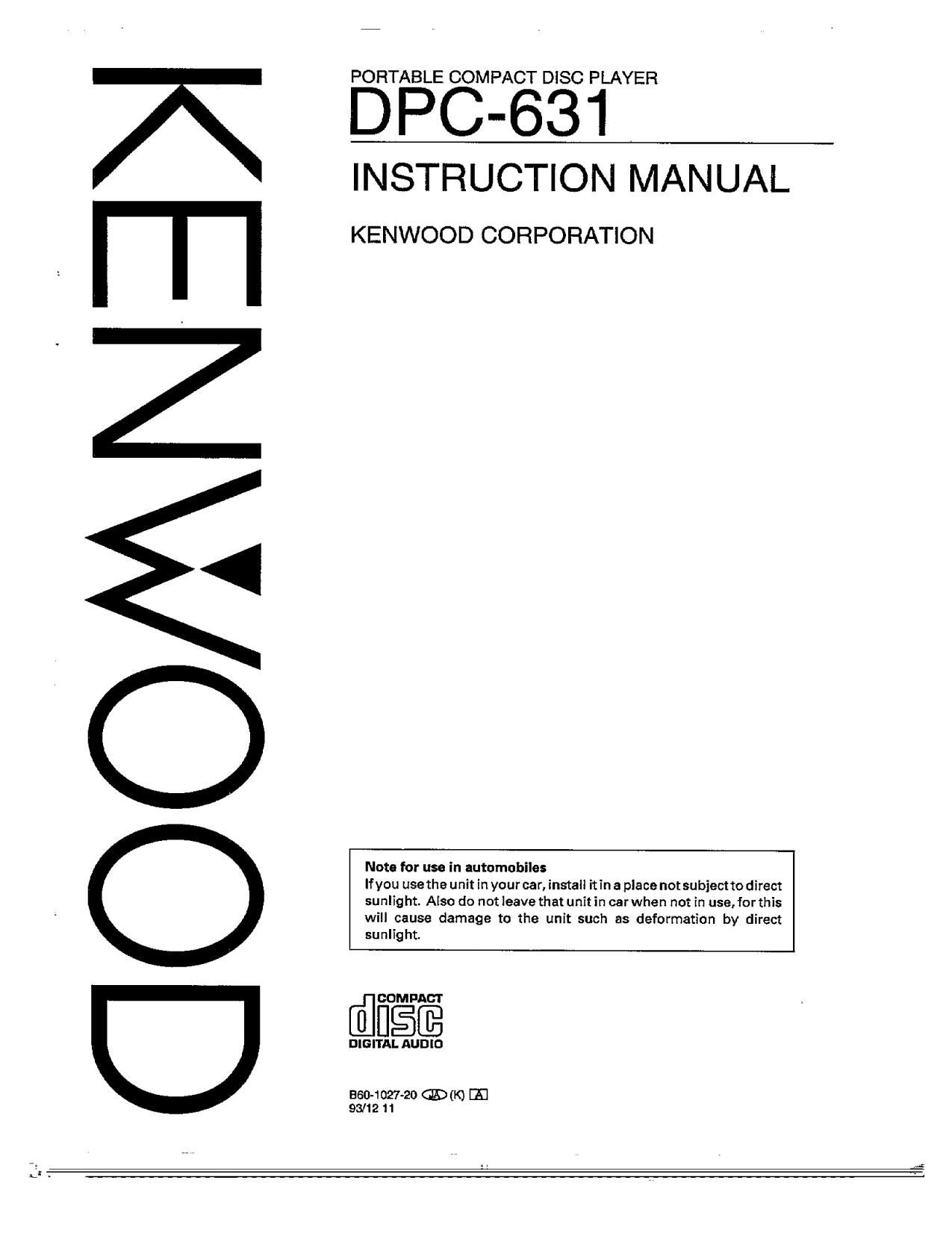

Page 1
ICC/ANEDI
PORTABLE COMPACT DISC PLAYER
DPC-631
INSTRUCTION MANUAL
KENWOOD CORPORATION
Note for use in automobiles
lfyou usethe unit in your car, install it in a place not subiectto direct
sunlight. Also do not leave that unit in carwhen not in use, forthls
will cause damage to the unit such as deformation by direct
sunlight.
filfiéfi
DIGITAL AUDIO
BSD-1027-20 @(K) III
93/12 1 1
Page 2
Introduction
Your choice of this product indicates that you are a devotee to excellence in sound reproduction. We appreciate your
patronage and take pride in the long tradition of quality components that our company represents.
So that you can get the most out of your unit, we suggest that you take the time to read through this manual before
you hook up and operate your system. This will acquaint you with operating features and system-connection
considerations so that your listening pleasure will be enhanced right from the start. You will notice that in all aspects
of planning, engineering. styling, operating convenience and adaptability we have sought to anticipate your needs
and desires.
Keep this manual handy for future reference.
For your records
Record the serial number. found on the bottom of the unit. in the spaces designated on the warranty card, and in
the space provided below. Refer to the model and serial nu mbers whenever you call upon yourdealer for information
or service on this product.
Model_-_Serial Number
Unpacking
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit
for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If
your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person
orco mpany recelving the unit) can file a claim against the carrierforshipping damage. We recommend thatyou retain
the original carton and packing materials for use should you transport or ship the unit in the future.
Accesorries
AC adaptor 1 Card remote Rechrgeable battery ..... 2
control unit ..... 1
Car cassette adaptor ..... 1 Car battery adaptor ..... 1
Contents Caution: Read the pages marked A carefully to ensure
safe operation.
Introduction 2 Programmed playback ........ . 16
A Before applying power .. 3 Special playback operations . 18
A Safety precautions . 3 Al TIMER operations 19
A}. lMPORTANT SAFEG 4 Al TIMER playback procedure . 20
Power supplies ......... 7 AI Sound processor 22
Controls and indicators ,. 9 Listening through speaker system 23
HOLD/RESUME switch 11 Listening through car stereo .. 24
Preparation for playback .. 12 In case of difficulty
Basic operation .. 13 Specifications....
Starting playback
2 (En)
Page 10
Controls and indicators
I Card remote control unit
When the card remote control unit ls used, connect an AC adaptor or car battery adaptor to the
main unit. If the power of the unit is supplied only with batteries, the unit does not function.
The keys with the same names as the keys on the main unit have the same functions as them.
KENWOOD
Numeric keys
Search keys \-
P.MODE key -
Al AUTO key--
.- Play/pause key
' --Stop/powor OFF key
--- Volume keys
lThe keys can adjust the volume level
L by -30 dB from the unit setting.)
PRESENCE key
lFunctions same as the LIVE key.)
Al TIMER key-/ \--REPEAT key
Approx. 3 m
l .222 hi...
@2513 7
Remote control unit
Remote control range
Main unit
0 Before use, pull out the battery protection sheet from the rear panel.
0 When pressing the operation keys on the remote control unit. reserve an interval of 1 second or more between
each press. The remote control operation may be difficult if direct sunlight is incident to the main unit.
\- When replacing the battery, use a lithium battery (CR2025) available in audio stores. , , , , j
Note:
Malfunction may occur if direct sunlight or the light of a high-frequency lighting fluorescent lamp enters the re mote
control light sensor. In such a case. change the system installation position to prevent the malfunction.
10 (En)
