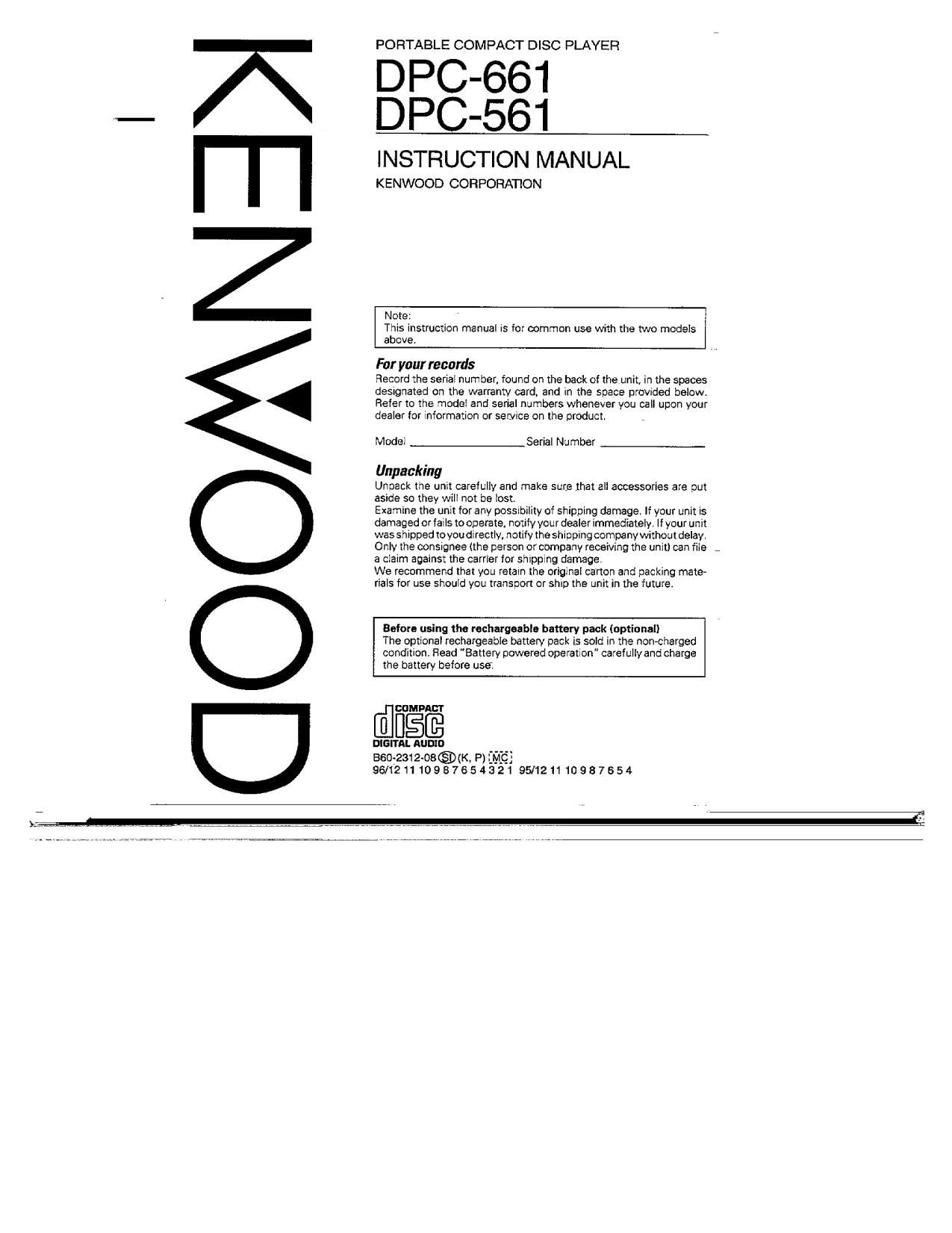

Page 1

K
I'I'1
E
o
o
U

PORTABLE COMPACT DISC PLAYER

DPC-661
DPC-561

INSTRUCTION MANUAL

KENWOOD CORPORATION

Note
This instruction manual is for mmmon use with the two models
abcve,

For your records

Record the serial number found on the back of the unit, in the spaces
desrgnated on the warramv card. and in the space provided below.
Reler to the model and serial numbers whenever you call upon your
dealer for information or serylce on the product ,

Model Serial Number

Unpacking

Unoack the unit carelully and make sure that all accessories are put
aside so they will not os lost.

Examlne the unit for any possrbillty of shipping damage If your unit is
damaged or fails to operate. notify ych dealer Immediately If your un It
was shipped toyoudlrectly, notify theshlpplng company without delay
Only the consrgnee (the person or company receivmg the unit) can r'rie
a claim against the carrier lor shlpplng damage

We recommend that you retain the original canon and packing mate»
rials for use should you transaort or ship the unit in the future

Before using the rechargeable battery pack (optional)

The optional rechargeable battery pack is sold in the non-charged
condition Read "Battery powered operation" carefully and charge
the battery before use

COMPACT

[jingle

DIGITALAUDID
360:2312-08®(K, P) [ME]
96/12111098765432195/121110937554

Page 2

AI edit playback W1;

AI odir playback play: all olthc track: an a disc within the sat time Pressing the REPEAT key in the p!
period by fading out [reducing volume gradually at the and all enjoy various playback features.
every track. (Fast forward and fast reverse operalions are not
possible.)
Preparation . Press the BEPEATkey.
- Enter me stop mode by pressing the I key while playback "9E0

The program mode and repeat mods should be deactivated,

. (~59

,, w 5 Each press switches the repeat m
7 0 Canceled position
Press the RMODEkey twice. ; :ztggnmhwma'pav
i
00; §
E

\ . 9 One-track repeat
. r The neck being played or
. selected track Will be
Blinks,

played repeatedly.

E Select the time period available for 9 All-track repeat

playback. i All tracks on the dlsc wall
0 Each press of the key be played repeatedly,
saws switches {he lime parlods as
7" follows. 0 Sh HI I
(i s . u e p ay
"A 0 '15 (mm) All Hacks on the dlSC or all
. 9 SE of the programmed tracks
0 15 Wlll be played in a random
0 50 order.
I 9 Scan play
a Start playhfl Ck. 5 A part of every (rack on the
clsc wlll ae played for 20
seconds,

(Fast forward or fast

s, reverse Operation l5 not
" . ' possible.)
H l
._ g
- Al ediI playback may not be available if the disc contains a large c In case shuffle play or scan play .-
number of tracks and rhe set period is too short for in playback of the selected modest:
- The Al edit mode can be canceled by pressing the I key in step plaved has completed,

mode. 0 The REPEAT key is invelld during

Page 11

at seems to he a serious trouble may sometimes be due to a simple mistake Bolore calling lor
1m, checktho itemsshowu inthe following table again. [lfyou requestservicing duetothe reasons
own in the table, the service may be charged in some cases.)

Symptom Cause V ' Remedti

No operation occurs - TheHOLD swttch oi the main unit is 0 Set the swnch to OlgF,
when operation keys are set to ON.

pressed. 0 The batteries are exhausted. u Replace both of the two dry cell bat»
teries, or recharge the rechargeable

batteries
- The disc is placed upside down. 0 Place the disc with the labeled srde

up.

- Condensation has occurred inside - Leavethe unitloraboutl houroefore
the tint. rarusa.

- TheACaclapterorcarbatteryadapter - Connect it properlyr
is disconnected,

No sound is heard lrom t The headphones are connected in - Insert the plug securely into the

the headphones. completely PHONES jack,

. The volume is set to the minimum I Adjust the volume on the main unit.
posrtion on the main unit.

Sound skips. or is inter» The D,A,S.C. is set to "OFF". 0 Set the D.A.S.C. to "ON".
ruined. - A strong vibration that exceeds the - Place the unitin a place notsubiecttc
capacrtycfthe DASC, hasoocurred. vibraton.
- The disc is tiny. - Clean it.
- The lens is dinv. . Clean it.
I The headphone plug l5 dirty. - Clean it.
- The batteries are weak. 0 Replace or recharge the batteries.
Noise intafleros. - The headphone plug is dirty. - Clean it.
. The batteries are weak, - Replace or recharge the batteries.
,- - The headphones are connected in - Insert the plug securely into the
completely PHONES jack.
Rechargeable batteries 0 Commerciallyravailable rechargeable - Use the exclusive rechargeable bat-
cannot be recharged. batteries are used. teries [NB-77/NB-88), '
totes

1 . This system uses a microcomputer so it may malfunction due to external noise or interference. In such
a case. unplug the power cord and remove the batteries. then plug the power cord again and insert the
batteries again. ,

2. Erroneous operation may occur when the headphone plug is plugged or unpiugged; but this is not a
malfunction.

.-
