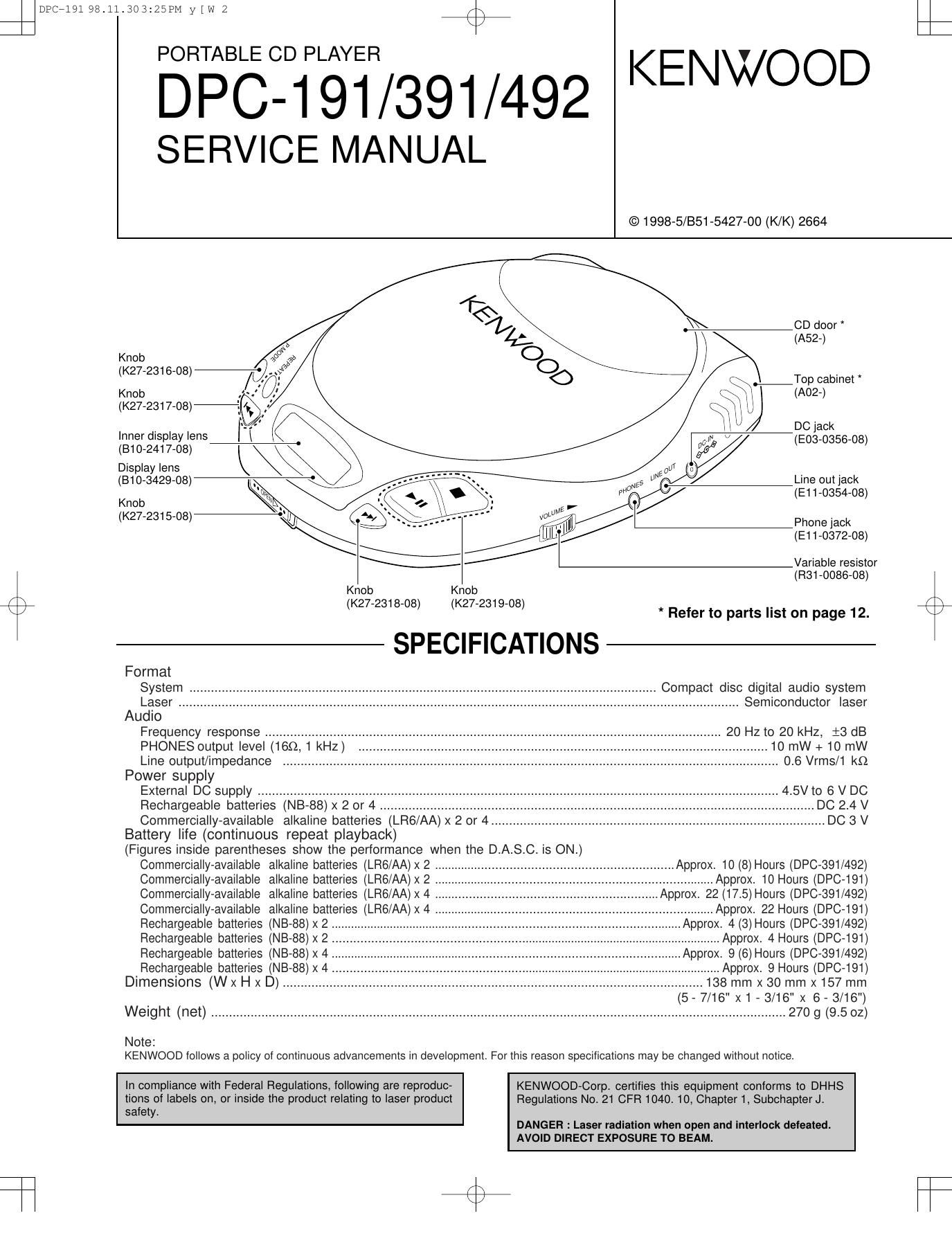

Page 1
DPCil9l 98.11.303125PM y [W 2
PORTABLE CD PLAYER
DPC-191/391/492
SERVICE MANUAL
KENWOOD
© 1998-5/351-5427-00 (K/K) 2664
Knob
(K27-2316-08)
Knob
(K27-2317-08)
Inner display lens I -I .
(B10-2417-08)
Display lens \\
(B10-3429-08)-."\d
a».
Knob .
(K27-2315-08)-
Knob Knob
(K27-2318-08)
Format
System .
Laser
Audio
Frequency response ................................................................
PHONES output level (160, 1 kHz)
Line output/impedance .....................
Power supply
External DC supply ...................................
Rechargeable batteries (NB-88) x 2 or 4
Commercially-available alkaline batteries (LRG/AA) x 2 or 4
Battery life (continuous repeat playback)
(K27-2319-08)
SPECIFICATIONS
CD door *
(A52-)
(A02-)
DC jack
(E03-0356-08)
Line out jack
(E11-0354-08)
Phone jack
(E11-0372-08)
Variable resistor
(R31 -0086-08)
* Refer to parts list on page 12.
Compact disc digital audio system
....................... Semiconductor laser
.............................................................. 20 Hz to 20 kHz, :3 dB
.10 mW +10 mW
0.6 Vrms/1 k9
.4.5Vto 6 V DC
.DC 2.4V
....D03V
(Figures inside parentheses show the performance when the D.A.S.C. is ON.)
Commercially-available alkaline batteries (LR6/AA) x 2
Commercially-available alkaline batteries (LRG/AA) x 2
Commercially-available alkaline batteries (LRG/AA) X 4
Commercially-available alkaline batteries (LRG/AA) x 4
Rechargeable batteries (NB-88)x2.
Rechargeable batteries (NB-88)x2
Rechargeable batteries (NB-88)x4.
Rechargeable batteries (NB-88)x4
Dimensions (W x H x D) ..............
Weight (net) ................................................................................
Note:
Approx. 10 (8) Hours (DPC-391/492)
.......... Approx. 10 Hours (DPC»191)
Approx. 22 (175) Hours (DPC-391/492)
.......... Approx. 22 Hours (DPC»191)
Approx. 4 (3) Hours (DPC»391/492)
........ Approx. 4 Hours (DPC-191)
Approx. 9 (6) Hours (DPC-391/492)
..... Approx. 9 Hours (DPC-191)
138 mm X30 mm x 157 mm
(5 » 7/16" x1 - 3/16" x 6 » 3/16")
................................................................................ 270 g (9.5 oz)
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
In compliance with Federal Regulations, following are reproduc-
tions of labels on, or inside the product relating to laser product
safety.
KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No. 21 CFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
%
Page 2
DPCilgl 98.11.303125PM y [W 3
%
DPC-191/391/492
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES ..
CIRCUIT DESCRIPTION...
PC BOARD ...................
SCHEMATIC DIAGRAM.
Model feature list
EXPLODED VIEW..
PARTS LIST
SPECIFICATION
'xI'cnbix)
BETTE» Ski M O D E |_ DPC-1 91 DPC-391 DPC-492
FEATURE711"""a K P T M M2 x K P M K P
LIN E O UT O O O o o O o O O O 0
REMOTE TERMINAL 0 O
D As O K N O B O O O O o
B . B K N O B O O O O O O
B.BOOST PIMODE (TACT SW) 0 O O O O
P.MODE (TACT SW) 0 O O O O 0
Accessories
f
Car battery adapter ......... (1) AC adapter ..................... (1)
%
AC plug adapter .............. (1)
(E03-0115-05) : M
|nnerphone(LONG) ......... (1)
(Wm-092505) : E, M
(WOT-092105) : DPC-492(K4,P4)
(W08-0657-08) : K1 ,K3,K4,P1 ,P3,P4
(W08-0658-08) : E
(W08-0675-08) : M
Rechargeable battery .....(1)
(W09-1240-05) : M
Car cassette adapter ...... (1)
(W01-0922-05) : DPC-492(K4,P4)
Headphone ..................... (1)
(WO1-0924-05) : K1,K3,P1,P3
(WO1-0943-05) : K4,P4
