Kenwood DPC 392 Service Manual

Page 1

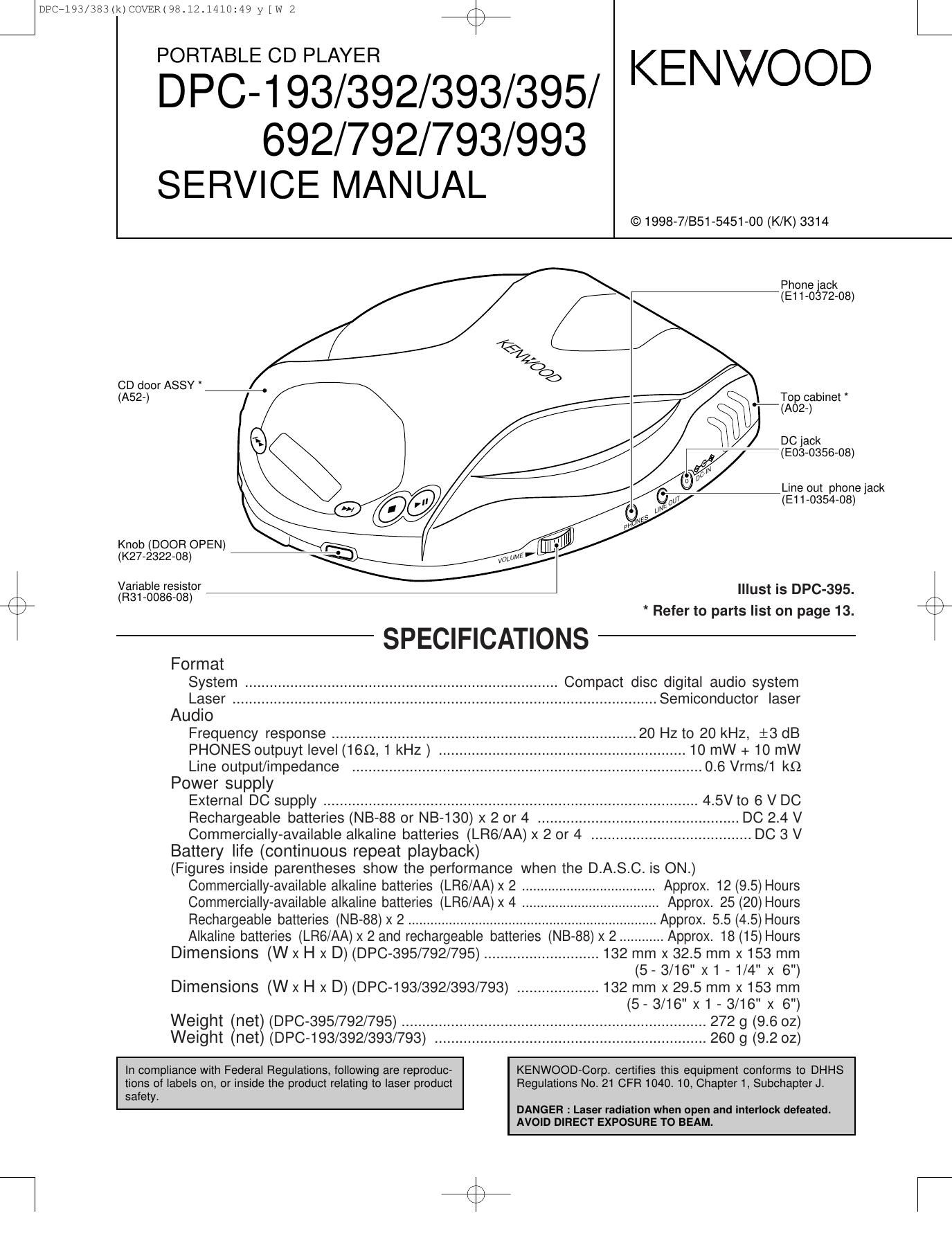

DPCilg3/383 (k) COVER(98.12.1410149 y [W 2 EI\

3333357552393/395/ KENWOOD

692/792/793/993
SERVICE MANUAL

©1998-7/BS1-5451-00 (K/K) 3314

Phone jack
(E11-0372-08)
fi
92;
O
00
CD door ASSY

(A52-) W Top cabinet
W RIAOZ-I
N j DC lac

k
(EO3-0356-08)
I%

Line out phone jack
(E11-0354-08)

Knob (DOOR OPEN)
(K27-2322-08)

Variable resistor Illust is UPC-395.

\ (R31 -0086-08)
x * Refer to parts list on page 13. @

SPECIFICATIONS

Format
System ................... Compact disc digital audio system
Laser .............................................. Semiconductor laser
Audio

Frequency response .......................................
PHONES outpuyt level (169, 1 kHz )
Line output/impedance

Power supply
External DC supply ..........................................................
Rechargeable batteries (NB-88 or NB-130) x 2 or 4 ......
Commercially-available alkaline batteries (LR6/AA) x 2 or 4

Battery life (continuous repeat playback)

(Figures inside parentheses show the performance when the D.A.S.C. is ON.)
Commercially-available alkaline batteries (LR6/AA) x 2 Approx. 12 (9.5) Hours
Commercially-available alkaline batteries (LR6/AA) x 4 Approx. 25 (20) Hours
Rechargeable batteries (NB-88) x 2 .................................. Approx. 5.5 (4.5) Hours
Alkaline batteries (LR6/AA) x 2 and rechargeable batteries (NB-88) x 2 ............ Approx. 18 (15) Hours

Dimensions (W x H x D) (DPC-395/792/795) ..... 132 mm x 32.5 mm x 153 mm

(5- 3/16"x1-1/4"x 6")

Dimensions (W x H x D) (DPC-193/392/393/793) .................... 132 mm x 29.5 mm x 153 mm

(5- 3/16" x1 - 3/16" x 6")
........ 272 g (9.6 oz)

............ 20 Hz to 20 kHz, i3 dB
....... 10 mW + 10 mW
........... 0.6 Vrms/1 k9

.......... 4.5V to 6 V DC
DC 2.4 V
...... DC 3 V

Weight (net) (DPC-395/792/795) ......................

Weight (net) (DPC-193/392/393/793) ..................................... 260 g (9.2 02)
In compliance with Federal Regulations, following are reproduc- KENWOOD-Corp. certifies this equipment conforms to DHHS
tions of labels on, or inside the product relating to laser product Regulations No. 21 CFR 1040 10, Chapter 1, Subchapter J.
safety.

DANGER : Laser radiation when open and Interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
