Kenwood DP 2010 Owners Manual

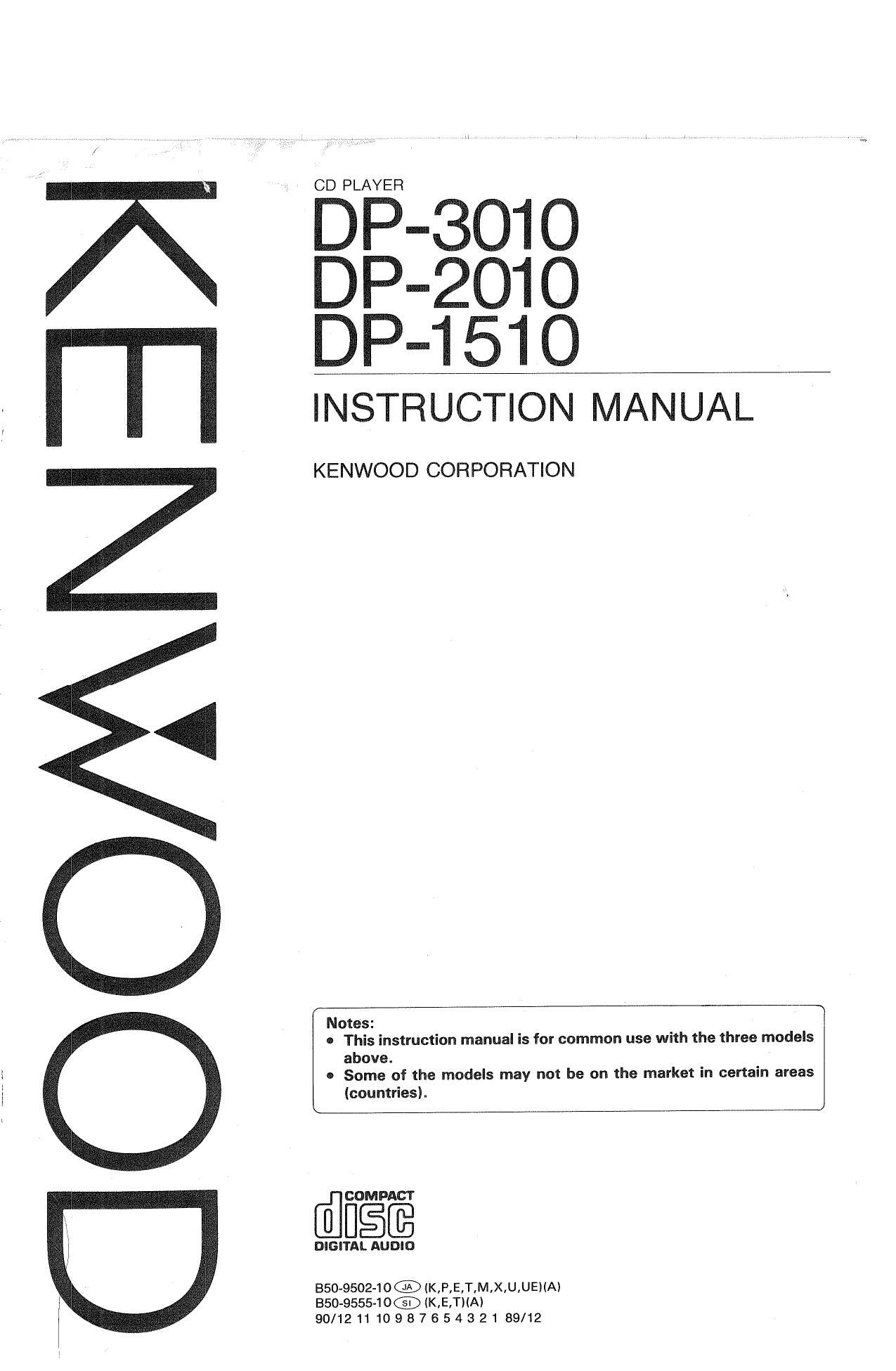

Page 1

i C O/AN El)!

CD PLAYER

DP-3010
DP-ZOIO
DP-151 O

INSTRUCTION MANUAL

KENWOOD CORPORATION

Notes:

0 This instruction manual is for common use with the three models
above.

0 Some of the models may not be on the market in certain areas
(countries).

DIGITAL AUDIO
B50-9502-10IK,P,E,T,M,X,U,UE)IA)

350-9555-10® (K,E.TIIAI
90/12111098765432189/12

Page 2

Introduction

Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.

We appreciate your patronage and take pride in the long
tradition of quality components, that our company
represents

So that you can get the most out of your unit. we suggest
that you take the time to read through this manual before
you hook up and operate your system.

This will acquaint you with operating features. and system-
connection considerations. so that your listening pleasure
WlII be enhanced right from the start. You will notice that
in all aspects of planning, engineering. styling, operating
convenience and adaptability, we have sought to antici-
pate your needs and desires.

Keep this manual handy for future reference.

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card. and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.

Model Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessoe
ries are put aSide so they Will not be lost.

Examine the unit for any possibility of shipping damage.
If your unit is damaged or fails to operate. notify your dealer
immediately. If your unit was shipped to you directly. notify
the shipping company without delay. Only the conSignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage,

We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.

CAUTION: Use of controls or adjustments or perfor
mance of procedures other than those speCitied herein
may result in hazardous radiation exposure.

In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product relating
to laser product safety.
_________________________ .1
KENWOOD CORPORATION
SHIONOGI SHIBUYA BUILDING 17-5. 2-CHOME.
SHIBUYA, SHIBUYA»KU, TOKYO, JAPAN

KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO. 21 CFR
1040, 10. CHAPTER I. SUBCHAPTER J.

Location: Back Panel
.- - 1
i DANGER '
I INVISIBLE LASER RADIATION WHEN OPEN :
I AND INTERLOCK FAILED OR DEFEATED. i
i

Luge P'FiECJEXfQSUfiE T9 ewe _ _ .

Location: Inside. near the Laser mechanism.

Accessories
' Audio cord ................. 1

System control cord ...... 1
lExcept for the UK. and
Europe)

' Remote control unit ....... 1 0 Battery .......
oPamo only DP-ZO'IO only :EXACQPIOA) 3:1)510)
RC~P3010 Renoir)

Contents

ABefore applying power .............
A Important safeguards ..
Before operation .......
System connections ..
Controls and indicators (DPASOIO) .
Remote control RC-PSOIO (For DP-3010) ..
Controls and indicators (DP-2010, DP-IBIO
Remote control RC-PZOIO (For DP-ZOIO) ..
Manual play (Track mode) .................
Setting the play mode ..........
Playing from a desired track ,,
Listening to the next track or preVIous track ..
Forward and reverse serching ........................
Programmed play (program model v.
Programming ..............
AUTO SPACE function
Checking a program
Changing a program ..

Caution: Read the following pages marked in A carefully to keep your safety.

Playing a program ..............................
Playing a particular track of a program
Stopping programmed play .....
Adding a track .....
Erasing a program
Editing (DP-3010 only) ,
Editing ...................
Checking contents of edited program
Playing ..........................
Erasing an edited program .
Repeated play ,.
To repeat all t e tracks .............
To repeat play of a single track
Random play .............................
Time display switching and timer playing
In case of difficulty
Specifications ...........

2 DP-3010/2010/1510 (En)
