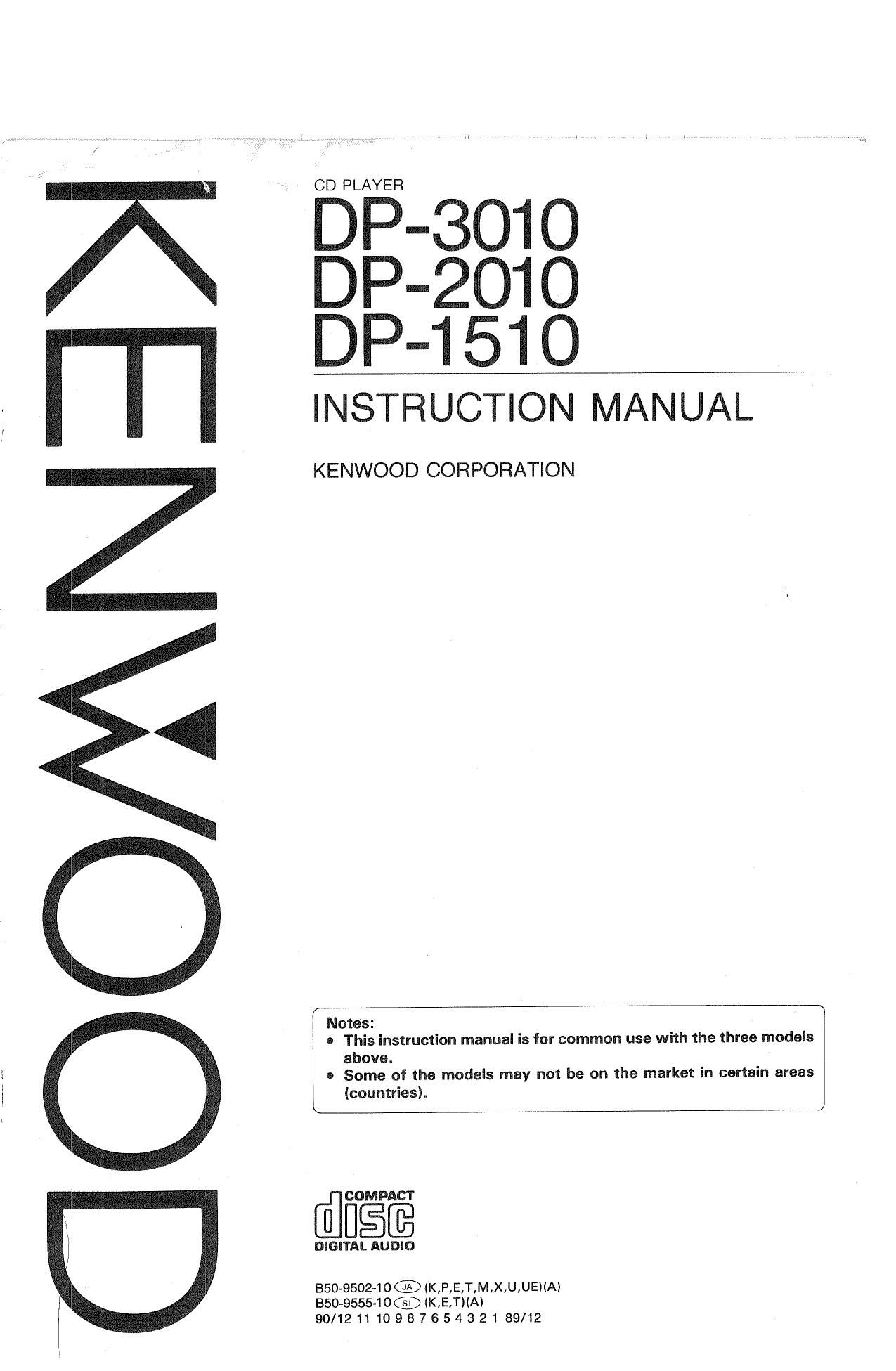

Page 1
i C O/AN El)!
CD PLAYER
DP-3010
DP-ZOIO
DP-151 O
INSTRUCTION MANUAL
KENWOOD CORPORATION
Notes:
0 This instruction manual is for common use with the three models
above.
0 Some of the models may not be on the market in certain areas
(countries).
DIGITAL AUDIO
B50-9502-10IK,P,E,T,M,X,U,UE)IA)
350-9555-10® (K,E.TIIAI
90/12111098765432189/12
Page 2
Introduction
Your choice of this product indicates that you are a
devotee to excellence in sound reproduction.
We appreciate your patronage and take pride in the long
tradition of quality components, that our company
represents
So that you can get the most out of your unit. we suggest
that you take the time to read through this manual before
you hook up and operate your system.
This will acquaint you with operating features. and system-
connection considerations. so that your listening pleasure
WlII be enhanced right from the start. You will notice that
in all aspects of planning, engineering. styling, operating
convenience and adaptability, we have sought to antici-
pate your needs and desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card. and in the
space provided below. Refer to the model and serial
numbers whenever you call upon your dealer for informa-
tion or service on this product.
Model Serial Number
Unpacking
Unpack the unit carefully and make sure that all accessoe
ries are put aSide so they Will not be lost.
Examine the unit for any possibility of shipping damage.
If your unit is damaged or fails to operate. notify your dealer
immediately. If your unit was shipped to you directly. notify
the shipping company without delay. Only the conSignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage,
We recommend that you retain the original carton and
packing materials for use should you transport or ship the
unit in the future.
CAUTION: Use of controls or adjustments or perfor
mance of procedures other than those speCitied herein
may result in hazardous radiation exposure.
In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product relating
to laser product safety.
_________________________ .1
KENWOOD CORPORATION
SHIONOGI SHIBUYA BUILDING 17-5. 2-CHOME.
SHIBUYA, SHIBUYA»KU, TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO. 21 CFR
1040, 10. CHAPTER I. SUBCHAPTER J.
Location: Back Panel
.- - 1
i DANGER '
I INVISIBLE LASER RADIATION WHEN OPEN :
I AND INTERLOCK FAILED OR DEFEATED. i
i
Luge P'FiECJEXfQSUfiE T9 ewe _ _ .
Location: Inside. near the Laser mechanism.
Accessories
' Audio cord ................. 1
System control cord ...... 1
lExcept for the UK. and
Europe)
' Remote control unit ....... 1 0 Battery .......
oPamo only DP-ZO'IO only :EXACQPIOA) 3:1)510)
RC~P3010 Renoir)
Contents
ABefore applying power .............
A Important safeguards ..
Before operation .......
System connections ..
Controls and indicators (DPASOIO) .
Remote control RC-PSOIO (For DP-3010) ..
Controls and indicators (DP-2010, DP-IBIO
Remote control RC-PZOIO (For DP-ZOIO) ..
Manual play (Track mode) .................
Setting the play mode ..........
Playing from a desired track ,,
Listening to the next track or preVIous track ..
Forward and reverse serching ........................
Programmed play (program model v.
Programming ..............
AUTO SPACE function
Checking a program
Changing a program ..
Caution: Read the following pages marked in A carefully to keep your safety.
Playing a program ..............................
Playing a particular track of a program
Stopping programmed play .....
Adding a track .....
Erasing a program
Editing (DP-3010 only) ,
Editing ...................
Checking contents of edited program
Playing ..........................
Erasing an edited program .
Repeated play ,.
To repeat all t e tracks .............
To repeat play of a single track
Random play .............................
Time display switching and timer playing
In case of difficulty
Specifications ...........
2 DP-3010/2010/1510 (En)
Page 3
A Caution: Read this page carefully to keep your safety.
Before applying power
For the U.S.A. and Canada
For Australia and Europe
Important!
Units shipped to the U.S,A. and Canada are designed for
operation on 120 volts AC only.
For the United Kingdom
Important!
Units shipped to Australia are designed for operation on
240 V AC only.
Units shipped to Europe are designed for operation on 220 V
AC only.
For other countries
lmporta ntl
Units shipped to the UK. are designed for operation on 240
volts AC Only.
The mains plug must be removed from the wall socket prior to
any internal examination.
The wires in this mains lead are coloured in accordance with
the following code
Blue ............
Brown .....
Neutral
Live
The wires in this mains lead must be connected to the
terminals in the plug as follows:
Wire colour Plug terminal marking
Blue .................................................... N or Black
Brown ........................... L or Red
Brown to
- Live
Blue to
Neutral -
Plug
Notes:
1. If a 13-amp plug is used. this must be fitted with a 5 amp
fuse.
2. If a 3-pin plug with earthing contact is used, no wire must
be connected to the E terminal.
lmportantl
Units shipped to countries other than the above countries are
equipped with an AC voltage selector switch on the rear
panel. Refer to the following paragraph for the proper setting
of this switch.
Ac voltage selection
This unit operates on I IO~1 20 or 220-240 volts AC. The AC
voltage selector switch on the rear panel is set to the voltage
that prevails in the area to which the unit is shipped. Before
connecting the power cord to your AC outlet, make sure that
the setting position of this switch matches your line voltage.
If not, it must be set to your voltage in accordance with the
following directions.
Note:
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector
switch.
AC I 10~1 ZOVM >AC220240V'V AC 1 10-1 ZOVM >AC220-240VV
This shows switch
lever is locked in the
220»Z40V \, position.
This shows switch
lever is locked in the
llO-IZOV \1 position.
Move switch lever to match your line voltage
with a small screwdriver or other pointed tools
AC voltage selector switch
Safety precautions
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION
Rlbh :ng llItlTlIlt; erIt in
Uriwi (WIN
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERo
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE
A VICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL. WITHIN AN EOUILATERAL TRIAN-
GLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DAN-
GEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNITUDE T0 CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EOUILATERAL TRIANGLE IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SER-
VICINGI INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE,
DP~3010/2OIO/15I0 (En) 3
Page 12
Manual play (Track mode)
Music calendar (1 ~20)
Disc tra . ,
V TRACK NO indicator --« REPEAT key Numeric keys
Play mode indicator The diagram shows
DP»3010.
KENWOOD WFAE'V misc PLAVER mama
,_____
L__.___._...._..-..-|
ll MES m
"mm-AM
- / ..
EEAmM
OPEN
POWER switch
SEARCH keys ([4343]) ~-
/CLOSE key Ei-./
SKiP keysi H4 . PM)
When the power has been turned on
i \
123A5
E75910
H \E «a u 15
is «7 18 «a 2n
When putting in disc
When a disc has not
been put In.
Efl
i_|ndication of recorded
track numbers,
When the PLAY/PAUSE key VZE is pressed
Li U '/_i
Ii Fl .17 i'
«2345
E7591D
_/
Time elapsed.
Example of pausing play at the third track
min
Lights
Up
F17 - ,
l---|l ll"! ill/1»?
K- P»MODE key
STOP Key E
g PLAYiPAUSE key
LEE
I Setting the play mode
Preparing to play
1. Press the POWER switch to turn on.
2. Press the OPEN/CLOSE koygto make the tray slide out.
3. Place the disc in the tray with the labeled side up.
4. Press the OPEN/CLOSE keygagain to make the tray
slide back in.
Play
Press the PLAY/PAUSE key .
0 After a few seconds play will start from the first track.
0 If a disc has already been put in, play will start automat-
icaily from the first track when the power is turned on.
Pausing play 7
Press the PLAY/PAUSE key EzE .
0 The pause indicator (II) will light up and play will stop
at that point. #w
0 When the PLAY/PAUSE key F/Lljis pressed again,
play Will resume from that point.
To stop play
Press the STOP key E.
0 The play indicator (b) goes out and the play stops. .
The numbers of the tracks already
played go out in order.
12 DP-3010/2010/1510lEn)
