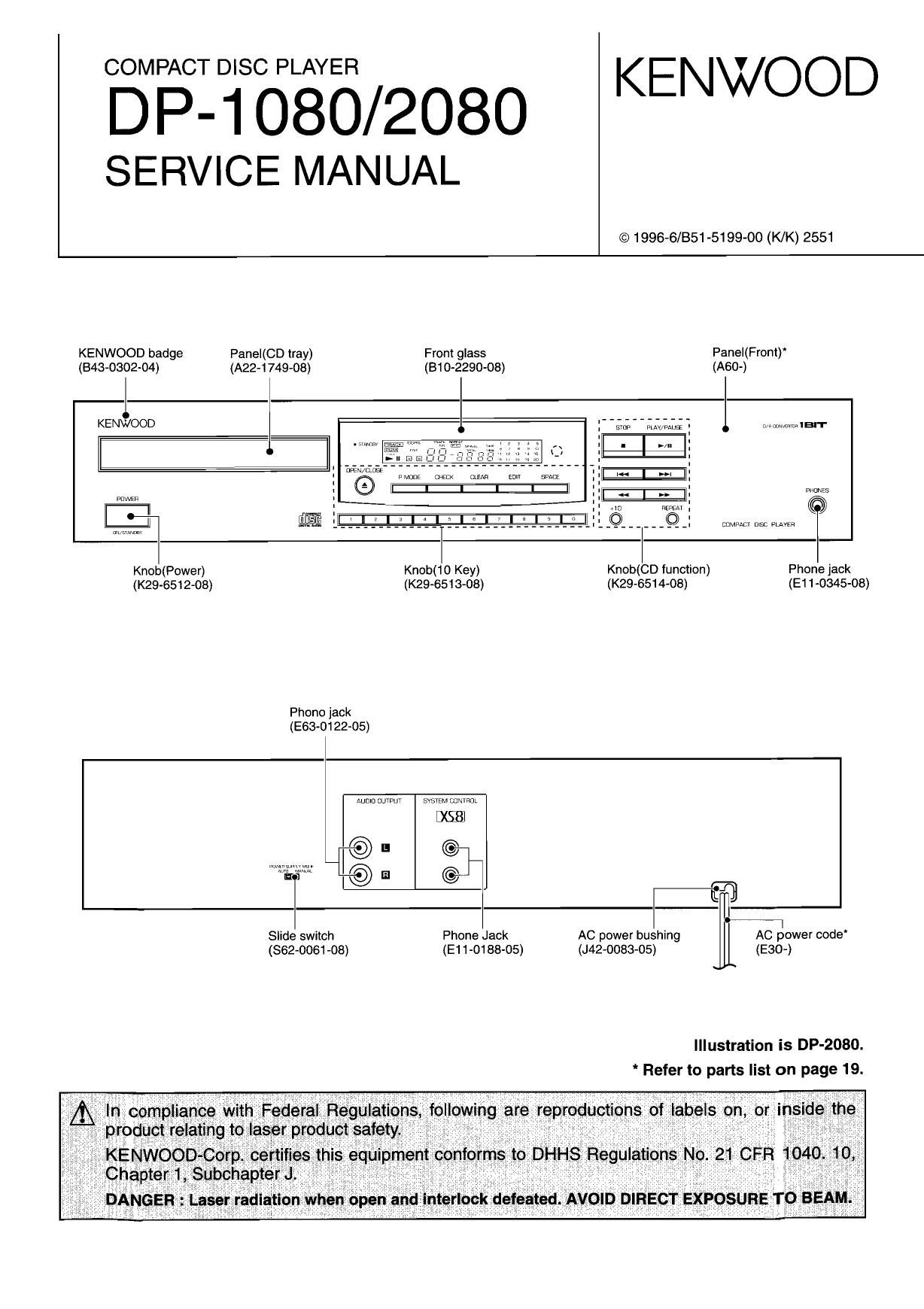

Kenwood DP 1080 Service Manual
This is the 19 pages manual for Kenwood DP 1080 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DP 1080 Service Manual (Ocr-read)
Page 2
DP-1080/2080
CONTENTS I ACCESSORIES / CAUTIONS
Contents
CONTENTS/ACCESSORESICAUNONS ............. 2
DEASSEMBLYFORREPNR .................................... 3
BLOCKDMGRAM ..................................................... 5
GRchDESCWPflON ............................................ 6
ADJUSTMENT ............................................................ 9
Accessories
PC BOARD .............................................................. 10
SCHEMATIC DIAGRAM .......................................... 13
EXPLODED VIEW .................................................... 17
PARTS LIST .............................................................. 19
SPECIFICATIONS ...................................... Back cover
Audio cord System control cord ............(1) AC plug adaptor .................. (1)
(an-osos-os) (an-2733-05)
Remote control unit....r........(1)
(A70-1108-08 :DP-2080 only)
Cautions
(503-01 15-05)
1
Note related to transportation and movement
Before transporting or moving this unit, carry out the {allowing
operations.
1 . Turn the power ON but do not load a disc.
2. Wait a few seconds and verify that the display shown appears.
Walt further a few seconds.
3 Turn the power OFF.
m3 '3='
.1..
,IA,-1..aml.
llljlj I ll_ 1517151:
15
2a
Beware of condensation
When water vapor comes into contact with the surface of cold
material, water drops are produced, ll condensation occurs,
correct operation may not be possible, or the unit may not
function correctly. This is not a malfunction. however, and the unit
should be dried. (To do this, turn the POWER switch ON and
leave the unit lor several hours.)
Be especlally careful in the followlng condltlons:
c When the unit is brought from a cold place to a warm place,
and there is a large temperature difference.
0 When a heater stans operating.
0 When the unit is brought from an air-conditioned place to a
place of high temperature with high humidity.
Q When there is a large difference between the internal
temperature of the unit and the ambient temperature, or in
conditions where condensation occurs easily.
