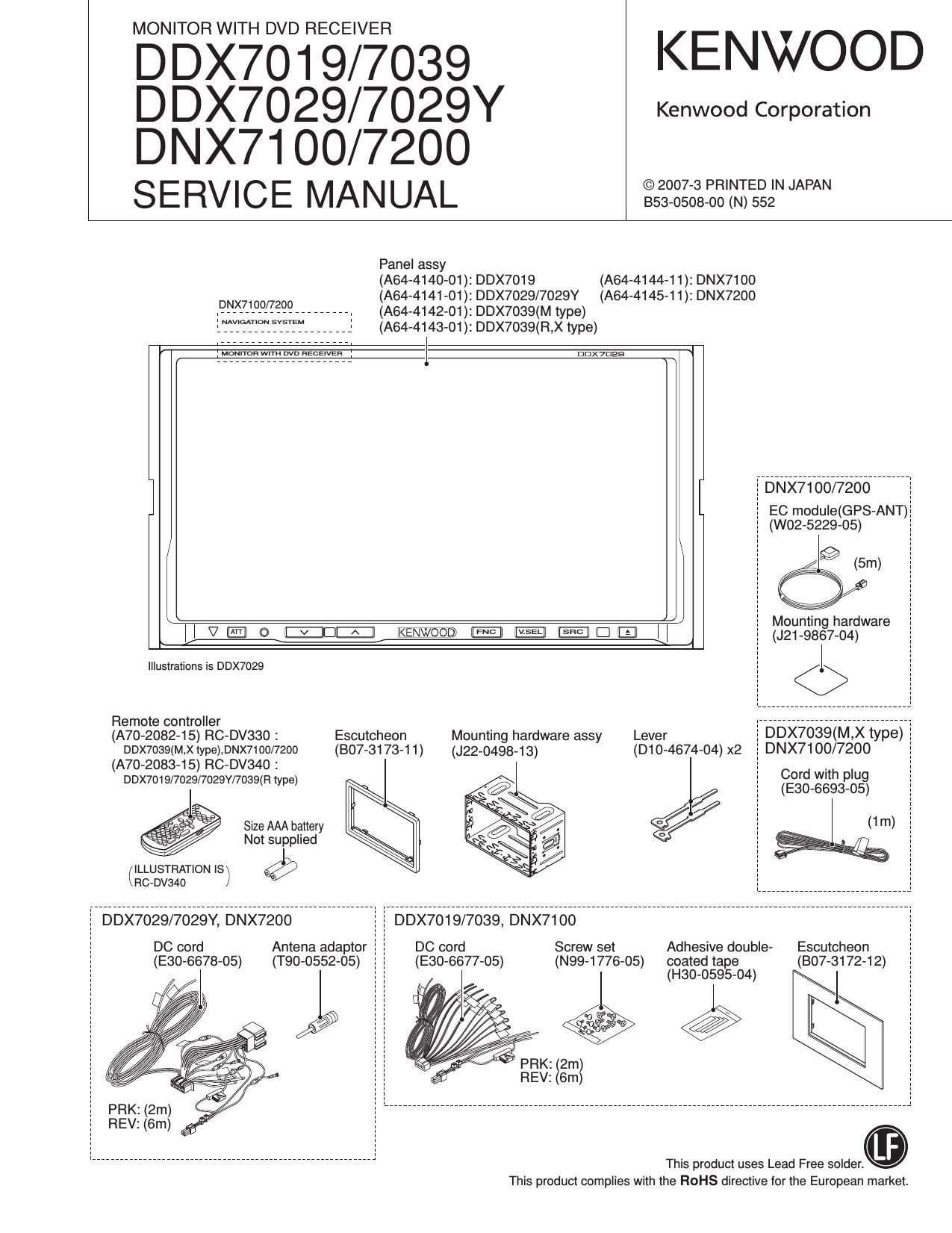

Kenwood DNX 7100 Service Manual
This is the 76 pages manual for Kenwood DNX 7100 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DNX 7100 Service Manual (Ocr-read)
Page 2
DDX7019/7029/7029Y/7039
DNX7100/7200
O The I0106 in the DIGITAL [/0 UNIT (X88-2020-12) is not a replaceable component.
In case of defective of this IC, replace the entire unit (X88-2020-12).
O The I05, IC21, and IC60 in the DVD unit (X37-1120-03) are not replaceable components.
In case of defective of any of these le, replace the DVD mechanism assembly. (The ICS has a device key, which shall be
made consistent with the S/No. of the mechanism assembly after replacement. Thus you cannot replace only the board.)
0 MICROCOMPUTERS TERMINAL DESCRIPTION, TEST MODE, ADJUSTMENT are the same as KVT-719DVD.
Please refer to the service manual (KVT-719DVD: 353-0507-00).
GEAR POSITION IN A DVD MECHANISM
In assembling the Traverse UD arm, Drive cam assembly, Traver/se UD arm
Drive gear 5 and Drive gear 40, align register marks on 7
these components.
Inscriptions
(register marks)
on gears
Align 6 marks
as shown in the
figure
1
Drive gear 5 Drive gear 40
Do not lorcibly press gears to engage their teeth
but freely let the gears fall under their own weight
and engage their teeth.
