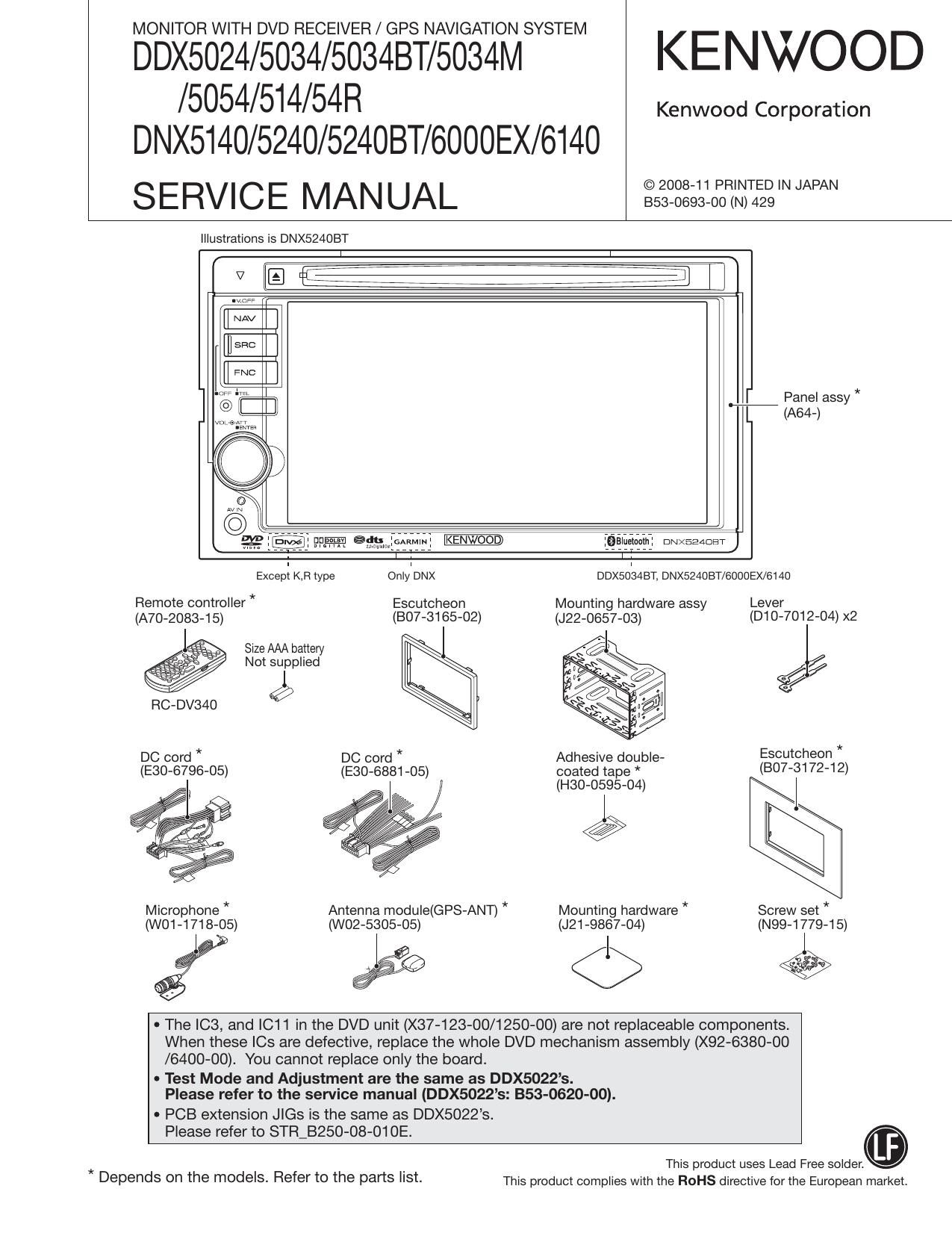

MONITOR WITH DVD RECEIVER / GPS NAVIGATION SYSTEM
DDX5024/5034/5034BT/5034M KENWOOD
/5054/514/54R
DNX5140/5240/524OBT/6000EX/6140
SERVICE MANUAL IIIIIIIIIIIIWN
Kenwood Corporation
Illustrations is DNX524OBT
[I NAV
EI
FNC
] E:E
WM?
:Balueiaam: DNXEEADET
ExcepI KB type OnlleNX DDXSOISABT, DNX524OBT/6000EX/6140
Remote controller * Escutcheon Mounting hardware assy Lever
(A70-2083-15) (BO7-3165-02) (J22-0657-03) (D10 7012- 04)x
Size AAA battery I -
a / Not supplied
l
RC-DV340 9
DC cord * DC cord * Adhesive double- Escutcheon *
(E30-6796-05) (E30-6881-05) coated tape * (807-31 72-1 2)
(H30-0595»04) I
Microphone * Antenna module(GPS-ANT) * Mounting hardware * Screw set *
(WO1-1718-05) (W02-5305-05) (J21 -9867-04) (N99-1779-15)
EEE <1> E
0 The IC3, and |C11 in the DVD unit (X37-123-00/1250-00) are not replaceable components.
When these le are defective, replace the whole DVD mechanism assembly (X92-6380-00
/6400-OO). You cannot replace only the board.
- Test Mode and Adjustment are the same as DDX5022s.
Please refer to the service manual (DDX5022s: 353-0620-00).
- PCB extension Jle is the same as DDX5022s.
Please refer to STR_B250-08-01 OE.
This product uses Lead Free solder.
* .
Depends on the mOdeIS- Refer to the parts I'St- This product complies with the ROHS directive for the European market.
Page 7
O ELECTRIC UNIT (X34-575x-xx)
DDX5024/5034/5034BT/5034M/5054/514/54R
DNX5140/5240/524OBT/6000 EX/614O
COMPONENTS DESCRIPTION
Ref. No. Application / Function Operation / Condition / Compatibility
iC1 S-terminal regulator For AudioBV
[C2 3.3V regulator BU73t3V
|C100 Buffer for remote controller Remote controller signai waveform shaping
|C101 Voltage detector u-com reset voltage (35V) monitoring
[(3103 E2PROM For savmg the settings
iC104 System u-corn IC System control
[0105 NAVl interface waveform conversion (33 a 5V)
[C300 Logic IC (multiplexer) Audio signal selection (Main BT)
|C302 Eiectronic volume IC Audio volume control and audio signal selection
[(3303 Logic IC (multiplexer) Audio signal selection (Main)
lC304 Logic |C (multiplexer) Audio signal selection (Sub)
[0400 AUDIO ISO AMP For TVBOX audio signal
[C401 AUDIO ISO AMP For KAB audio signal
[C402 Logic lC (inverter) TVBOX data signal waveform shaping
ICSOO RDS decoder IC For RDS signal processing and demodulation
lC600 Power IC Power amplifier for speaker output
012 Transistor AudioBV
03,4 Transistor P,CON output Circuit
05 TranSistor BU5V
06 TranSistor Reverse detection circuit
Q7 Transistor Audi08V
08 Transistor BU5V
09 Transistor P,CON output circuit
010 Transistor Parking detection circuit
011 Transistor P,CON output circuit
012 Transistor SWSV circuit
013 TranSistor ILLUMI detection circuit
014 TranSIstor ANT,CON output circuit
015 Transistor SW5V circuit
016 Transistor ANT,CON output circuit
017 TranSistor BU detection circuit
020 TranSistor Surge detection circuit
021,22 TranSIstor SW3.3V circuit
023 Transistor ACC detection circuit
024,25 Transistor SW14V circuit
0100~102 TranSistor ACC detection/KEY RESET
0103,104 Transistor DET MUTE circuit (Trigger Bu-DET)
0105 Transistor DET MUTE circuit (Trigger Reset)
0107 Transistor TVBOX RESET
0108 TranSIstor DET MUTE circuit (Trigger Bu-DET)
