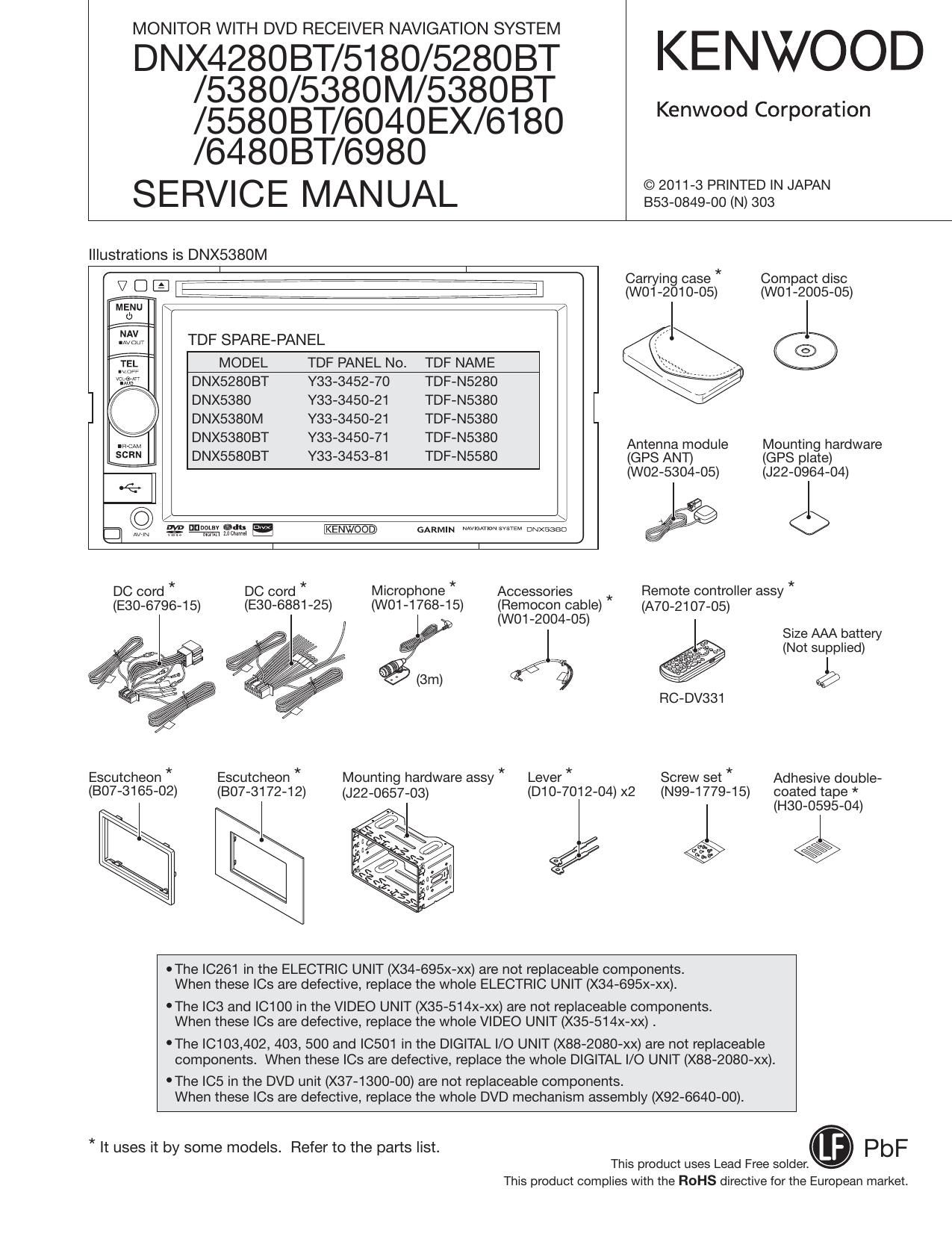

MONITOR WITH DVD RECEIVER NAVIGATION SYSTEM

DNX42808T/5180/52808T
/5380/5380M/53808T
/558OBT/6040EX/6180

KENWOOD

Kenwood Corporation

/64BOBT/6980
SERVICE MANUAL

© 2011-3 PRINTED IN JAPAN
B53-0849-00 (N) 303

Illustrations is DNX5380M

7 7 7 7 7 Carrying case" Compact disc
V D E' Le 7 7 7 7 7 7 7ij (w01-2010-05) (wo1-2005-05)
MENU \ / l
d) 7
3153's TDF SPARE-PANEL ©
2 MODEL TDF PANEL No. TDF NAME
DNX52803T Y33-3452-70 TDF-N5280
] \ DNX5380 Y33-3450-21 TDF-N5380
I DNX5380M Y33-3450-21 TDF-N5380
DNX5SSOBT 333450-71 TDF-N5380 Antenna module Mounting hardware
DNX55803T Y33-3453-81 TDF-N5580 (GPS ANT) (GPS plate)
(W02-5304-05) (J22-0964-04)
/ \ ?$
3 W .22 "annals; 13:. mm mm: O
I I
DC cord * DC cord * Microphone * Accessories Remote controller assy *

(E30-6796-1 5) (E30-6881-25)

(WO1-1768-15)

Escutcheon *
(807-3172-12)

Escutcheon *

(807-3165-02) (J22-0657-03)

Mounting hardware assy *

(Remocon cable)

(A70-2107-05)
(WO1-2004-05)

Size AAA battery

(Not supplied)

2% 1
@
RC-DV331

Lever * Screw set * Adhesive double-

(D10-7012-04) x2 (N99-1779-15) coated tape *

I (H30-0595-04)

®

.

OThe |C261 in the ELECTRIC UNIT (X34-695x-xx) are not replaceable components.
When these |Cs are defective, replace the whole ELECTRIC UNIT (X34-695x-xx).

'The |C3 and |C1 00 in the VIDEO UNIT (X35-514x-xx) are not replaceable components
When these le are defective, replace the whole VIDEO UNIT (X35-514x-xx) .

'The |C103,402, 403, 500 and ICSO1 in the DIGITAL |/O UNIT (X88-2080-xx) are not replaceable
components. When these |Cs are defective, replace the whole DIGITAL I/O UNIT (X88-2080-xx).

'The |C5 in the DVD unit (X37-1300-00) are not replaceable components.
When these |Cs are defective, replace the whole DVD mechanism assembly (X92-6640-00).

* It uses it by some models. Refer to the parts list.

This product uses Lead Free semen.

This product complies with the ROHS directive for the European market.

Page 7

DNX42BOBT/5180/52803T/5380/5380M
/5380BT/5580BT/6040EX/6180/648OBT/6980

COMPONENTS DESCRIPTION

Ref. No. Application / Function Operation I Condition / Compatibility
I05 Logic OR
1C6 LDO 3.3V Regulator
|C100 DCDC controller LCD power supply, Variable LED power supply
[C101 LDO 3.3V Regulator
IC200 Logic Panel uCOM terminal protection
IC201 Voltage detect IC Reset signal generate at 4.4V
|C202 MCU [0 Panel system control [0
[C203 [Pod Authentication Coprocessor iPod Authentication
IC204 LDO 3.3V Regulator
IC400 OP Amp VCOM AMP
|C401 LDO 1.8V Regulator
[C402 F ROM Mstar FIRMWARE ROM
IC403 Logic AND
IC404 LDO 3.3V Regulator
|C405 LDO 1.8V Regulator
|C406 LCD Controller Croma y T/C Scaller
[C407 Logic AND
IC700 Logic Inverter
0142 SW Soft start for Input power supply for LCD Backllght
04~6 SW Input power supply detection
Q7 SW FET DCDC SW FET (LCD Backlight)
0100~103 SW Soft Start for +18V
0104~107 SW Soft Start for +9.2V
0108~110 SW Soft Start for -6V
0113,114 SW Soft Start for -6V
0115~117 SW Soft Start for +9.2V
0200 SW Reset signal control for Panel uCOM
0203 SW Reset signal control for Panel uCOM
0204~207 SW Soft Start for Panel uCOM power supply
0208 SW Reset signal control for Panel uCOM
0209 SW BLiPDET signal control for Panel uCOM
0212~218 SW Soft Start for Panel uCOM power supply
0219 SW RCAMilNT signal control for Panel pCOM
0220 SW Soft Start for Panel uCOM power supply
0221.222 SW Reset signal control for Panel uCOM
0400~403 SW Soft Start for LCD controller power supply
0404,405 Buffer Buffer for temperature property absorption
0600~605 SW Control for touch panel
0700 LED B lighting LED B Constant current circuit
0701 LED G lighting LED G Constant current circuit
0702 LED R lighting LED R Constant current circuit
0703 SW KEY LED signal control
0705 SW ILLiR signal control
