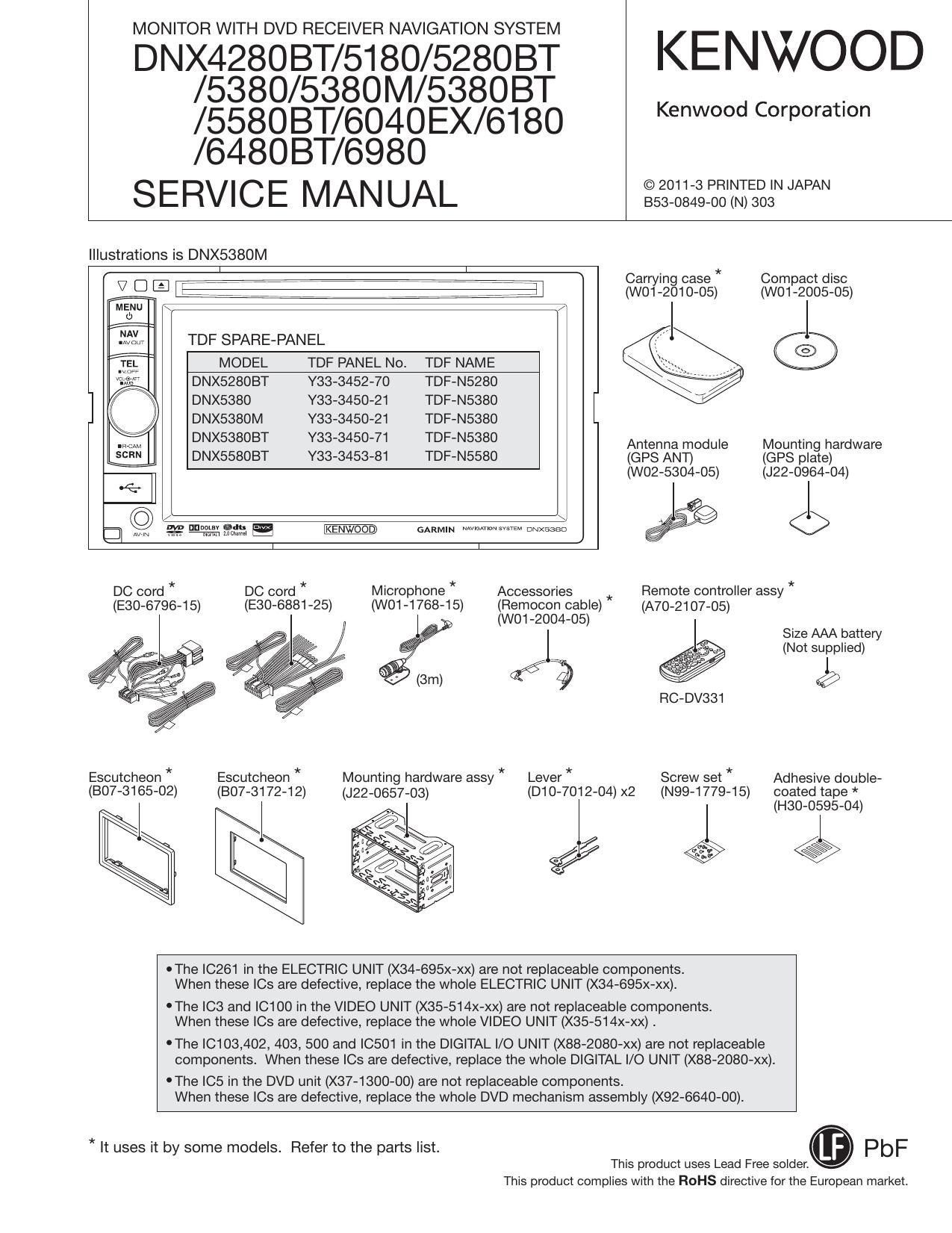

Page 1

MONITOR WITH DVD RECEIVER NAVIGATION SYSTEM

DNX42808T/5180/52808T
/5380/5380M/53808T
/558OBT/6040EX/6180

KENWOOD

Kenwood Corporation

/64BOBT/6980
SERVICE MANUAL

© 2011-3 PRINTED IN JAPAN
B53-0849-00 (N) 303

Illustrations is DNX5380M

7 7 7 7 7 Carrying case" Compact disc
V D E' Le 7 7 7 7 7 7 7ij (w01-2010-05) (wo1-2005-05)
MENU \ / l
d) 7
3153's TDF SPARE-PANEL ©
2 MODEL TDF PANEL No. TDF NAME
DNX52803T Y33-3452-70 TDF-N5280
] \ DNX5380 Y33-3450-21 TDF-N5380
I DNX5380M Y33-3450-21 TDF-N5380
DNX5SSOBT 333450-71 TDF-N5380 Antenna module Mounting hardware
DNX55803T Y33-3453-81 TDF-N5580 (GPS ANT) (GPS plate)
(W02-5304-05) (J22-0964-04)
/ \ ?$
3 W .22 "annals; 13:. mm mm: O
I I
DC cord * DC cord * Microphone * Accessories Remote controller assy *

(E30-6796-1 5) (E30-6881-25)

(WO1-1768-15)

Escutcheon *
(807-3172-12)

Escutcheon *

(807-3165-02) (J22-0657-03)

Mounting hardware assy *

(Remocon cable)

(A70-2107-05)
(WO1-2004-05)

Size AAA battery

(Not supplied)

2% 1
@
RC-DV331

Lever * Screw set * Adhesive double-

(D10-7012-04) x2 (N99-1779-15) coated tape *

I (H30-0595-04)

®

.

OThe |C261 in the ELECTRIC UNIT (X34-695x-xx) are not replaceable components.
When these |Cs are defective, replace the whole ELECTRIC UNIT (X34-695x-xx).

'The |C3 and |C1 00 in the VIDEO UNIT (X35-514x-xx) are not replaceable components
When these le are defective, replace the whole VIDEO UNIT (X35-514x-xx) .

'The |C103,402, 403, 500 and ICSO1 in the DIGITAL |/O UNIT (X88-2080-xx) are not replaceable
components. When these |Cs are defective, replace the whole DIGITAL I/O UNIT (X88-2080-xx).

'The |C5 in the DVD unit (X37-1300-00) are not replaceable components.
When these |Cs are defective, replace the whole DVD mechanism assembly (X92-6640-00).

* It uses it by some models. Refer to the parts list.

This product uses Lead Free semen.

This product complies with the ROHS directive for the European market.

Page 11

DNX4280BT/5180/528OBT/5380/5380M

/53803T/5580BT/6040EX/6180/6480BT/6980
MICROCOMPUTERS TERMINAL DESCRIPTION

Pin No. Pin Name l/O Application $26136 Processing / Operation / Description
63 AM+B 0 AM power ON/OFF control H: ON, L: OFF
64 P,START2 O ON/OFF control in X157DC-DC H: Start, L: Stop
(For D175V OFF)
65 DVS,SDA I/O Communication data with DVD mechanism
66 DVS,SCL I/O Communication clock with DVD mechanism
67 ATAiRST 0 DVD mechanism reset L: Reset, H: Reset clear
68 NC
69 EJECT | EJECT at OFF L: Depression of KEY is detected
70 SRC | SRC at OFF L: Depression of KEY is detected
71 SYS7VMUTE 0 Video MUTE terminal (Power supply system) H: Mute OFF, L: Mute ON
L: Normal, H: When writing the data in P800
72 |2C7RELEASE | Used when writing the data in PSoC (Stop controlling entire l2C and switch TS,RST
terminal to input within 1s)
73 PiRESETlt 0 Reset request to peripheral circuits L: Reset, H: Reset clear
74 o 1:291:33322,22:'3222ifliliii'2335
as AVlN2 L: When lPOd IS selected
75 CAMilNT 0 Camera interruption setting on/off H: Switch to rear view camera screen
76 TS,RST 0 Touch sensor reset H: Reset, L: Cancel reset
77 EJECTJLLUMLON O ON/OFF of DISC slot illumi H: ON, L: OFF
78 TILT,SPEED O Tilt mechanism power supply switching
79 TMOTORiM O Tilt control of tilt mechanism
80 TMOTORiP O Tilt control of tilt mechanism
81 SYS,SREQ 0 Request to Telechips
82 RSTiMD 0 Activation request to Telechips H: Activation request
83 TCC,DOWN O Shutdown request to Telechips L: Shutdown request
84 TCC,STATUS | Telechips status indication H: Normal, L: Error
85 VCCZ
86 PisTART O ON/OFF control in X157DC-DC H: Start, L: Stop
87 V88
88,89 NC
90 ACCiDET | ACC detection H: ACC reduce voltage is detected, L: Normal
91 BU7DET | Backup power supply detection H: Backup reduce voltage is detected, L: Normal
92 PREiMUTEiFR O Preout mute (For front and rear) H: ON, L: OFF
93 (GPS,RST#) 0 Reserve (GPS reset output) L: Reset, H: Reset clear
94,95 NC
96 TsiDET | interruption request from electrostatic H: Detected
touch key
97 SYsiMREQ | Request from Telechips
98 SW7A | Panel release key detection
99 (Moni ,RST) 0 Reserve (Moni ucom Reset) L: Reset, H: Reset clear
100 SYS,SDATA 0 Communication data to Telechips

11

Page 30

DNX428OBT/5180/5280BT/5380/5380M
/53808T/5580BT/6040EX/6180/6480BT/6980

30

TEST MODE

information to be cleared
DC Offset information/ Memory function/ Retailer mode in-
formation

- Additional information

The following information is cleared when region code is
written using a jig.

Serial No./ Security code/ Touch compensation value/ LCD
adjustment value/ Mechanism position adjustment value/
DC Offset information/ Memory function/ Retailer mode in-
formation

Note: When the nonvolatile memory is replaced by the cus-
tomer service, above data are cleared (not set), so re-adjust
using the Test mode.

2.3.13 Version Check

When a USB memory with a specific file is connected dur-
ing the test mode, it will compare to see whether the version
and information written in the file matches, and determine
OK/NG.

However, perform this after the startup of the Navigation is
completed.

Screen shown in Figure 2.3.13 is displayed once the evalu-
ation result is obtained.

Version Check

Application Processor

ijstem urcom Result |

IParlel urcom Result

i | i
jNavigatlorlS/W j Result | ICapacltanceDetectlonlCI Result j
erStar j Result | |BTModule | Result j
jovsamoF/E j Result | |PIN Code | Result j
jDvsamo B/E j Result | Region | Result j
jseseMap j Result | IDetailMap | Result j
jJunctionVlew j Result | |soMap | Result j

Figure 2.3.13 Version Check result display screen

Result column display specification
OK : Display when the result of Version Check is OK.

Background of display area is blue at this point.

NG : Display when the result of Version Check is NG.
Background of display area is red at this point.

Skip : Display when it is not target for Version Check.
If you have an item you want to make out of target of
Version Check, define ;" in the specific file placed in
the USB memory.

* Background of the screen will be blue if all the items were
not NG.

Perform Reset or Power OFF/ON after the Version Check is
completed.

2.3.14 End of the test mode
Perform Reset when ending the test mode. (Test mode will
continue by performing ACC OFF/ON or Power OFF/ON.)

2.3.15 Other
Do not operate the Back Up Memory function during the
Test mode.

There are the following restrictions during the test mode.

- It will not switch to R-CAM video even if Reverse interrupt
occurs while the test mode dedicated screen is display-
ing. (There is no problem when displaying a screen other
than the test mode dedicated screen.)

- It will not transfer to Screen adjustment screen when Ten-
key 6 is pressed while displaying the test mode dedicated
screen. (There is no problem when displaying a screen
other than the test mode dedicated screen.)

- It will not transfer to Flicker adjustment screen when Ten-
key 0 is pressed while displaying other than the test mode
dedicated screen. (There is no problem when displaying
the test mode dedicated screen.)
