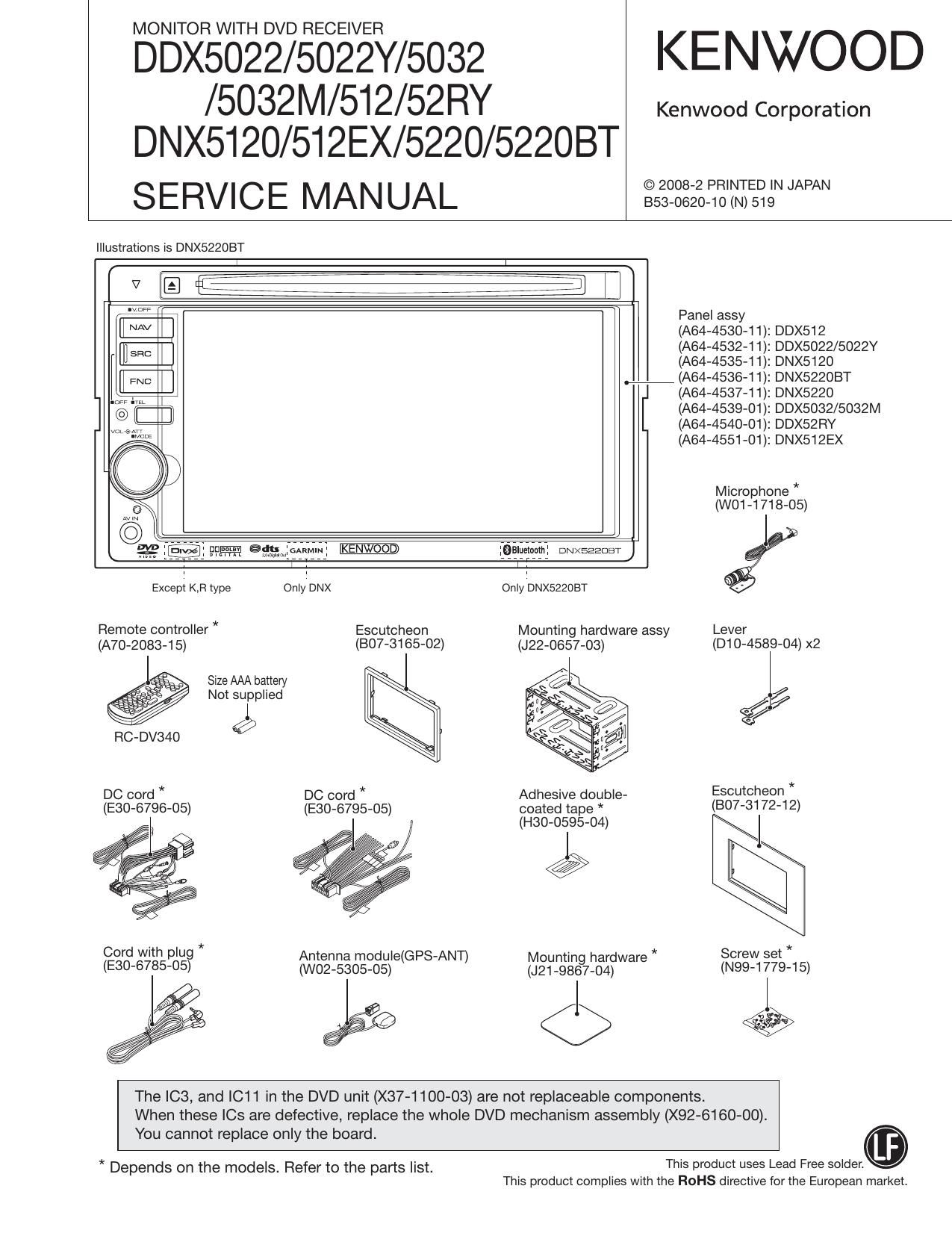

MONITOR WITH DVD RECEIVER
DDX5022/5022Y/5032 KENWOOD
/5032M/512/52RY Kenwood Corporation
DNX5I20/512EX/5220/52208T
SERVICE MANUAL sszNgzgifiz'tiiegNNNN
Illustrations is DNX522OBT
N [E fleeiiii i 7 iiiifij 7
"W Panel assy
[i AV l (AM-453041): DDX512
EH SEC (AM-453241): DDX5022/5022Y
(A64-4535-11): DNX5120
we (AM-453641): DNX5220BT
(A64-4537-11): DNX5220
n@ i[ ii (A64-4539»01): DDX5032/5032M
(A64-4540»01): DDX52RY
(A64-4551»01): DNX512EX
Microphone *
(W01-1718-05)
Jgp ammiftwil 9915211101111 owxeaaom)
1 1
Except K,Fl type Only'DNX Only'DNX5220BT
Remote controller * Escutcheon Mounting hardware assy Lever
(A70-2083-15) (BO7-3165-02) (J22-0657-03) (D10-4589-04) x2
Size AAA battery
Not sulpplied %/
RC-DV340 W
DC cord * DC cord * Adhesive double- Escutcheon *
(E30-6796-05) (E30-6795-05) coated tape * (307-3172-12)
, (H30-0595-04) J
Cord with plug * Antenna module(GPS-ANT) Mountin hardware * Screw set *
(E30-6785-05) (W02-5305-05) (J21_98§7_04) (N99-1779-15)
ee <5 ,.
The IC3, and IC11 in the DVD unit (X37-1100-03) are not replaceable components.
When these le are defective, replace the whole DVD mechanism assembly (X92-6160-00).
You cannot replace only the board.
This product uses Lead Free solder.
* Depends on the models. Refer to the parts list.
This product complies with the ROHS directive for the European market.
