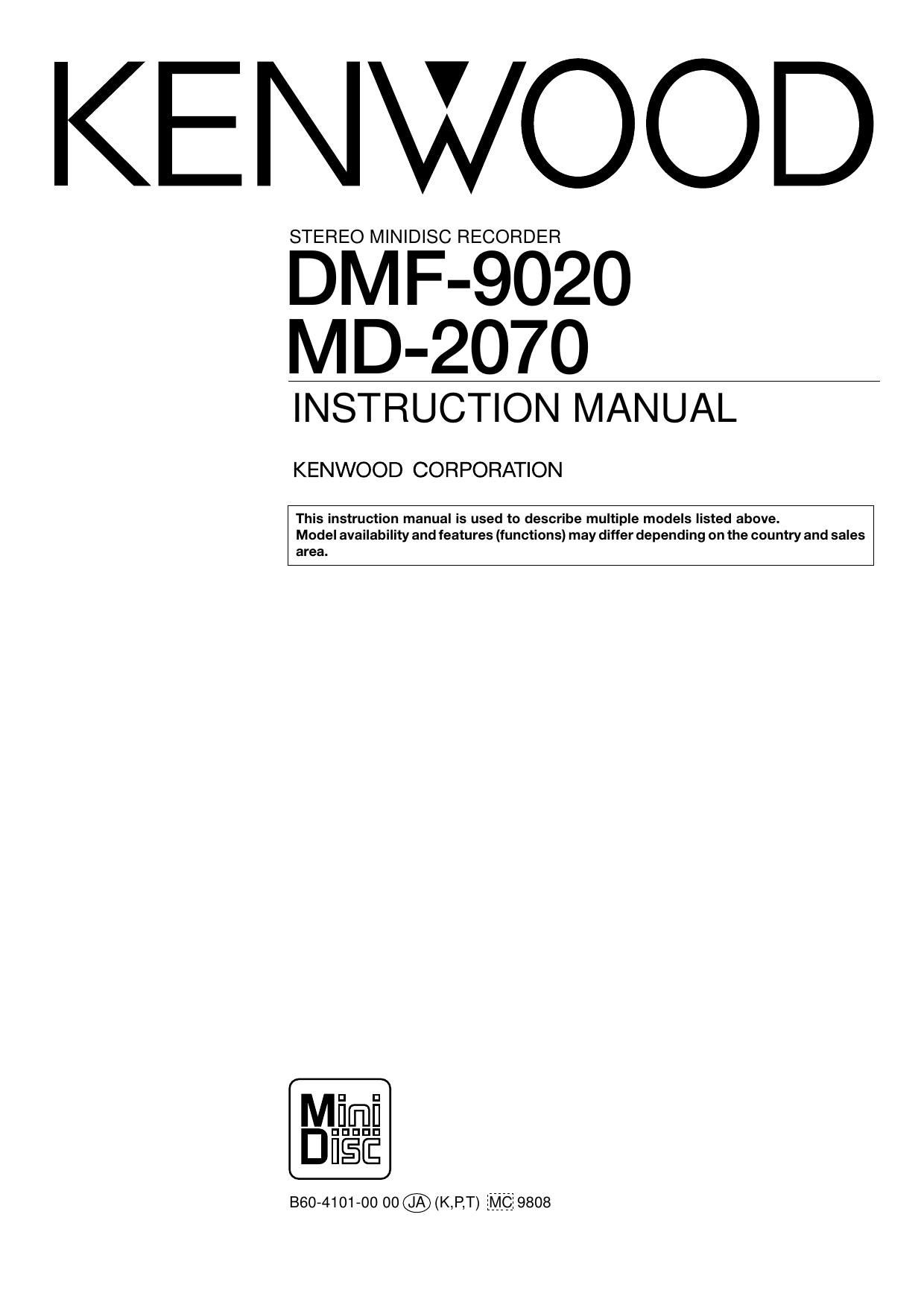

Kenwood DMF 9020 Owners Manual
This is the 56 pages manual for Kenwood DMF 9020 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DMF 9020 Owners Manual (Ocr-read)
Page 1
DMF-9020/MD-2070 (En) 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION Introduction Before applying power The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit. CLASS 1 LASER PRODUCT The marking of products using lasers (Except for some areas) WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Safety precautions Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer.If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT :The wires in the mains lead are coloured in accordance with the following code : Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three - pin plug. For the United Kingdom CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. Caution : Read this section carefully to ensure safe operation. Units are designed for operation as follows. U.S.A. and Canada ................................................................................................................................................................ AC 120 V only U.K. ........................................................................................................................................................................................... AC 230 V only REQUIREMENT BY NEDERLAND GAZETTE Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste.
Page 2
DMF-9020/MD-2070 (En) 3 Introduction .......................................................................................................................................... 2 Before applying power ..................................................................................................................... 2 Safety precautions ............................................................................................................................ 2 Contents ........................................................................................................................................... 3 Accessories ...................................................................................................................................... 4 Special feature .................................................................................................................................. 5 IMPORTANT SAFEGUARDS ............................................................................................................... 6 Information that you should know .................................................................................................... 8 Safety Precautions ............................................................................................................................ 8 Maintenance ..................................................................................................................................... 9 System connections .......................................................................................................................... 10 Names and functions of parts .......................................................................................................... 12 Display/Main unit ............................................................................................................................ 12 Remote control unit ........................................................................................................................ 14 Operation of remote control unit ..................................................................................................... 15 Playback of Mini Disc ........................................................................................................................ 16 Playing tracks in order from track No. 1 ......................................................................................... 16 Searching a desired track by its title (TITLE SEARCH) ................................................................... 17 Playback from desired track ........................................................................................................... 18 Random playback ........................................................................................................................... 18 Programming ..................................................................................................................................... 20 Programming tracks in a desired order ..........................................................................................20 Repeated playback ......................................................................................................................... 22 Recording-related keys ..................................................................................................................... 23 AUTO/MANU. key .......................................................................................................................... 23 MONITOR key ................................................................................................................................ 23 REC MODE key .............................................................................................................................. 23 Automatically starting recording when the track starts (SOUND SYNCHRO REC) ....................... 25 Automatically pausing recording when the track ends (REC AUTO PAUSE) ................................. 25 Starting recording from the sound before the current sound (MEMORY REC) ............................ 25 Recording (ANALOG input) .............................................................................................................. 26 ANALOG recording ......................................................................................................................... 26 Recording (DIGITAL input) ................................................................................................................ 28 DIGITAL recording .......................................................................................................................... 28 Synchro recording with CD playback ..............................................................................................30 DIGITAL recording and SCMS ........................................................................................................ 30 Editing ................................................................................................................................................. 31 Selecting the editing function type ................................................................................................. 31 Moving the track being played (TRACK MOVE) ............................................................................. 32 Moving several tracks at a time (QUICK MOVE) ............................................................................ 34 Dividing the track being played (TRACK DIVIDE) ........................................................................... 36 Combining the track being played (TRACK COMBINE) ................................................................. 38 Erasing the track being played (TRACK ERASE) ............................................................................ 40 Erasing one or more track at a time (QUICK ERASE) .................................................................... 42 Editing titles .................................................................................................................................... 44 CD text display and copy .................................................................................................................. 48 Changing the displayed contents .................................................................................................... 49 TIME DISPLAY key ......................................................................................................................... 49 METER key ..................................................................................................................................... 49 Timer operations ............................................................................................................................... 50 Timer playback, timer recording ..................................................................................................... 50 In case of difficulty ............................................................................................................................ 51 Specifications ..................................................................................................................................... 54 Contents Introduction Caution : Read the pages marked carefully to ensure safe operation.
Page 8
DMF-9020/MD-2070 (En) 9 Caution on condensation Condensation (of dew) may occur inside the unit when there is a great difference in temperature between this unit and the outside. This unit may not function properly if condensation occurs. In this case, leave the unit for a few hours with the power left ON, and restart the operation after the condensation has dried up. Be specially cautious against condensation in a follow- ing circumstance: When this unit is carried from a place to another across a large difference in temperature, when the humidity in the room where this unit is installed increases, etc. Memory backup The typical period for which the memory can be backed up while the power cord is unplugged or the POWER key is set to the OFF position is about 3 weeks, though this may be variable depending on the surrounding environment. In case of long hours of power failure or slipping out of the power cord, the data related to recording and editing (that is usually recorded at the moment the Mini Disc is ejected) may be cleared or destroyed before it is written in the Mini Disc. Remember that the data lost cannot be recovered. After recording or editing, be sure to eject the Mini Disc so that the recording or editing data can be written in the disc. Reference notes Maintenance of the set When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may cause discoloration. In regard to contact cleaner Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component. Maintenance US and foreign patents licensed from Dolby Laboratories Licensing Corporation. Information that you should know Unplug power cord CD TEXT CD TEXT is a system that is standardized to allow the display of text data (disc name or song title, artist name etc.) that is recorded on CDs in addition to music. By digitally connecting this unit with a CD player (CD TEXT compatible), the text data of a CD can be copied to an MD. Presently, however, some CDs are equipped with a copy prevention code that prohibits the copying of this data. In the case of such CDs, copying of text data is not possible. On CDs that do not include the text data copy prevention code, the operation of ÒCD text display and copyÓ is possible. i
Page 22
DMF-9020/MD-2070 (En) 23 Recording-related keys AUTO / MANU. key This key is used to select whether track numbers are to be marked automatically during recording or they are to be marked manually during or after recording. The track num- bers can be used to locate the beginning of a track during playback or programming tracks. Select before starting recording.AUTO If a no-sound input has lasted for the time set for the AUTO TIME function during recording, the track number will be incremented automatically by Ò1Ó. Usually, use this position for recording. Use this mode when recording all of the tracks in a CD. When recording music containing a continuous section with a very low level, for example when recording classic music, the track number may be incremented by Ò1Ó after such a section. In this case, cancel the track number later. It is recommended to use the MANUAL mode when recording such a kind of music. During digital recording of CD, the track number is incremented auto- matically by Ò1Ó according to the data contained in the digital informa- tion. The no-sound blank is not detected. When the CD track number is increased during manual search of a CD, the track number recorded on the MD may sometimes fail to be incremented. A no sound track may sometimes created at the moment the played CD stops. MANUALWith this setting, the MD track number is not incremented automatically during recording. Track numbers can be marked either during editing (by pressing the EDIT key) or after recording (by executing the TRACK DIVIDE operation ß ). Even when ÒMANUALÓ is set, the AUTO CUT and AUTO PAUSE functions work if the ÒAUTO CUTÓ and ÒREC AUTO PAUSEÓ settings are turned on. This setting is convenient when recording a CD which has been recorded in live or which contains very low-level sound such as a classical music CD. Press in stop mode. Press to monitor the sound being input from the source while the unit is in stop mode. When the REC INPUT is DIGITAL, the sampling rate (48 kHz, 44.1 kHz, 32 kHz) of the input digital signal can be displayed by pressing this key. MONITOR key Extinguished in ÒAUTOÓ mode, lit in ÒMANUALÓ mode. ÒMONITORÓ and ÒSampling rateÓ litghts up OVER ( -dB) MANUAL RL¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL OVER ( -dB) RL ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL Main unit Remote control unit (Remote control unit) AUTO/MANU. MONITOR Each press switches the mode. 1REC MODE : off 2REC MODE : on 1Switch the REC MODE on. 2Select the setting adjustment mode. 3Adjust the setting value. The recording-related settings can be adjusted precisely by selecting the proper display modes. ÖStep 3 consists of adjusting the setting of the ÒSetting adjustment modeÓ selected in step 2. ÖThe ÒD.REC LEVELÓ and ÒFADE TIMEÓ settings are not used during analog source recording. ÖTo end the setting adjustment, press the REC MODE/CHARAC. key again. Selecting the setting adjustment mode The modes are switched by rotating the JOG DIAL. D. REC LEVEL? :Digital recording level setting. AUTO CUT? : AUTO CUT on/off selection. AUTO TIME? : Setting of the time for detecting a no-sound blank section during automatic track number marking. AUTO LEVEL? :Automatic track number marking no-sound blank detection level and SOUND SYNCHRO REC, AUTO CUT and REC AUTO PAUSE sound detection level setting FADE TIME? :Setting of the fading time in fade-in and fade- out. REC= WRITING? :Setting of the UTOC writing after recording. To change another setting, press the JOG DIAL (PUSH SET knob).(This returns to step 2 above.) REC MODE key Set the selection. (by pressing the JOGDIAL). 4¢ U P DOWN PUSH SETJOG DIAL 4¢ U P DOWN PUSH SETJOG DIAL Set the selection. (by pressing the JOGDIAL). 4¢ U P DOWN PUSH SETJOG DIAL 4¢ U P DOWN PUSH SETJOG DIAL MONITOR REC MODE /CHARAC.
Page 24
DMF-9020/MD-2070 (En) 25 Recording-related keys Set the recording pause mode. ¦» Recording can be started or paused simultaneously with the sound and from the sound approximately 6 seconds before the current sound. Preparation Automatically starting recording when the track starts (SOUND SYNCHRO REC) Recording starts when a sound above a certain level is input. This function is particularly convenient when combined with the AUTO CUT function to record selected tracks. Press while in the recording pause mode. When the track starts, recording starts. Ö OVER ( -dB) RL SOUNDS YNC. ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL ÷The sound detection level can be adjusted with the REC MODE ÒAUTO LEVELÓ setting. ¢ ÖWhen the ¦ key is pressed again, the normal recording pause mode is set. ÖFor some music sources, the beginning of the track may be cut off. Automatically pausing recording when the track ends (REC AUTO PAUSE) Recording is automatically paused when the sound input is below a certain level for over 3 seconds or when the track number changes during digital recording of a CD. This function comes in handy when you only want to record one track from the CD. Press while in the recording or recording pause mode. ÖThe sound detection level can be adjusted with the REC MODE ÒAUTO LEVELÓ setting. ¢ ÖPress the 7 key or the AUTO PAUSE key again to cancel the REC AUTO PAUSE mode. AUTO PAUSE OVER ( -dB) A . PAUSE RL ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL ÒA. PAUSEÓ lights up Starting recording from the sound before the current sound (MEMORY REC) Recording starts from the sound 6 seconds before the point at which the key is pressed. Use this for example when recording radio programs. Press while in the recording pause mode. Recording starts from the sound 6 seconds be- fore the current sound. SET ÖIt is not possible to start recording from the sound 6 seconds before the current sound if less than 6 seconds have passed in the recording pause mode. ÖWhen the fade mode is ON, the fade mode is switched OFF before recording starts.
Page 25
DMF-9020/MD-2070 (En) 26 Adjust the settings if required. 1 2 1Switch the REC MODE on. 2Select the setting adjustment mode. 3Set the selection (by pressing the JOG DIAL). Go to step 2 if setting adjustments are not required. The input jacks connected with audio cords accept analog signals. This unit records the analog signal from the REC IN jacks by converting it into digital signal. (This recording is simply referred to as analog recording.) Recording (ANALOG input) ÖMONO cannot be selected during recording pause. ÖThe REC INPUT cannot be changed during pause in the MONO mode. ÖThe analog Òmonaural long-play modeÓallows to double the recording time compared to recording in the stereo mode. Preparation Each press switches the mode. 1REC MODE : off 2REC MODE : on Select ANALOG or MONO. Each press switches the mode. 1ANALOG : Analog Òstereo modeÓ 2DIGITAL 1 : Coaxial input mode 3DIGITAL 2 : Optical input mode 4DIGITAL 3 : Coaxial input mode 5MONO : Analog Òmonaural long-play modeÓ ÒANALOGÓ lights up 1 Open the write protect tab of the Mini Disc to make it recordable. 8 2 Load the Mini Disc. 3 Check the remaining recording time. o 4 Set the amplifierÕs input selector to the source to be recorded. ANALOG recording ÖFor details on the setting adjustment modes, see ÒREC MODE keyÓ. £ OVER ( -dB) RL ANALO G ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL REC MODE /CHARAC. 4¢ U P DOWN PUSH SETJOG DIAL 4¢ U P DOWN PUSH SETJOG DIAL REC INPUT The modes are switched by rotating the JOG DIAL. D. REC LEVEL? :Digital recording level setting. AUTO CUT? : AUTO CUT on/off selection. AUTO TIME? : Setting of the time for detecting a no-sound blank section during automatic track number marking. AUTO LEVEL? :Automatic track number marking no-sound blank detection level and SOUND SYNCHRO REC, AUTO CUT and REC AUTO PAUSE sound detection level setting FADE TIME? :Setting of the fading time in fade-in and fade- out. REC= WRITING? :Setting of the UTOC writing after recording. ÖThe ÒD.REC LEVELÓ and ÒFADE TIMEÓ settings are not used during analog source recording.
Page 36
DMF-9020/MD-2070 (En) 37 Editing ÖIt takes a while until the execution completes. ÖThe track is divided into two tracks. ÖThe unit enters pause mode at the second track. ÖThere is no blank space left between the two tracks. ÖTrack division may sometimes be impossible due to the limitations of the MD standard. ÖIf you execute an editing operation by mistake, the condition before editing can be recovered by performing the ÒEDIT CANCELÓ opera- tion. Ü Execute the track divide operation. Eject the Mini Disc. Divided track (second half) Divided track (first half) Should be approx. 2 sec. or longer. Image of track division Image of preview Display after execution. ÒEDIT NOW!Ó: When editing is in progress ÒCOMPLETE!Ó: When editing is completed successfully ÒCANÕT EDITÓ: When editing is incomplete While ÒWRITINGÓ is displayed, do not apply shock or vibration to the unit because information is being written on the Mini Disc. Up to 255 track numbers can be inserted additionally by repeating 1 to 3 for each of them. Approx. 2 sec. Fine adjustment range in 32 steps The point where the EDIT / SPACE key is pressed N ODIS C WRITING EJECT A B C 1 2 3 A B C 1 2 4 3 A B 1 2 C 3 Note Note Note 3 4 Mini Disc has been ejected. Information is being written. ENTER /TIME DISPLAY 0
