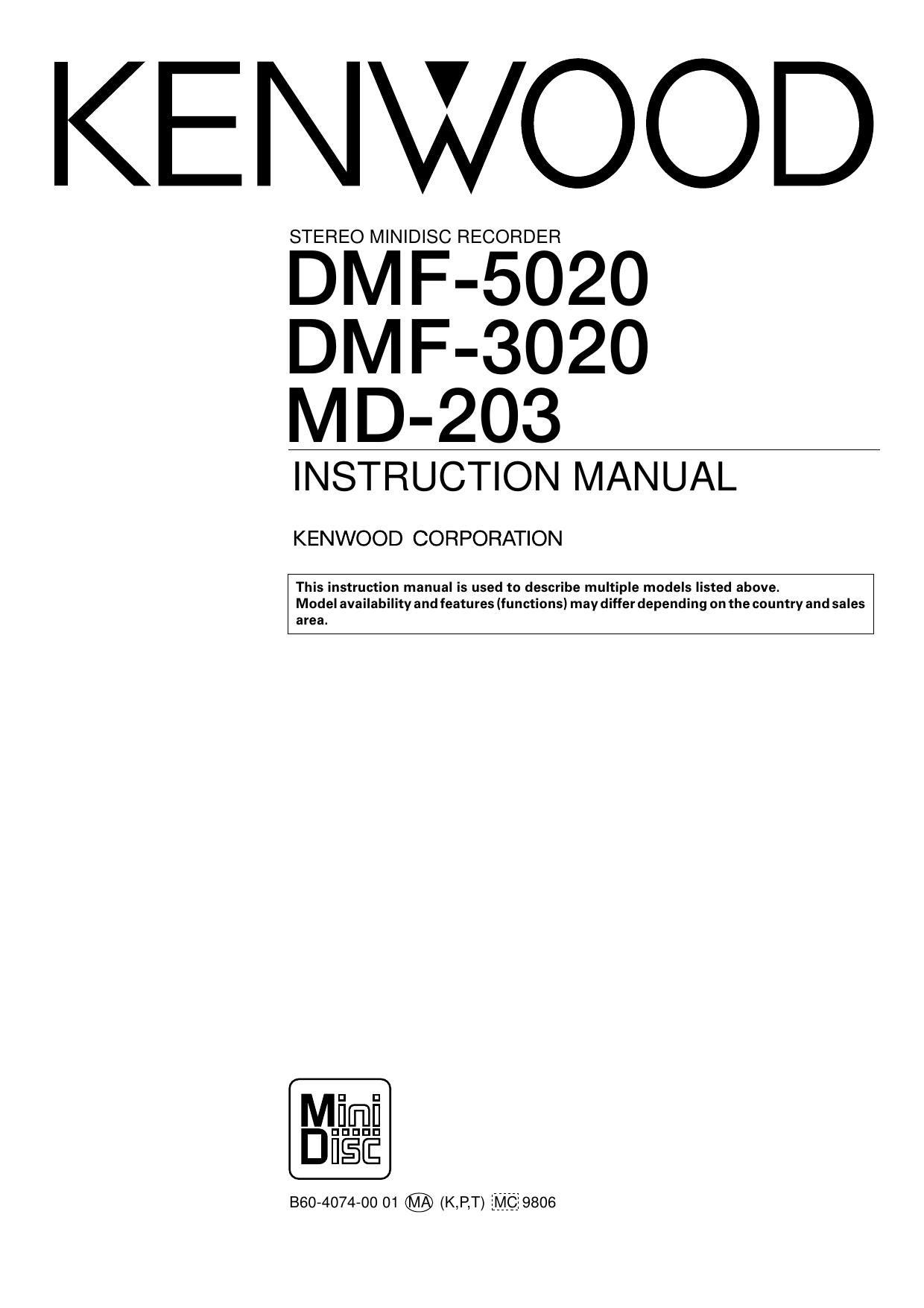

Kenwood DMF 5020 Owners Manual
This is the 56 pages manual for Kenwood DMF 5020 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DMF 5020 Owners Manual (Ocr-read)
Page 1
DMF-5020/DMF3020/MD-203 (En) 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION Introduction Before applying power The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit. CLASS 1 LASER PRODUCT The marking of products using lasers (Except for some areas) WARNING :TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Safety precautions Factory fitted moulded mains plug 1. The mains plug contains a fuse. For replacement, use only a 13- Amp ASTA-approved (BS1362) fuse. 2. The fuse cover must be refitted when replacing the fuse in the moulded plug. 3. Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer.If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. IMPORTANT :The wires in the mains lead are coloured in accordance with the following code : Blue : Neutral Brown : Live Do not connect those leads to the earth terminal of a three - pin plug. For the United Kingdom CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ÒDANGEROUS VOLTAGEÓ WITHIN THE PRODUCTÕS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. Caution : Read this section carefully to ensure safe operation. Units are designed for operation as follows. U.S.A. and Canada ................................................................................................................................................................ AC 120 V only U.K. ........................................................................................................................................................................................... AC 230 V only REQUIREMENT BY NEDERLAND GAZETTE Batteries are supplied with this product. When they empty, you should not throw away. Instead, hand them in as small chemical waste.
Page 2
DMF-5020/DMF3020/MD-203 (En) 3 Introduction .......................................................................................................................................... 2 Before applying power ..................................................................................................................... 2 Safety precautions ............................................................................................................................ 2 Contents ........................................................................................................................................... 3 Accessories ...................................................................................................................................... 4 Special feature .................................................................................................................................. 5 IMPORTANT SAFEGUARDS ............................................................................................................... 6 Information that you should know .................................................................................................... 8 Safety Precautions ............................................................................................................................ 8 Maintenance ..................................................................................................................................... 9 System connections .......................................................................................................................... 10 Names and functions of parts .......................................................................................................... 12 Display/Main unit ............................................................................................................................ 12 Remote control unit (DMF-5020) .................................................................................................... 14 Remote control unit (DMF-3020/MD-203) ..................................................................................... 15 Operation of remote control unit ..................................................................................................... 16 Playback of Mini Disc ........................................................................................................................ 17 Playing tracks in order from track No. 1 ......................................................................................... 17 Searching a desired track by its title (TITLE SEARCH) ................................................................... 18 Playback from desired track ........................................................................................................... 19 Random playback ........................................................................................................................... 19 Programming ..................................................................................................................................... 21 Programming tracks in a desired order ..........................................................................................21 Repeated playback ......................................................................................................................... 23 Recording-related keys ..................................................................................................................... 24 AUTO/MANU. key .......................................................................................................................... 24 MONITOR key ................................................................................................................................ 24 REC MODE key .............................................................................................................................. 24 Automatically starting recording when the track starts (SOUND SYNCHRO REC) ....................... 26 Automatically pausing recording when the track ends (REC AUTO PAUSE) ................................. 26 Starting recording from the sound before the current sound (MEMORY REC) ............................ 26 Recording (ANALOG input) .............................................................................................................. 27 ANALOG recording ......................................................................................................................... 27 Recording (DIGITAL input) ................................................................................................................ 29 DIGITAL recording .......................................................................................................................... 29 Synchro recording with CD playback ..............................................................................................31 DIGITAL recording and SCMS ........................................................................................................ 31 Editing ................................................................................................................................................. 32 Selecting the editing function type ................................................................................................. 32 Moving the track being played (TRACK MOVE) ............................................................................. 33 Moving several tracks at a time (QUICK MOVE) ............................................................................ 35 Dividing the track being played (TRACK DIVIDE) ........................................................................... 37 Combining the track being played (TRACK COMBINE) ................................................................. 39 Erasing the track being played (TRACK ERASE) ............................................................................ 41 Erasing one or more track at a time (QUICK ERASE) .................................................................... 43 Editing titles .................................................................................................................................... 45 Changing the displayed contents .................................................................................................... 49 TIME DISPLAY key ......................................................................................................................... 49 METER key ..................................................................................................................................... 49 Timer operations ............................................................................................................................... 50 Timer playback, timer recording ..................................................................................................... 50 In case of difficulty ............................................................................................................................ 51 Specifications ..................................................................................................................................... 54 Contents Introduction Caution : Read the pages marked carefully to ensure safe operation.
Page 27
DMF-5020/DMF-3020/MD-203 (En) 28 Each press switches the mode. 1goes off (AUTO) :Track numbers are marked automatically. ¢ 2MANUAL :Track numbers can be marked as desired. ¢ ÖThe unit enters record-pause mode automatically when the ¦ key is pressed. 1 Play the source to be recorded. 2 Adjust the recording level. ÖDecrease the level if the red segments of the peak level meter light. Extinguished in ÒAUTOÓ mode, lit in ÒMANUALÓ mode. Recording is not possible if the following characters are displayed. ÒDISC FULLÓ: Disc is full \Erase undesired tracks. qe ÒPROTECTEDÓ: The accidental erasure protect tab is open. \Close it. 8 ÒPLAY ONLYÓ: A playback-only Mini Disc is loaded. \Load a recordable Mini Disc. ÖWhen the EDIT / SPACE key is pressed during recording, a track number is inserted in that position. After recording, eject the Mini Disc. Start recording. Information is being written.Mini Disc has been ejected. Select ÒAUTOÓ or ÒMANUALÓ. (Remote control unit only) Adjust the recording level. (Main unit only) To increase level To decrease level 1 Press the 8 key. 2 Play the source to be recorded from the beginning. Recording (ANALOG input) OVER ( -dB) MANUAL RL 001 ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL N ODIS C WRITING EJECT 53 6 7 ÖThe eject (0)key is not accepted during recording. While ÒWRITINGÓ is displayed, do not apply shock or vibration to the unit because information is being written on the Mini Disc. Note Note Note Enter record-pause mode. 4 AUTO/MANU. REC (DMF-3020/MD-203)(DMF-5020) MINREC LEVEL MAX 0
Page 28
DMF-5020/DMF-3020/MD-203 (En) 29 1 Go to step 2 if setting adjustments are not required. 2 3 1Switch the REC MODE on. 2Select the setting adjustment mode. 3Set the selection. Adjust the settings if required. Recording (DIGITAL input) Recording is possible using recordable Mini Discs. When this unit is connected with a component equipped with digital output, such as a CD player, through a digital cord or optical fiber cable, the signal input through the DIGITAL input jack can be recorded in the digital format (this recording is referred to as digital recording). Enjoy high-quality sound of digital recording! Preparation 1 Open the write protect tab of the Mini Disc to make it recordable. 8 2 Load the Mini Disc. 3 Check the remaining recording time. o 4 Set the amplifierÕs input selector to the source to be recorded. Select AUTO or MANUAL. (Remotecontrol unit only) Select one of ÒDIGITAL 1, 2 Ó. Each press switches the mode. 1REC MODE : off 2REC MODE : on Each press switches the mode. 1ANALOG :Analog Òstereo modeÓ 2DIGITAL 1 :Optical input mode 3DIGITAL 2 :Coaxial input mode 4MONO :Analog Òmonaural long-play modeÓ Each press switches the mode. 1goes off (AUTO) :Track numbers are marked automatically. ¢ 2MANUAL :Track numbers can be marked as desired. ¢ ÖFor details on the setting adjustment modes, see ÒREC MODE keyÓ. ¢ DIGITAL recording REC MODE/CHARAC. 4 ¢ JOG DIAL 4¢ SET REC INPUT AUTO/MANU. The modes are switched by rotating the JOG DIAL. AUTO CUT? : AUTO CUT on/off selection. AUTO TIME? : Setting of the time for detecting a no-sound blank section during automatic track number marking. AUTO LEVEL? :Automatic track number marking no-sound blank detection level and SOUND SYNCHRO REC, AUTO CUT and REC AUTO PAUSE sound detection level setting. REC= WRITING? :Setting of the UTOC writing after recording.
Page 47
DMF-5020/DMF-3020/MD-203 (En) 48 Editing CHARA. key: Press to switch the character groups on the character display. Manual search (1, Á) keys:Press to move the cursor during title input operation. When the cursor is (lower half only) : The input character is inserted before the character in the cursor position. When the cursor is : The input character replaces the character in the cursor position. DELETE key: Press to clear (delete) the character on the cursor position and move the characters after it by one character backward. Pressing the key successively (or holding it depressed) allows to clear a title easily. EDIT / SPACE key: Press to enter (insert) a space (one blank character) immediately before the character in the cursor position and move the characters after it by one character forward. Multiple spaces can also be entered by pressing the key successively (or holding it depressed). The spaces are mainly used to leave spaces for later addition of characters before adding characters to a title. 4 5 Eject the Mini Disc. Execute title change or deletion. While ÒWRITINGÓ is displayed, do not apply shock or vibration to the unit because information is being written on the Mini Disc. Scrolling the display There may be cases in which the amount of information is too large to be displayed at a time during the title input operation, etc. In such a case, pressing the 1 or Á key repeatedly allows to move the displayed characters to the left (or right) so that other information which has been hidden can be displayed. This leftward or rightward movement of the display characters is referred to as Òscrolling.Ó Example of scrolling Displayed area (All cannot be displayed.) 1 Enter the title in memory. The title is scrolled automatically. 2 Complete the operation. Information is being written.Mini Disc has been ejected. Title editing function keys Main unit Scrolling \ | Scrolling N ODIS C WRITING EJECT ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ Note Note Note KEN OVER ( -dB) RL TITLE ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL ORE! OVER ( -dB) RL TITLE ST DSI ¥ 15 9 12 7 51 3 40 30 21180 SEARCH PGM MONITORANALOG 32kHz 2 13 48kHz 44.1kHz DIGITAL C Main unit Remote control unit Main unit Remote control unit ENTER INPUT SEARCH TITLE 0 (DMF-5020 only) ªª/CUR.L CUR.R/ ££ Á 1 CURSOR 1Á 0 TITLE INPUT ENTER/TIME DISPLAY Remote control unit (DMF-5020) Remote control unit (DMF-3020/MD-203)
Page 53
DMF-5020/DMF-3020/MD-203 (En) 54 Specifications DMF-5020 [Format] System .......................................... Minidisc digital audio system Laser ............................................................. Semiconductor laser Recording method ............ Field modulation overwrite method Audio compression . ATRAC (Adaptive TRansform Acoustic Coding) Playing rotation .................... Approx. 400 rpm ~ 900 rpm (CLV) [D/A conversion] D/A conversion .................... 1 Bit (24 Bit D.R.I.V.E. conversion) Oversampling ........................................................ 8 fs (352.8 kHz) [A/D converter] A/D converter ...................... 5 th order sigma-delta conversion Sampling frequency ........................................................ 44.1 kHz [Digital audio performance] Frequency responce (playback mode) ... 8 Hz ~ 20 kHz (± 1 dB) Signal to noise ratio (playback mode) .......... More than 105 dB Dynamic range (playback mode) ..................... More than 94 dB Total harmonic distortion (1 kHz, playback mode) .. Less than 0.007 % Wow & flutter .............................. Less than unmeasurable limit Analog input sensitivity / input impedance . 500 mV / 22 kW or more Analog output level / output impedance ........ 2.0 V / Less than 400 W Headphone output ........................................... 20 mW/32 W load Digital input Coxaial................................................................ 0.5 Vp-p / 75 W Optical(Wave length 660 nm) ................. - 15 dBm ~ - 21 dBm Digital output Coxaial................................................................ 0.5 Vp-p / 75 W Optical(Wave length 660 nm) ................. - 15 dBm ~ - 21 dBm [General] Power consumption .............................................................. 18 W Dimensions ....................................... W : 440 mm (17 - 5 / 16Ó) ........................................................... H : 94 mm ( 3 - 11 / 16Ó) ........................................................... D : 379 mm (14 - 15 / 16Ó) Weight (Net) ............................................................. 4.0 kg (8.8 lb) 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature). Notes Notes DMF-3020/MD-203 [Format] System .......................................... Minidisc digital audio system Laser ............................................................. Semiconductor laser Recording method ............ Field modulation overwrite method Audio compression . ATRAC (Adaptive TRansform Acoustic Coding) Playing rotation .................... Approx. 400 rpm ~ 900 rpm (CLV) [D/A conversion] D/A conversion ....................................................................... 1 Bit Oversampling ........................................................ 8 fs (352.8 kHz) [A/D converter] A/D converter ...................... 5 th order sigma-delta conversion Sampling frequency ........................................................ 44.1 kHz [Digital audio performance] Frequency responce (playback mode) ... 8 Hz ~ 20 kHz (± 1 dB) Signal to noise ratio (playback mode) .......... More than 100 dB Dynamic range (playback mode) ..................... More than 90 dB Total harmonic distortion (1 kHz, playback mode)....Less than 0.01 % Wow & flutter .............................. Less than unmeasurable limit Analog input sensitivity / input impedance . 500 mV / 22 kW or more Analog output level / output impedance ........ 2.0 V / Less than 400 W Headphone output ........................................... 20 mW/32 W load Digital input Coxaial................................................................ 0.5 Vp-p / 75 W Optical(Wave length 660 nm) ................. - 15 dBm ~ - 21 dBm Digital output Coxaial................................................................ 0.5 Vp-p / 75 W Optical(Wave length 660 nm) ................. - 15 dBm ~ - 21 dBm [General] Power consumption .............................................................. 18 W Dimensions ....................................... W : 440 mm (17 - 5 / 16Ó) ........................................................... H : 94 mm ( 3 - 11 / 16Ó) ........................................................... D : 379 mm (14 - 15 / 16Ó) Weight (Net) ............................................................. 4.0 kg (8.8 lb)
