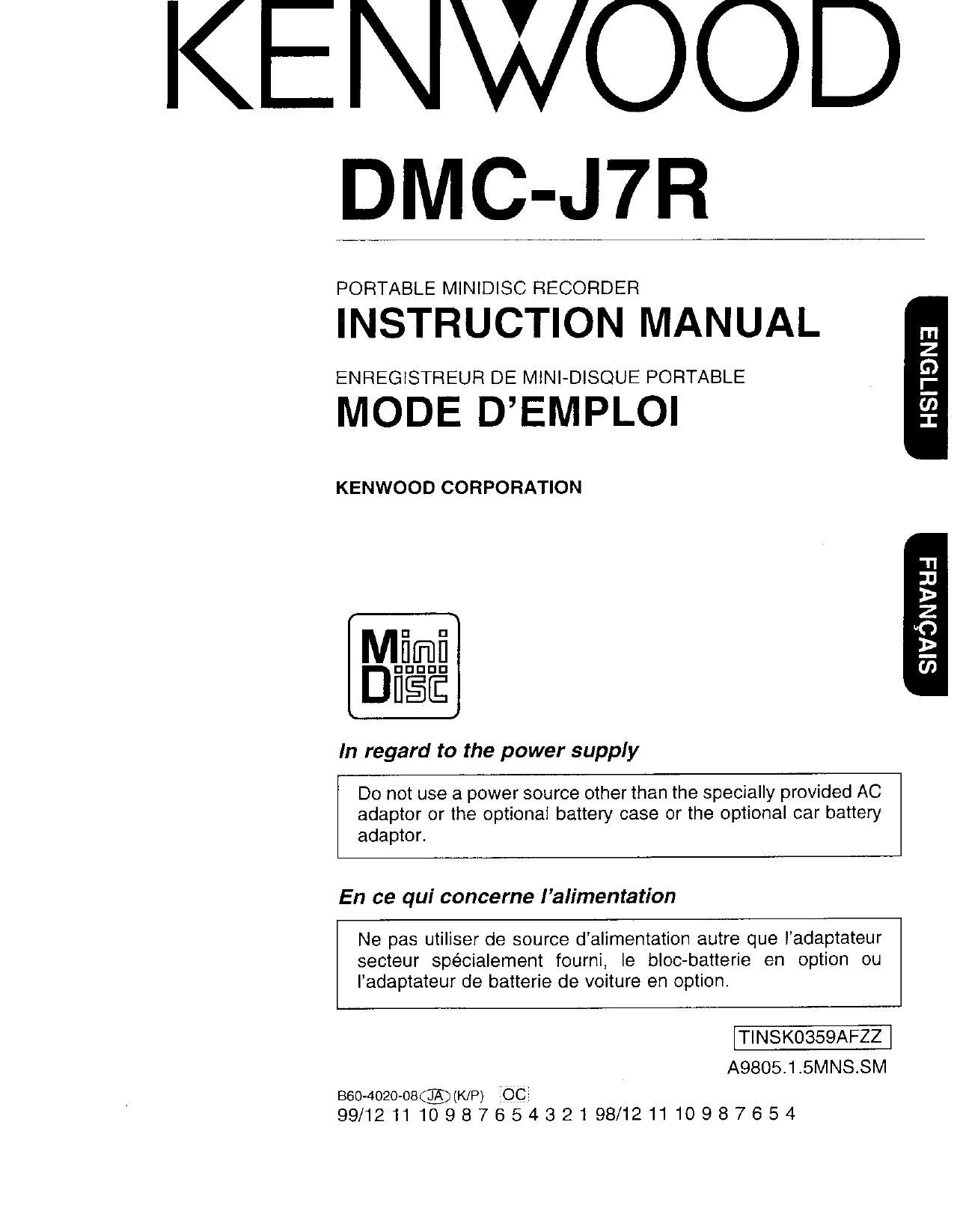

Kenwood DMCJ 7 R Owners Manual

Page 1

KENWOOD

DMC-J7R

PORTABLE MINIDISC RECORDER

INSTRUCTION MANUAL

ENREGISTREUR DE MINI-DISQUE PORTABLE

MODE DEMPLOI

rn
z
D
E
m
::

KENWOOD CORPORATION

SlVéNVHd

In regard to the power supply

Do not use a power source other than the specially provided AC
adaptor or the optional battery case or the optional car battery
adaptor.

En ce qui concerne Ialimentation

Ne pas utiliser de source dalimentation autre que Iadaptateur
secteur spécialement foumi, Ie bloc-batterie en option ou
ladaptateur de batterie de voiture en option.

TINSK0359AFZZ

A9805.1.5MNS.SM

Bao-4ozo-os®(K/P) :OC;
99/12111098765432198/121110987654

Page 2

INTRODUCTION A Caution: ead this page carefully to
ensure safe operation.

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will
not be lost.

Examine the unit for any possibility of shipping damage. If your unit is damaged or fails
to operate, notify your dealer immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee (the person or company receiv-
ing the unit) can file a claim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials for use should
you transport or ship the unit in the future.

Keep this manual handy for future reference.

WARNING NOTICE:

IN MOST CASES IT IS AN INFRINGEMENT OF COPYRIGHT TO MAKE COPIES OF
TAPES OR DISCS WITHOUT THE PERMISSION OF THE COPYRIGHT OWNERS.
ANYONE WISHING TO SHOULD CONTACT THE MECHANICAL COPYRIGHT PRO-
TECTION SOCIETY LIMITED, OR THE PERFORMING RIGHTS SOCIETY LIMITED.

Before applying power

AC adaptors are designed for operation as follows:

U.S.A. and Canada ..................................................................................... AC 120 V only

Safety precautions

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

US and foreign patents licensed from Dolby Laboratories Licensing Corporation

E-1

Page 3

ensure safe operation.

For the U.S.A.
FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifica
equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment may cause harmful interference to radio communications, if it is not installed

and used in accordance with the instructions. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

For CANADA

Canadian IC Compliance Notice
NOTICE: This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

For the U.S.A.

_ KENWOOD CORPORATION
CAUTION' . 2967-3, ISHIKAWA-CHO,
Use of controls or adjustments or perfor- HACHIOJl-SHI

mance of procedures other than those
specified herein may result in hazardous
radiation exposure.

TOKYO, JAPAN

KENWOOD CORP. CERTIFIES
THIS EQUIPMENT CONFORMS

In compliance with Federal Regulations,
following are reproductions of labels on,
or inside the product relating to laser
product safety.

TO DHHS REGULATIONS NO. 21
CFR 1040.10, CHAPTER I, SUB-
: CHAPTER J. .
l ______________________________________ _J

Location: Bottom Panel

E-2

Page 20

SYNC/FPLAY

AUTO MARK

l Recording tracks as a
single track

You can record several pieces of music as
a single track, disable the auto marker
function,

1 Press the EDIT/AUTO MARK button
while the recording is paused.

oo 0 42- A o OVER

1 «a-
f/«R \ i

\V J" I
thank u «T

thFlir

(The display will be blanked
out immediately.)

2 Press the >ll button.
0 Recording will start.

Note:

0 When making digital recordings using a
CD player or an MD player, track num-
bers will be created automatically re-
gardless of the setting of the auto
marker function.

Making a track number
automatically:

Press the EDIT/AUTO MARK button while
the recording is paused.

0 AUTO MARK" will be displayed.

I To start recording from the
middle of an existing track

You can erase a portion of a track that has

been already recorded and make a new

recording.

Warning:

0 All of the tracks that follow the newly
recorded track will be erased.

1 During playback, press the >II button
at the point where you want to begin
re-recording.

2 Press the RECORDING button.
0 To cancel the operation, press the
I / OFF button.

3 Press the ENTER/SYNC/FPLAY but-
ton.

0 All of the tracks and track names will be
erased, following the point where the
playback is paused.

0040 42- 4 cover: f 0040 u 4 DOVER
>au- r «rs-m

r i we
fi\/_ \ A\g \ i
\9/ - H j \y _ n L!

l TRACK /l.l .l r TRACK Ll l,
EEth-E I_Il=:.';-* r_ E r ,Ji

Number of the track
to be recorded next

4 Press the >ll button.

0 Recording will start.

Note:

0 When there is a track that you dont
want to erase after the point on the disc
where you want to make a new record-
ing, use the move function to move the
track and then make your recording
after that point.

E-19
