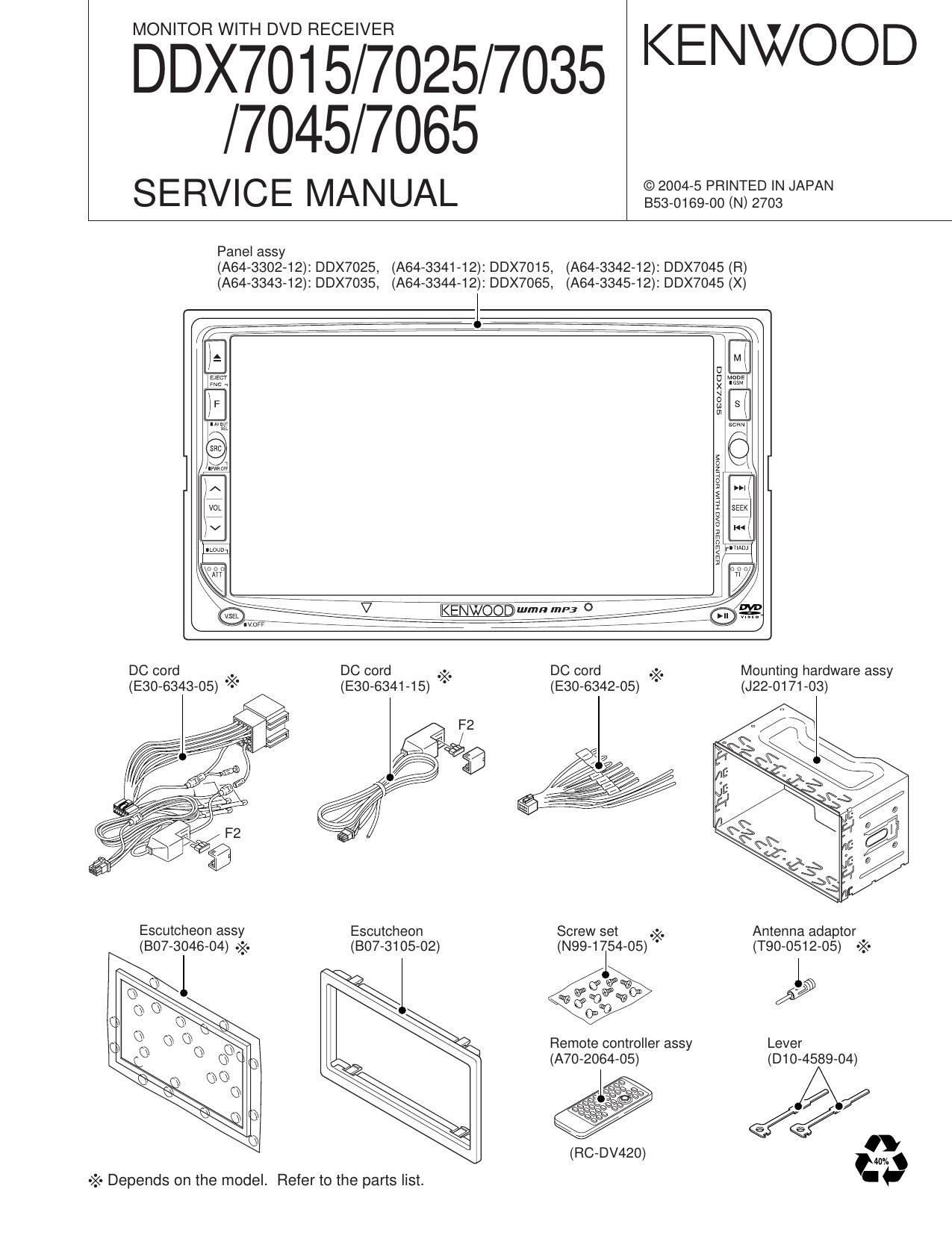

Kenwood DDX 7045 Service Manual

Page 85

DDX7015/7025/7035

>I< New parts
ParIs without Parts No. are not supplied.
Les articles non mentionnes dans la Parts No. ne sont as foumis.
Teile ohne Parts No. werden nicht geliefert. p DVD MECHANISM ASSY (X92-5020-00)
A N . . Desti- A N . . Desti-
Re1.No. g Vev Parts No. Description nation Re1.No. g vev Parts No. Description nation
18 2A D1074653702 SLIDER 83 2A W0273408715 ELECTRIC CIRCUIT MODULE
19 3B D1074654704 ARM ASSY
20 3A * D1074658733 ARM ASSY PANEL MECHANISM ASSY (D40-1191-05)
21 18 >I< D1074659743 LEVER ASSY 601 2H >I< A10»5174»08 CHASSIS CALKING ASSY
22 1A D1074660704 ARM ASSY
602 3G >I< D1074841708 SLIDER ASSY
23 38 D1074686703 SLIDER 603 2G >I< D1372324708 GEAR
24 3B D1074687703 ARM 604 2G >I< D13»2325708 GEAR
25 3B D1074689703 ARM 605 2G >I< D1372326708 GEAR
26 38 D1074690703 ARM 606 1H >I< D1372328708 GEAR
29 1A D1270635703 CAM
607 2G >I< D14-0789708 ROLLER
30 28 D1270636713 CAM 608 1G >I< D1970645708 CLUTCH ASSY
32 38 D1372221704 GEAR
33 3B D1372222704 GEAR 609 1H >I< E39»0671708 WIRING HARNESS
34 38 D1372223704 GEAR
35 38 D1372224704 GEAR 610 3G >I< G0271480708 FLAT SPRING
36 28 D1372225704 GEAR 611 3H >I< 32270118708 SLIDE RAIL
37 28 D1372226704 GEAR 612 36 >I< 112270119708 SLIDE RAIL
38 3B D1372227704 GEAR 613 2G >I< 112270120708 SLIDE RAIL
43 2A D1470785704 ROLLER 614 2G >I< J9071083708 GUIDE
44 1A D2172395713 SHAFT 615 2H >I< 32270213708 MOUNTING HARDWARE (MOTOR)
46 28 D2172414704 SHAFT A 1H >I< N0976147708 SCREW (M1.7X4)
48 18 D3270648704 STOPPER 8 1H >I< N0976148708 SCREW (S2X2.3)
49 28 D3270654704 STOPPER D 3G >I< N0976150708 SCREW
50 2A D3970254705 DAMPER E 3G >I< N0976151708 SCREW
F 1G N1972105714 CUT WASHER (1 .6X3.5X10.35)
VFC1 2A E3970464705 FLAT CABLE
PM1 1H >I< T4271100708 MOTOR ASSY
54 28 F0971748»04 SHEET VR1 1H >I< T9970448705 SPEED DETECTOR
56 1A G01r3112704 COMPRESSION SPRING
58 3B G01»31 14714 EXTENSION SPRING
59 3A G01r3116714 EXTENSION SPRING
60 2B G01r3117704 EXTENSION SPRING
61 18 G01r3118704 EXTENSION SPRING
62 2A G01r3119704 EXTENSION SPRING
63 3A G01r3121r14 TORSION COIL SPRING
64 38 G01r3140704 EXTENSION SPRING
65 3B G01r3142704 TORSION COIL SPRING
69 2A G02»1421703 FLAT SPRING
78 38 3217979203 MOUNTING HARDWARE
79 1A J21-9793-12 MOUNTING HARDWARE
82 2A J9071031721 GUIDE
A 1A N0974495705 ADJUSTABLE SCREW (ADJUSTMENT)
8 1A N0974496705 TAPTITE SCREW (02 2X5P7TITE)
C 18 N0976060705 MACHINE SCREW (02M1.7X1IB CR)
D 28 N0976061705 MACHINE SCREW (02M1.7X3.5 CUP)
E 1A N0976103»05 MACHINE SCREW (M1.7X3.5(NK G)
F 1A N0976104705 MACHINE SCREW (2X10 SrTITE)
G 18 N0976106705 MACHINE SCREW (M1.7X2.5)
J 2A N1972022704 FLAT WASHER
K 3A N1972171704 FLAT WASHER
VM1 28 >I< T4271058725 MOTOR ASSY
VM2 3A T4970101r15 MOTOR ASSY
VM3 38 >I< T4271061r14 MOTOR ASSY
VPU1 1A T2570222705 OPTICAL PICKUP HEAD
K: DDX7015 E : DDX7025 M : DDX7035 X : DDX7045 R : DDX7045 C : DDX7065 A Indicates safety critical componenIsA

(K:NorthAmerica E:Europe M:OtherAreas X:Australia R:LatinAmerica X:Chma)
85

Page 88

DDX7015/7025/7035
DDX7045/7065

SPECIFICATIONS

DVD Section

D/A converter ...................................................... 24Bit
Decoder ......... Linear POM/Dolby digital/dts/MP3/WMA
Wow & Flutter .................................. Below Measurable Limit
Frequency response
(Sampling frequency: 96k) .. 20~44.000Hz
(Sampling frequency: 48k) .. 20~22.000Hz
(Sampling frequency: 44.1 k) 20~20.000Hz
Total harmonic distortion (1 k) .. ......... 0.010%

Signal to noise ratio.
Dynamic range .....

.. 100dB (DVD-Video 96k)
.. 100dB (DVD-Video 96k)
DISC format ............ DVD-Video/VIDEO-CD/CD-DA
Sampling frequency ........... 44.1kHz/48kHz. 96kHz
Quantifying bit number ......................................... 16/20/24bit

FM Tuner Section

Frequency range (Frequency step)

. 87.5~108.0MHZ (50kHz)
.......... 9.3dBf (0.8uV/750)
15.2dBf (1 .6uV/750)

Usable sensitivity (S
Quieting sensitivity (S/N 50dB) ..

Frequency response (:3.0dB) ........... 30Hz~15kHz
S/N (MONO) ......................... 72dB
Selectivity (i400kHz) . . Over 80dB

Stereo separation ....... . 38dB (1kHz)
AM Tuner Section

Frequency range (Frequency step)

531 kHz~161 1 kHz (9kHz)
.. 28dBu

Usable sensitivity .

Video Section

Color system of external video input .................... NTSC/PAL
External video input level (RCA jacks) ....... . 1Vp-p/750
External audio max input level (RCA jacks) ..... 1V/22k0
Analog RGB input ............................................. 0.7Vp-p/750

KENWOOD CORPORATION

296773. lshlkawarmachl. HaCIIlDIIVSHI. Tokyo. 1928525 Japan

KENWOOD USA CORPORATION
Po. Box 22745. 2201 East Dominguez Street. Long Beach. CA 9030175745. u.s A.

KENWOOD ELECTRONICS CANADA INC.
6070 Kestrel Road. Mississauga. Ontario. Canada LST lss

KENWOOD ELECTRONICS LATIN AMERICA SA.
PO, Box 552791 Pai1illa. Plaza Creoicorp Bank Panama.
Piso 9. Oiioina sol. Calle 50. Panama. Rep. de Panama

KENWOOD ELECTRONICS BRASIL LTDA.
Alameda Minisuo Rocha Azevedo No, 455.

EdrIlClu Jail 10o Andar. Cernueira cesar. Ceo 014117001.
sac PaularSPersll

KENWOOD ELECTRONICS UK LIMITED
Kenwood House. Dwrgri1 Road. Warlord. Hens. wom 9E5. Unlted Kingdom

KENWOOD ELECTRONICS DEUTSCHLAND GMBH

RembrflckerrSIr. 15. 63150 Heusenslamm. Germany

KENWOOD ELECTRONICS FRANCE SA.
13. Boulevard Ney. 75018 Paris. France

KENWOOD ELECTRONICS BELGIUM N.V.

Leuvenses1eenweg 243 d, 1800 Vllvoorde. Belgium

Audio Section
Maximum power (Front & Rear) ............................... 50W x 4
Full bandwidth power (Front & Rear) (at Less than 1%THD)

Preout level ..
Preout impedance ...................................................... $6000
Tone
Bass ..... .100Hzt10dB
Middle .. 1kHzt1 OdB
Treble ............................................................. 10kHzi10dB
General
Operating voltage ....................................... 14.4V (11V~16V)
Current consumption ....................................................... 15A

Dimensions (W x H x D)

Main unit installation ............ 182 x 112 x163 (mm)

Operational temperature range ............... -10°C~60°C
Storage temperature range ................................ -20 °C~85 °C
Weight

Main unit .................................................................... 2.8kg

~ Specifications subject to change without notice.

- Although the effective pixels for the liquid crystal panel is
given as 99.99% or more. 0.01% of pixels may not light or
may light incorrectly.

. This product incorporates copyright protection technology
that is protected by US. patents and other intellectual prop-
erty rights. Use of this copyright protection technology must
be authorized by Macrovision. and is intended for home and
other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is pro-
hibited.

~ DTS and DTS 2.0 + Digital Out are trademarks of Digital
Theater Systems, Inc.
