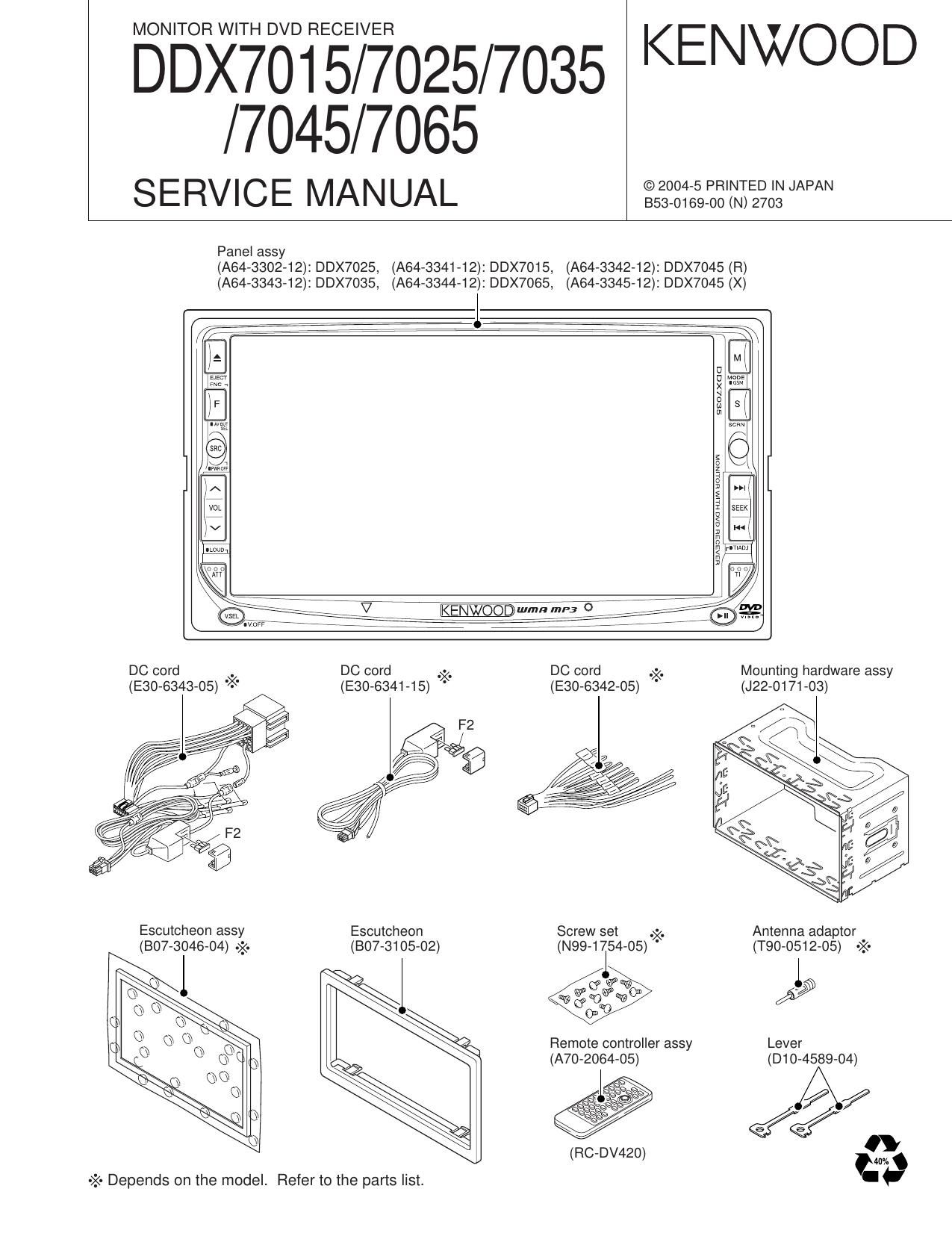

Kenwood DDX 7015 HU Service Manual
This is the 88 pages manual for Kenwood DDX 7015 HU Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood DDX 7015 HU Service Manual (Ocr-read)
Page 22
DDX7015/7025/7035
DDX7045/7065
TEST MODE
22
O MECHA ADJ screen
Panel mechanism position is adjusted in this screen.
There are cases where panel opens at power on, when ex-
changing DVD mechanism.
1) MECHA Adjust screen
MECHA Adjust
- Key specification
MECHA Adjust : Starts mechanism position adjustment
Return :Change to Test Mode Main screen
2) MECHA Adjust in progress screen
MECHA Adjust
Mecha Adjusting
3) MECHA Adjust complete screen
MECHA Adjust
Mecha Adjust OK
You can try again adjustment when if appears on EEPROM
write NG.
OTouch adjustment screen
Key touch position correction adjustment for the Touch panel.
Adjust to 3»point position on the touch panel. The unit come
to adjustment is complete when you can get EEPROM OK
appear on the screen.
1) Input touch position data
Point Two-paint
Cancel
4%
Threepomt
- Key specification
Cancel :
Input touch position data (point) :Change to Test Mode Main
screen
Other : Change to Input touch position function (for point)
2) Writing OK screen
Return
Write OK
~ Key specification
Return : Change to Test Mode Main screen
3) Writing NG screen
Write NG
You can try again adjustment when if appears on EEPROM
write NG.
