Page 2

D4071132(K) COVER1,1p( 8/2/00 9:27 AM «5? 3 K \

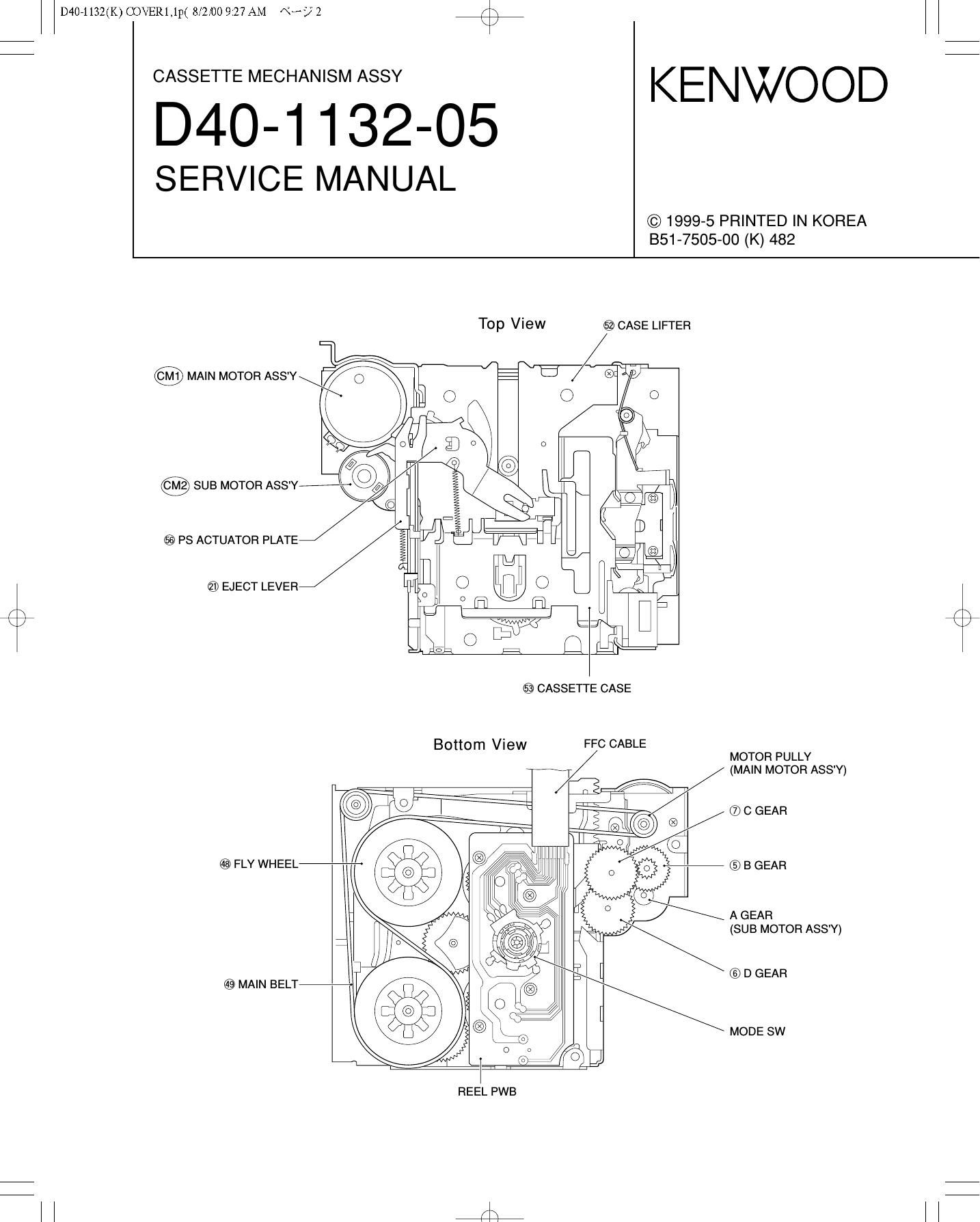

D40-1132-O5

CONTENTS / DISASSEMBLY FOR REPAIR

CONTENTS
CONTENTS/ DISASSEMBLY FOR REPAIR....
MECHANISM DESCRIPTION
ADJUSTMENT ...........................

EXPLODED VIEW ......
PARTS LIST .....

DISASSEMBLY FOR REPAIR

1.1. GUIDE BRACKET

CAUTION:

This part is damageable during disassembling. and it cannot

be reused.

Q Disassembling

(a) Note that @GUIDE BRACKET is locked at three places
shown in figure.

r\
\/

(b) Set the mechanism in "R.PLAY" mode (see 2.1 Manual
Operation).

(0) Push "B portion strongly upward with a proper tool, and
the Bracket will be unlocked at once.

->:< If the above unlocking tailed, break the lock with nippers
(In such a case, take care not to allow debris to enter the
deck.)

Q Reassembling

(a) From the side of PINCH ROLLER ARM Ass'y. first insert
"D" portion into a hole in (DCHASSIS Ass'y.

(b) Adjusting three locks and "E" portion. push the Bracket
down until it clicks.
