Kenwood CV 301 HU Service Manual

Page 1

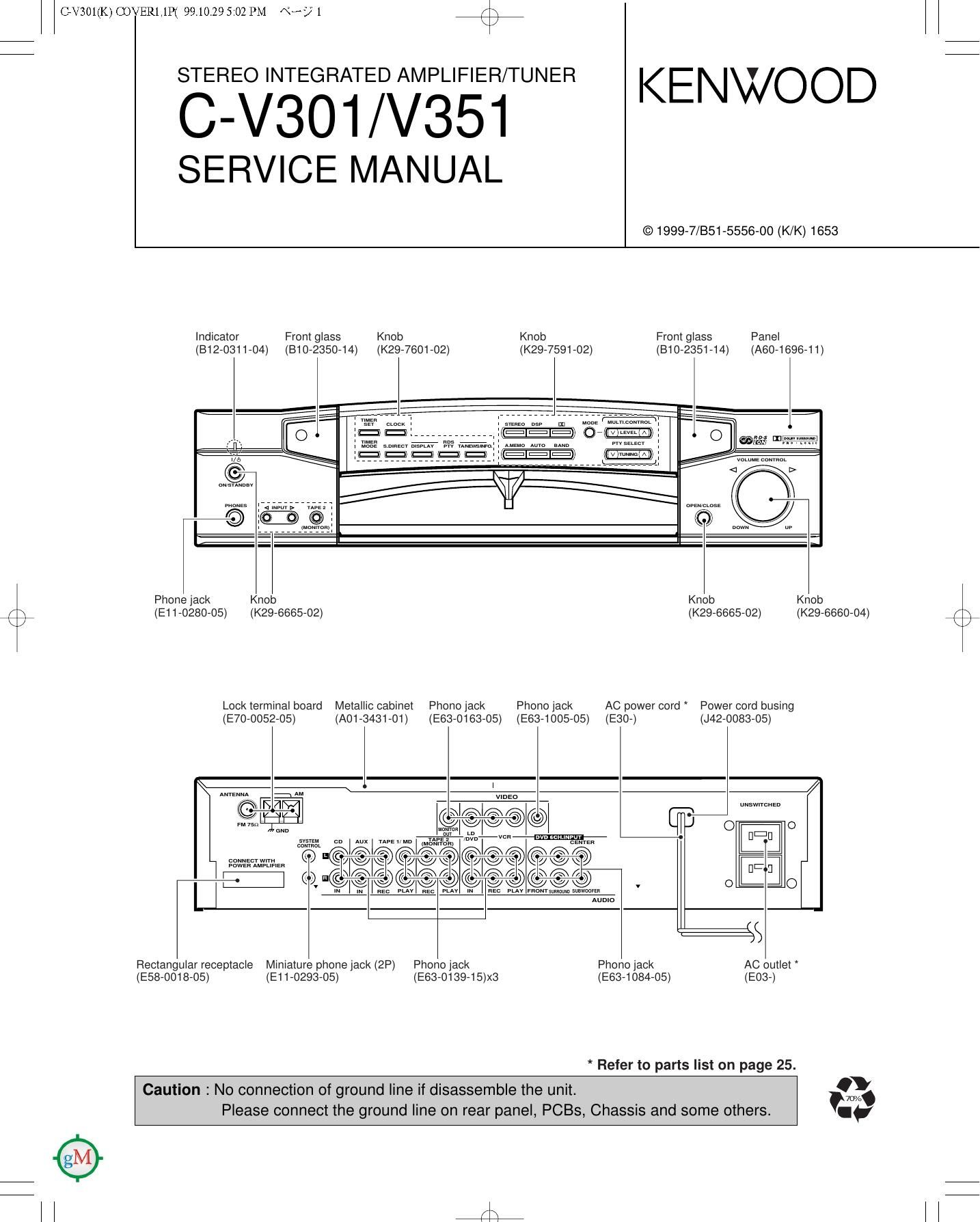

CEV301(K) COVER1,1P( 99.10.295:02 PM \°~/1 /\

STEREO INTEGRATED AMPLIFIER/TUNER KEN V D
C-V301/V351 WOO

SERVICE MANUAL

© 1999-7/B51-5556-00 (K/K) 1653

Indicator Front glass Knob Knob Front glass Panel
(312-0311-04) (810-2350-14) (K29-7801-02) (K29-7591-02) (B10-2351-14) (Ase-159641)

Mm Muul comm-t

(513 Eorwfl)

1 1
(i
%

§
m fifzfim m-m , ......

Tl

1'; 11;": ;' ' mgr. cvmmss
_ :
Phone Jack Knob Knob Knob
r) (E11-0280-05) (K29-6665-02) (K29-6665-02) (K29-6660-04)
\
Lock terminal board Metallic cabinet Phono lack Phono lack AC power cord Power cord busing
(E70-0052-05) (A01-3431-01) (E63-0163-05) (E63-1005-05) (E30-) (J42-0083-05)
|
AMEN/EEK? _ -vao
\C \I-mlm mm
mm gr/IVIVOO q J O o
L ©C Kg: ()6) 7
:' «WEE? QCQQQQVQQVQ . 0 O
l
l
)8
Rectangular receptacle Miniature phone jack (2P) Phono jack Phono jack AC outlet
(E58-0018-05) (E11-0293-05) (E83-0139-15)x3 (E63-1084-05) (E03-)
* Refer to parts list on page 25.
Caution : No connection of ground line if disassemble the unit. v.70"
Please connect the ground line on rear panel, PCBs, Chassis and some others. Ifi

Page 2

F\
\/

C7V301(K) COVER1,1P( 99.10.29 5:02 PM \°-/2

C-V301/V351

CONTENTS / ACCESSORIES / CAUTIONS

Contents
CONTENTS / ACCESSORIES / CAUTIONS ............. 2
DISASSEMBLY FOR REPAIR...
ADJUSTMENT ...........
PC BOARD ................

..3
..4
.5

Accessories

FM indoor antenna (1)
(T90-0841-05)

Remote control unit (1)

Batteries(R6/AA) (4)
(C-V301) (c-v351)

(A70-1306-05)

u
an
m
an

7
3
a
a

E

t
t
t
L
r

ll
Battery cover (A09-0378-08)

SCHEMATIC DIAGRAM .......................................... 11
EXPLODED VIEW .......... .24
PARTS LIST ........ .25
SPECIFICATIONS ...Back cover

Graphical Remote Control unit (1)
(C-V351)
(A70-1205-15)

(Optional with the C-V301)

Batteries(R6/AA) (2)
(C-V301)

Cautions
How to reset the microcomputer

The microcomputer may malfunction (impossibility of operation,
erroneous display, etc.) when the power cord is unplugged and
plugged in again while the unit is in ON mode with the IN) key
pressed or due to other external causes. In this case, execute the
procedure on the right to reset the microcomputer and return the
unit to the normal condition.

(I) Unplug the power cord from the wall outlet.
(2) While holding the l/(b (ON/STANDBY) key depressed,
plug the power cord into the wall outlet again.

o Resetting the microcomputer clears the memory you entered and
returns lI to the initial condition when the unit lelt the lactory.
