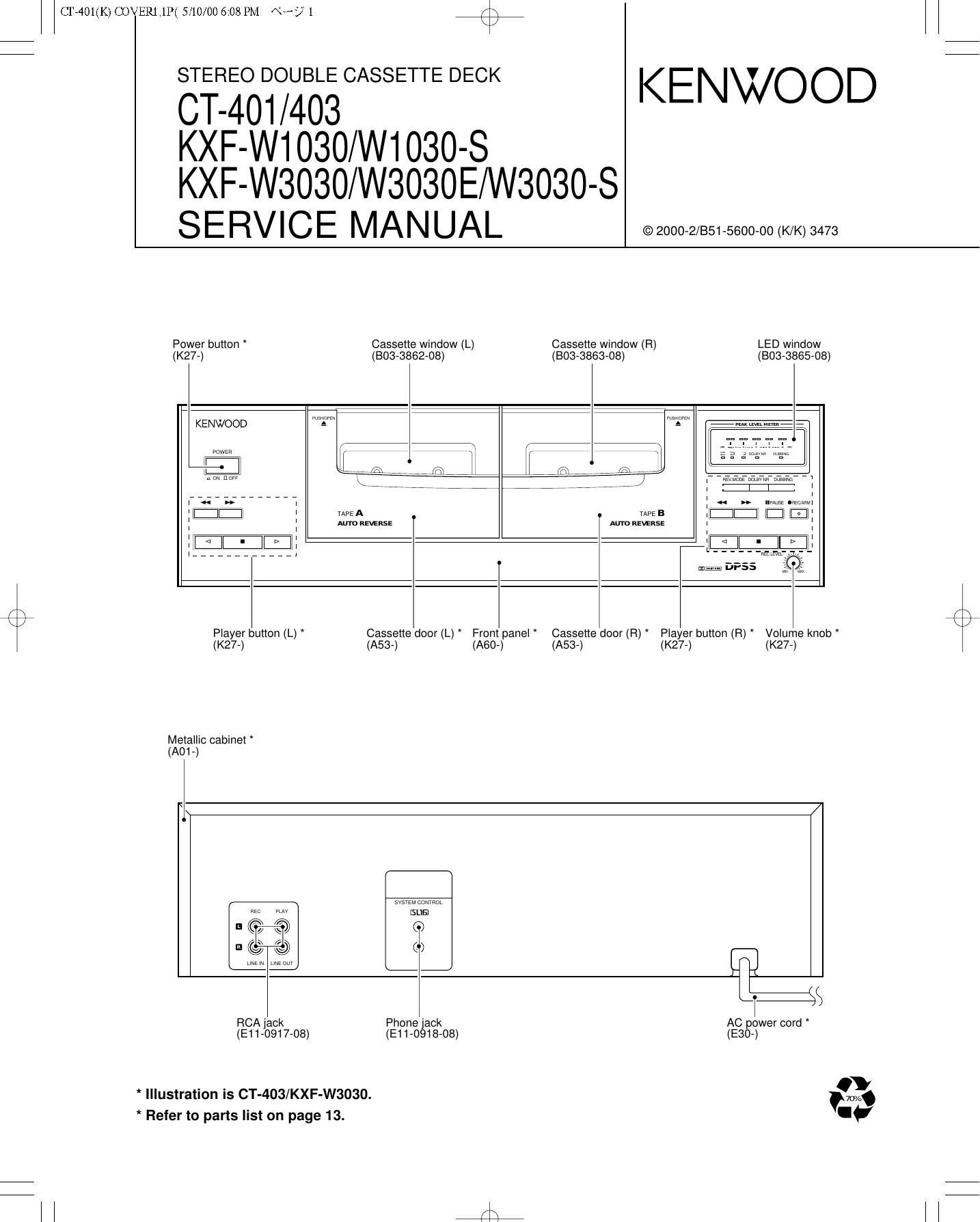

Page 1
CT*401(K)COVER1,1P(5/10/006:08PM «>91 +
STEREO DOUBLE CASSETTE DECK V
CT-401/403 KENWOOD
KXF-W1030/W1030-S
KXF-W3030/W303OE/W3030-S
S E RV I C E MAN UAL ©2000-2/B51-5600-00 (K/K) 3473
Power button Cassette window (L) Cassette window (Fl) LED window
(K27) (Boa-386208) (B03-3863-08) (803-3865-08)
KENWOOD
x /
(74:7;7777771
#:E 1 mm
. I
I Ell:ll:l I
. ____________ .
3
\
Player button (L) Cassette door (L) Front panel Cassette door (R) Player button (Fl) Volume knob
(K27) (A53) (A60) (A53-) (K27) (K27)
Metallic cabinet
(A01)
svsikmcomaux
RCA jack Phone jack AC power cord
(E11-0917-08) (E11-0918-08) (E30)
* Illustration is CT-403/KXF-W3030. v.70)
* Refer to parts list on page 13.
