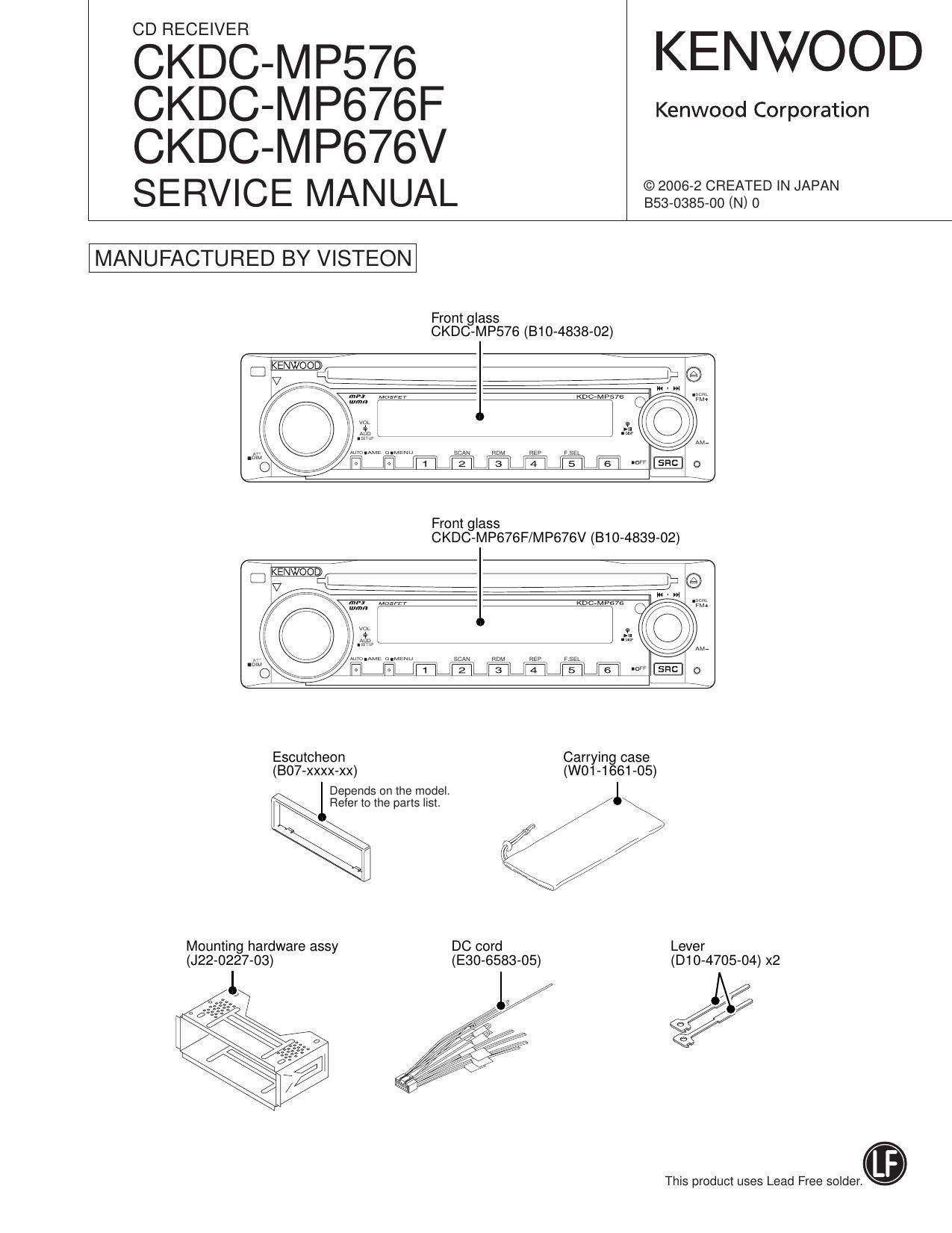

CKDC-M P576
CKDC-MP676F/MP676V
ADJUSTMENT
2. IC10 (X34-) Replacement - Parts vs Adjustment Item Table
- When the parts in the following tables are exchanged, please readjust according to a table.
- When other parts are exchanged, please perform only a check of operation. There is no necessity for readjustment.
Replacement parts Adjustment Item
Ref. Number Parts Name VCOVt 1st MIX 2nd MIX ANT Coil RF Coil Stereo
IC10 E-VOL & Tuner YES YES YES YES YES YES
|C11 E2PROM YES YES YES YES YES YES
L505 Antenna Coil YES
L506 RF Coil YES
L507 VCO Coil YES YES YES YES YES
L508 1st MIX Coil YES
L509 2nd MIX Coil YES
D504 Variable Capacitance Diode YES YES YES YES YES
D505 Variable Capacitance Diode YES YES YES YES YES
D506 Variable Capacitance Diode YES YES YES YES YES
X501 Xtal
- The YES " mark shows that the adjustment is need.
14
