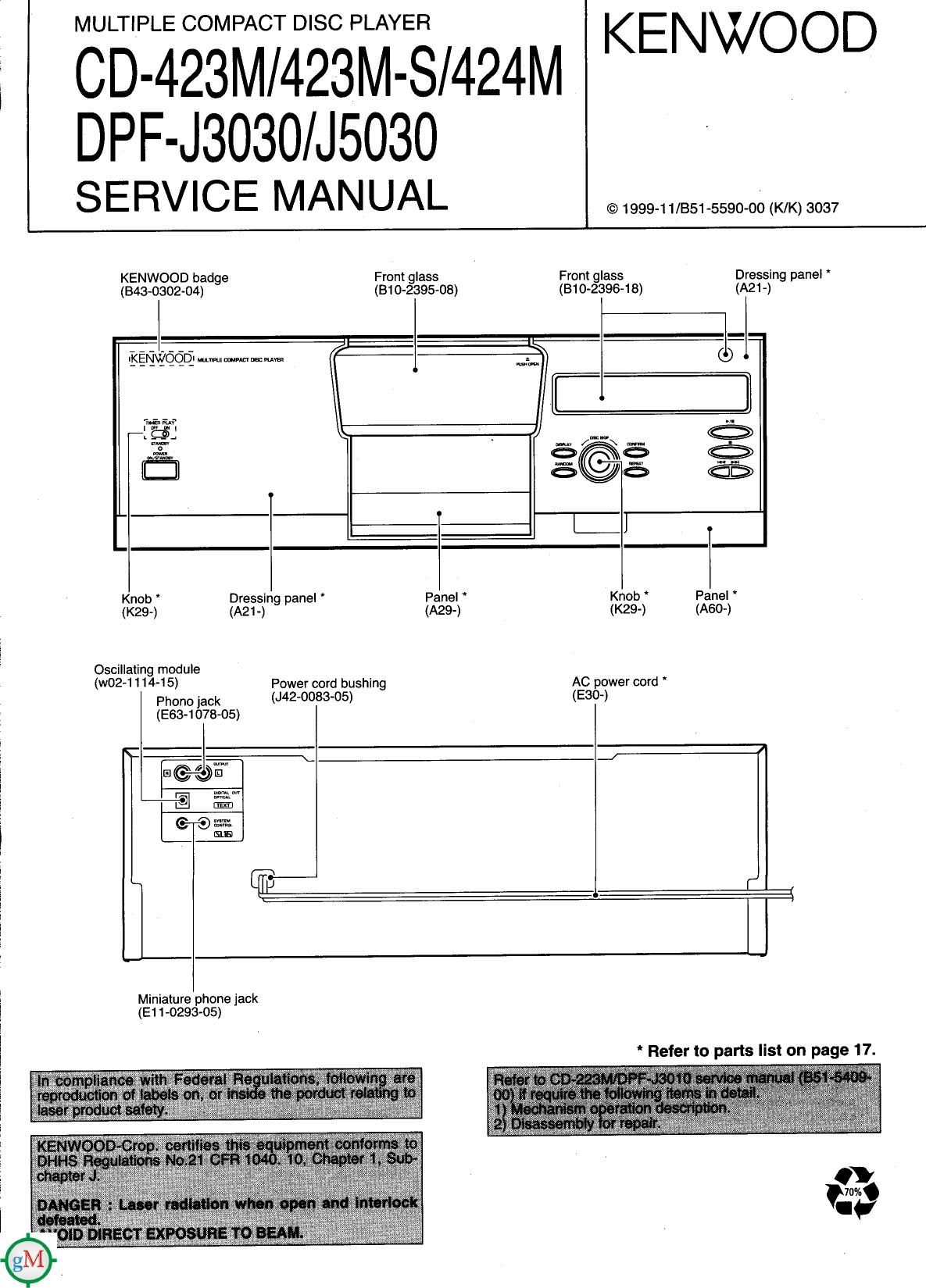

Kenwood CD 424 M Service Manual
This is the 22 pages manual for Kenwood CD 424 M Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood CD 424 M Service Manual (Ocr-read)
Page 2
CD-423M/423M-S/424M/DPF-J3030/J5030
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS /ACCESSOFIIES / CAUTIONS...
CIRCUIT DESCRIPTION ..............................
Ambubm
EXPLODED VIEW
PARTS LIST....
ADJUSTMENT.... PARTS DESCFI O S
PC BOARD ......... SPECIFICATIONS ..........
SCHEMATIC DIAGRAM .. . 1
Accessories
,
Audio cord ....................... (1) Syslem control com ________ (1) Batteries (RS/AA) ............ (4)
(an-osos-os)
Remote control units (2)
FIC-KBZ : CD-424M/DPF-J5030 only
(A70-1 326-05)
PIC-PO71 4
(A70-1336-05)
m
Battery cover (A09-1 1 76-08)
Cautions
(E30-2816-05)
Operation to reset
The microcomputer may malfunction (impossibility to operate,
erroneous display, etc.) when the connection cords are un-
plugged while power is ON or due to an external factor. In this
use, execute the following method to reset the microcomputer
and return it to normal condition.
Unplug the power cord from the power socket end plug the
power cord into the socket again.
To reset the registered contents
The registered contents for title, music type, user file and best
selection can be reset by the following procedure.
Unplug the power cord from the power socket, and while
holding the I key depressed, plug the power cord into the
socket again.
