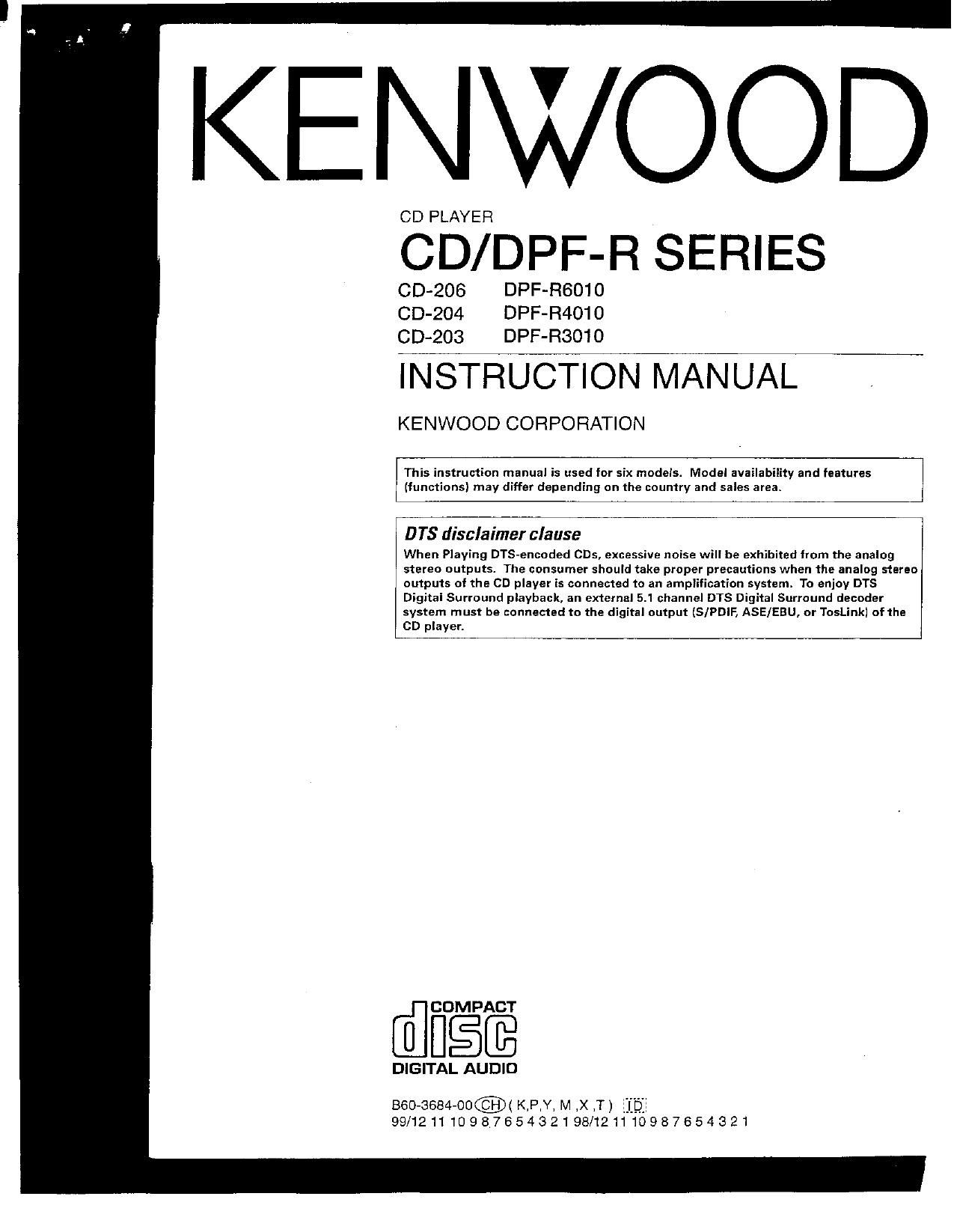

KENWOOD

CD PLAYER

CD/DPF-R SERIES

CD-206 DPF-R6010
CD-204 DPF-R401O
CD-203 DPF-R3010

INSTRUCTION MANUAL

KENWOOD CORPORATION

This instruction manual is used for six models. Model availability and features
(functions) may differ depending on the country and sales area.

DTS disclaimer clause

When Playing DTS-encoded CDs, excessive noise will be exhibited from the analog
stereo outputs. The consumer should take proper precautions when the analog stereo
outputs of the CD player is connected to an amplification system. To enjoy DTS
Digital Surround playback. an external 5.1 channel DTS Digital Surround decoder
system must be connected to the digital output (SIPDIF, ASE/EBU, or TosLink) of the
CD player.

@EEAIE

DIGITAL AUDIO

Beo-ase4-00@( K,P,Y, M ,X ,T) _3
99/12111098765432198/121110987654321

Page 2

Units are designed for operation as follows.

USA. and Canada
Australia

AC 72 VONIV U.K. and Europe
AC 240 V UNIV China .....

Other countries

..... AC 230 V only
A6220 V only
AC 110- 120 /220-240 szitchable

*AC voltage selection AC voltage selector switch
The AC voltage selector swrtch on the rear panel IS set to the voltage E] The illustration shows
that prevails in the area to which the unit rs shipped Before connecting ACHD 22w mu l-Aczzurzwy m the CD-ZOG/DPF-RSO10.
the power cord to yourAC outlet, make sure that the setting position

of this swrtch matches your line voltage If not, ll must be set to your
voltage In accordance With the following leeCIIOTl

Note
Our warranty does not cover damage caused by excessive line voltage
due to improper setting of the AC voltage selector swrtch,

Move swrtch lever to match your III'IE voltage
With a small screwdriver or other pomted tool

For the United Kingdom
Factory fitted moulded mains plug

1 The mains plug contalns a fuse, For replacement, use only a I37Arnp ASTA-approved IBSTEGZ) fuse.

2, The fuse cover must be refitted when TepIaCIng the fuse in the moulded plug

3 Do not cut olf the mains plug from this equipment lithe plug fined Is not suitable lor the power points in your home or the cable rs [00 short to
reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer

ll nonetheless the mains plug IS cut off, remove the fuse and dispose of the plug Immediately, to avord a posSIDIe shock hazard by inadvertent
CDTTTIBCIIOII to the mains supply,

IMPORTANT

The wrres in the malns lead are coloured In accordance with the foIIowrng code:
Blue : Neutral
Brown : Live

Do not connect those leads to the earth terminal of a three-pin plug.

Safe recautions sec n carefully to ensure safe opera! n

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAINOR MOISTURE.

CAUTION

RISK OF ELEcmIc sNocK
no Not OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EOUILATERAL TRIANGLE, IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE WITHIN THE PRODUCTS ENCLOSURE
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS

THE EXCLAMATION POINT WITHIN AN EOUILATERALTRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANTOPERATING AND MAINTENANCE (SERVICINGI INSTRUCTIONS IN THE LITERATUREACCOMPANYING
THE APPLlANCE

The marking of products using lasers
REDUIBEMENTBYNEDERLAND GAZETTE (Except " some 33)

CLASS 1
LASER PRODUCT
The marking is located on the rear panel and says that the compo
nent uses laserbeams that have been classified as Class 1 , It means

thatthe unit is utilizmg laser beams that are 01a weaker class There
is no danger of hazardous radiation outsrde the unit. 4

Batteries are supplied with this product. When
they empty, you should not throw away, Instead,
hand them in as small chemical waste,

Page 7

The keys with the same name as those on the remote control
unit operate the same way as the remote control unit.

0 ONISTANDBY (POWER / I/(Dl switch -EQ
Turns the unit ON/STANDBY.

9 P.MODE key --

9 TEXT DlSP. key (CD-206/DPF-R601O only) -@

Used to select the CD-TEXT information display.
CHECK key (CD-204/203/DPF-H401OIR3010 only) [£1
Used to check or change program contents.

0 ALL INFDt key (CD-206/DPF-R6010 only) --
Used to display all text information on the CD.
CLEAR key (CD-204/203/DPF-R4010/R3010 only) ~E§j
Used to clear the program.

6 Remote control light sensor (CD~206/204lDPF-R6010/

R4010 only) -.
6 Skip keys imp») --

Press to skip to the beginning of another track.
6 Disc selector keys (DISC1 - DISCS) / Indicator (CD-206]

DPF~R6010 only) {33
Press to select the disc to be played,
0 DISC SKIP key -gsg

Press to rotate the dlSC tray or to select the disc.

CD-ZDB/204/203/DPF~HEDi U/R401 D/HEDID [Enl

9 Open/Close key (A) -92
Opens and closes the disc tray.

@ RANDOM key .@
Press to play the tracks in a random order.

@ REPEAT key -fi]
Press to play the tracks repeatedly.

@ TIME DlSP. key -E6§
Press to swrtch the time Indication mode,

0 Disc tray- --
Load the disc to be played back.

0 Search keys (44,») 413
Fast towards or fast reverses the track

9 EDIT mode key .@
Press to select the edit mode

0 STOP key (I) ~E§3

Q PHONES iack (CD-206I204/DPF-R6010/R4010 only) 92
Use to connect (optional) headphones.

GD PLAY/PAUSE key (bill) 43;]
Each time the key is pressed, playback and pause switch
each other,
