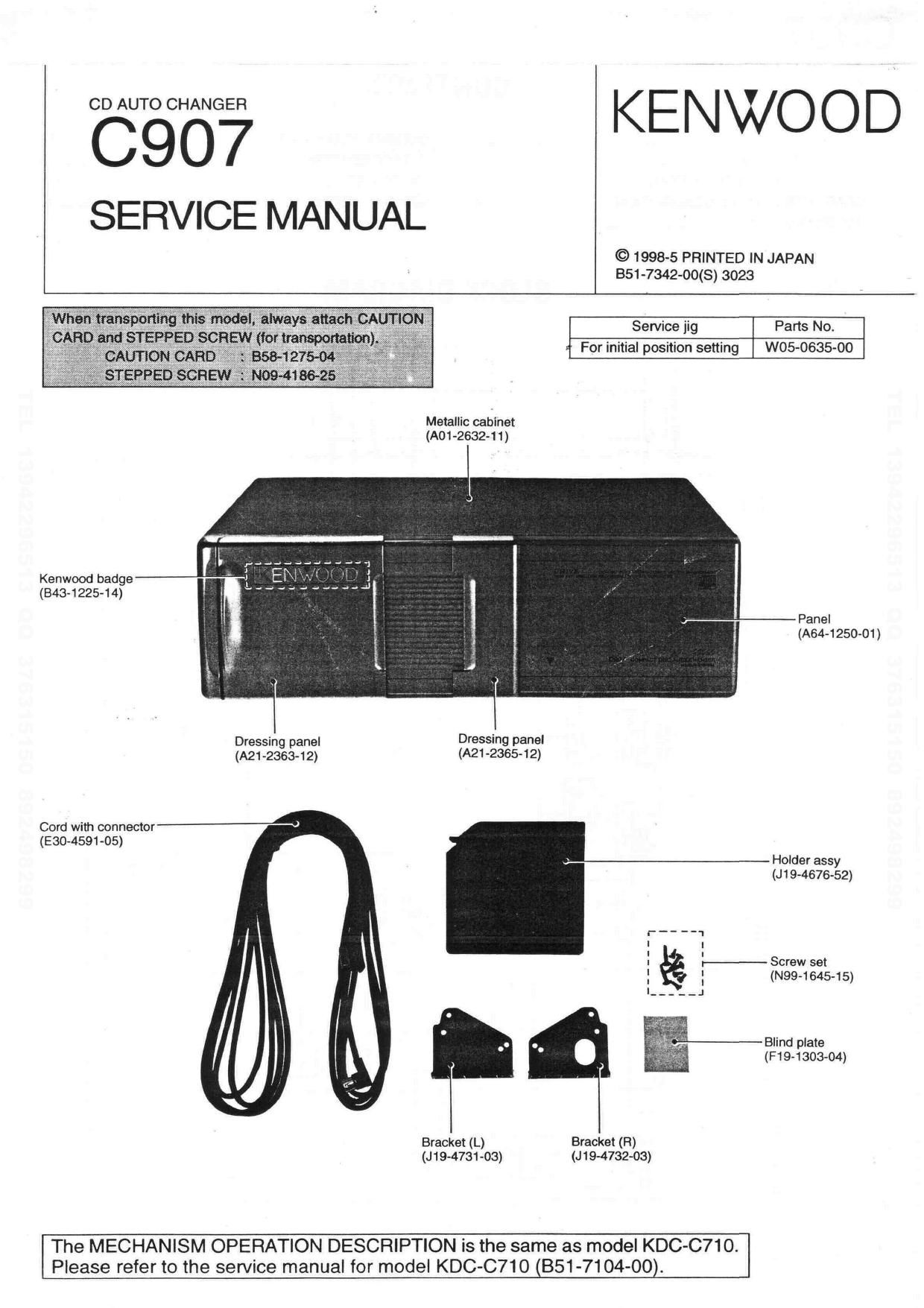

Page 1
(69007 K:NWOOD
SERVICE MANUAL
© 1998-5 PRINTED IN JAPAN
851-7342-00(S) 3023
Service jig Parts No.
For initial position setting W05-0635-00
Metallic cabinet
(A01 -2632-1 1)
Kenwood badge
(843-1225-14)
Panel
(A64-1250-01)
Dressing panel Dressing panel
(A21-2363-12) (A21-2365-12)
Cord with connector
(E30-4591-05)
Holder assy
(J19-4676-52)
- _ " - "I
I z
I I- Screw set
} ; (N99~1645-15)
l _ J
Blind plate
(F19»1303-O4)
Bracket (L) Bracket (R)
(J19-4731-03) (J19-4732-03)
The MECHANISM OPERATION DESCRIPTION is the same as model KDC-C710.
Please refer to the service manual for model KDC-C710 (851-7104-00).
