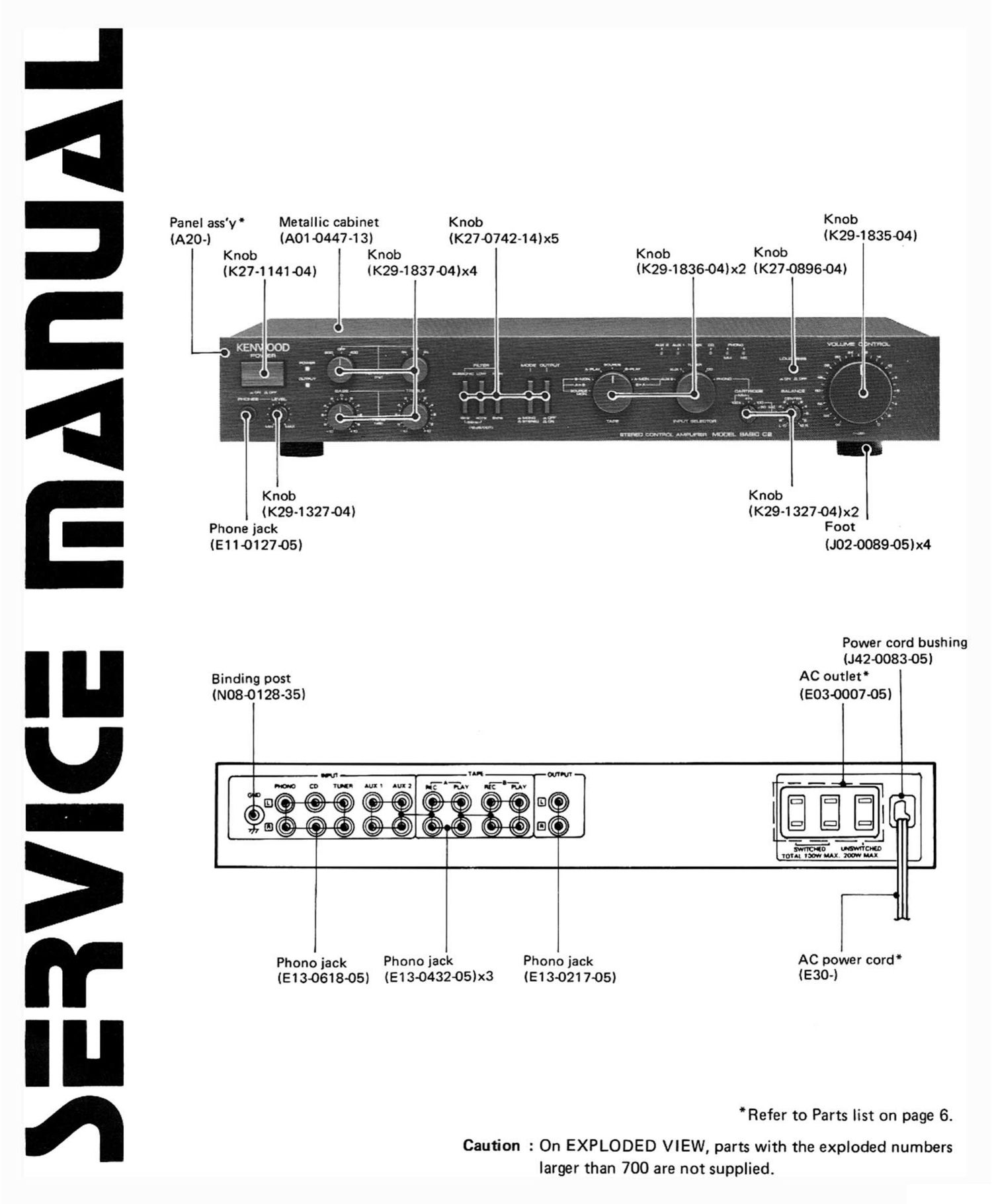

Kenwood Basic C 2 Service Manual
This is the 12 pages manual for Kenwood Basic C 2 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood Basic C 2 Service Manual (Ocr-read)
Page 2
DISASSEMBLY FOR REPAIR
DISASSEMB LY FOR REPAIR
1. Remove the metallic cabinet ( Cl) ).
2. Remove 3 screws retaining the panel ass'y from the
bottom side ( ® ). Remove 2 screws retaining the
chassis and the sub panel ( C3) ).
3. Remove 4 screws retaining the pcb to the frame ( GD )
and 3 screws at the rear panel ( © ).
Now the pcb can be freed from the chassis with the
front panel ass'y and the rear panel attached to the pcb.
4. Lift the front panel ass'y side a little and gradually lift
the pcb holding the front and the rear panel ( © ).
Note: Be careful not to let the pcb drop before the rim of
the chassis when lifting the pcb up.
5. Stand the pcb as shown in the figure so that components
can be replaced ( ® ).
