Kenwood AS 7 Owners Manual

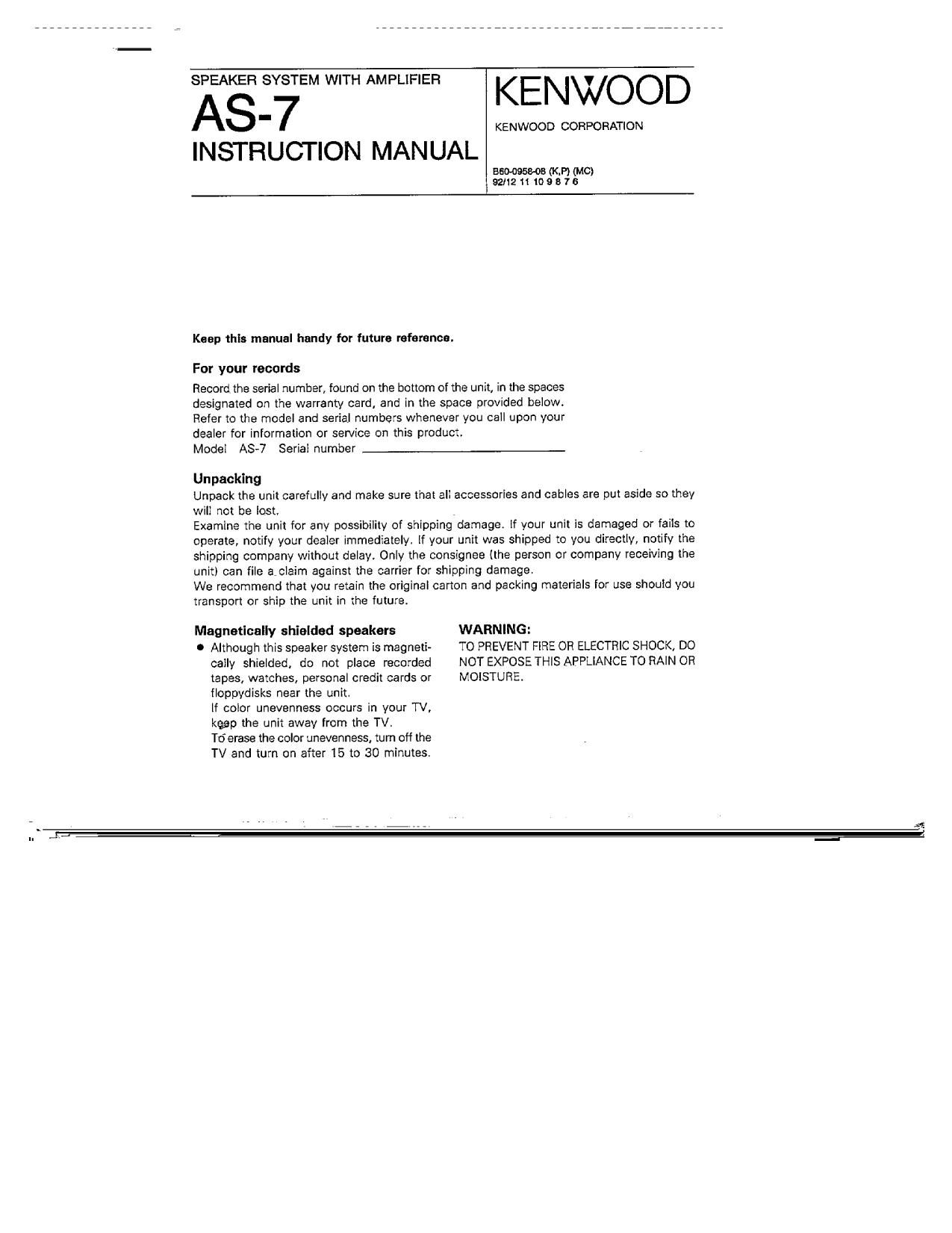

Page 1

AS-7 KENWOOD

KENWOOD CORPORATION

INSTRUCTION MANUAL

I929 093

Kaap thls manual handy for future reference.

For your records

Record the serial number, found on the bottom of the unit, in the spaces
designated on the warranty card, and in the space provided below.
Refer to the model and serial numbers whenever you call upon your
dealer for information or service on this product.

Model AS-7 Serial number

Unpacking

Unpack the unit carefully and make sure that all accessories and cables are put aside so they
will not be lost.

Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to
operate, notiiy your dealer immediately. If your unit was shipped to you directly, notify the
shipping company without delay. Only the consignee (the person or company receiving the
unit) can file aclaim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials for use should you
transport or ship the unit in the future.

Magnetically shielded speakers WARNING:

3 Although this speaker system is magneti» '70 PREVENT FIRE OR ELECTRIC SHOCK, DO
cally shielded, do not place recorded NOT EXPOSE THIS APPLIANCE TO RAIN OR
tapes, watches, personal credit cards or MOISTURE.
floppydisks near the unit.

If color unevenness occurs in your TV.
kggp the unit away from the TV.

T6 erase the color unevenness, turn off the
TV and turn on after 15 to 30 minutes.

I

Page 2

Precautions h I'amplol
Pour preserver les hautes performances e: la fiabiiité de cat appareil, éviter de lmiliser ou de
lentreposer dans les endroits suivams;

Emplacements poussiéreux.

Dans une piece Irés humide, telle qu'une saile de bain.

Pres de sources de chaleur comme un radiateur, em.

Endroits exposés direclemem au solefl, en particulier dans une vulture fermée.
Endrons extrémemem froids

I Commandos, connecteurs et indicateurs

AVE! Haut parieur Ham parleur
(D Commands de volume de gauche da dmita
(VOLUME)

® Séiecteur de ligne (LINE)

© Touche PRESENCE

@ Touche dalimentation
(POWER)

© Indicateur d'aiimentation

Arriéra Haul parleur Haul parieur
© Prise d'entrée do iigne 1 d3 gaucha d drone
iLiNE 1)
® Prise dentrée CC
(DC IN [DC 12 VD

Prise de sortie de super
woofer (SUPER WOOFER)

Prise d'entrée de ligne 2
[LINE 2)

® Sorrie PRE OUT pour
I'enceinte droite

® Cordon de sortie CC

® Prise dentrée DC IN

® Cébie d'entrée
