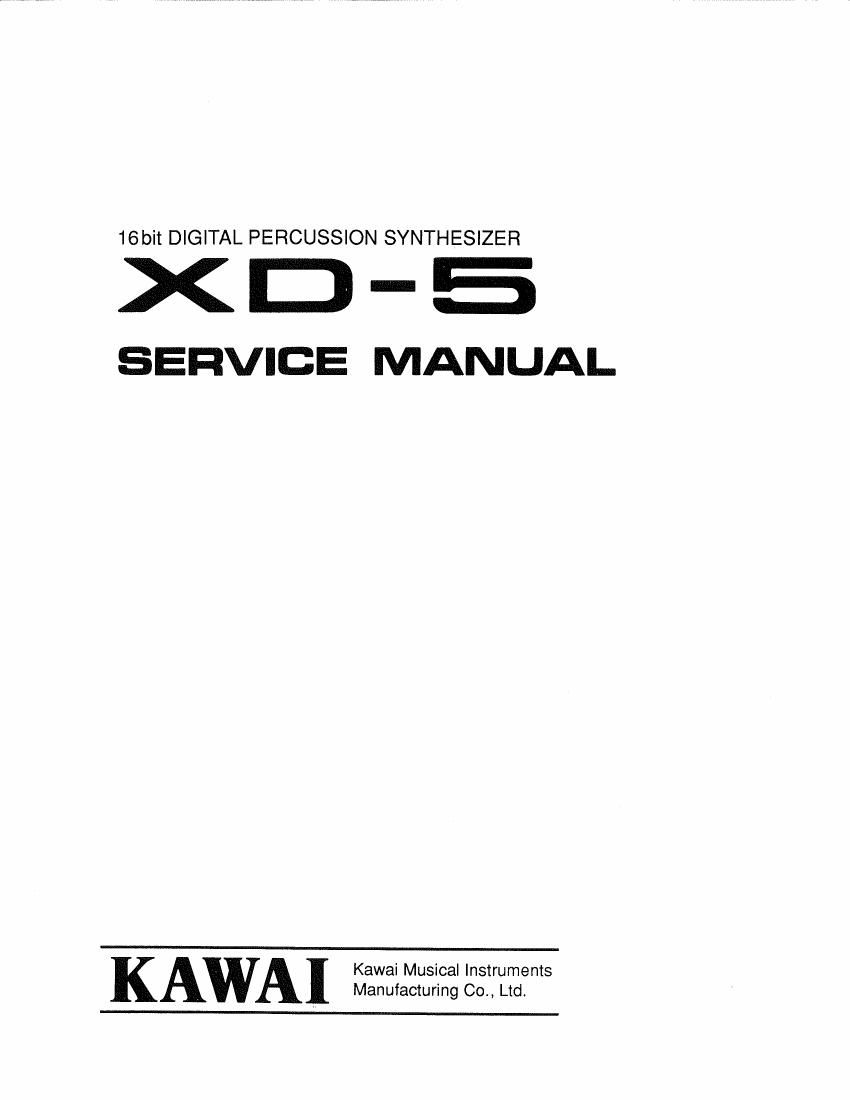

16bit DIGITAL PERCUSSION SYNTHESIZER
X D - ES
SERVICE MANUAL
Kawai Musical Instruments
Manufacturing Co., Ltd.
Page 2
CONTENTS
1. P.W.B INFORMATION ............................................................. 1
2. SEMICONDUCTORS LIST ...................................................... 2
3. PARTS LIST ............................................................................. 3
4. DISASSEMBLY DRAWING ..... 4
5. BLOCK DIAGRAM ................................................................... 4
6. MI-056, HMI-03O CIRCUIT DIAGRAMS ................................ 5
7. MI-056, HMI-030 PRINTED WIRING BOARD ....................... 6
8. MI-057, 058, 059 CIRCUIT DIAGRAMS ...........
9. MI-057, 058, 059 PRINTED WIRING BOARDS ................... 8
10. TROUBLESHOOTING ............................................................... 9
1 . P.W.B INFORMATION
P.W.B. Name Code No. Description
MI-056-059 (4): Japan 236336 MI-056 : MPU, CARD BUFFER, RESET, RAM, CODE
110V Markets ROM, ADDRESS DECODER. DCO, DCA,
220 / 240V Markets WAVE ROM, DCF, PANPOT, MIDI, AUDIO,
(5) : USA. Canada 236337 D / A, POWER SUPPLY
(6) : Australia. U.K., 236338 MI-057 : PANEL SWITCHES
Germany MI-058 : VOLUME
Europe MI-059 : DATA ENTRY (VALUE)
