Kawai k5 k5m schematics and pcb
This is the 28 pages manual for kawai k5 k5m schematics and pcb.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from kawai k5 k5m schematics and pcb (Ocr-read)
Page 1

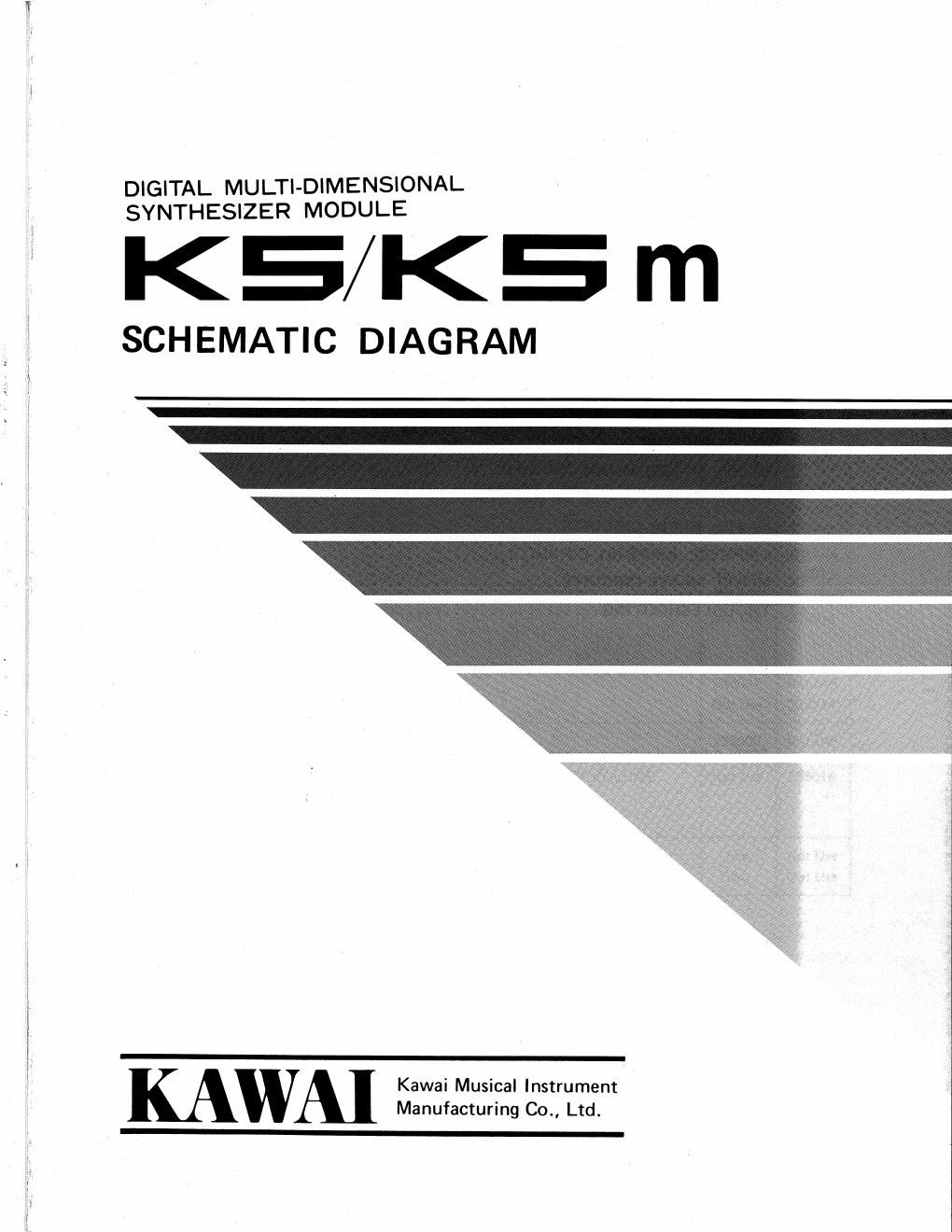

DIGITAL MULTI-DIMENSIONAL
SYNTHESIZER MODULE
KS/KS m
SCH EMATIC DIAGRAM
1 Kawai Musical Instrument
Manufacturing Co., Ltd.
Page 2
PPHFWPPN.
dfi-ld-I-Id
#95"??pr
CONTENTS
K5/K5m P.W.B. INFORMATION .......................... 1
K5/K5m SPECIFICATION ............................... 2
K5 PARTS LIST ....................................... 3
K5m PARTS LIST ..................................... 4
K5 SEMICONDUCTORS LIST ............................ 5
K5m SEMICONDUCTORS LIST .......................... 6
K5 WIRING CONNECTION .............................. 7
K5m WIRING CONNECTION ............................ 8
BLOCK DIAGRAM ..................................... 9
Ml-003 CIRCUIT ....................................... 10
MI-004 CIRCUIT ....................................... 11
Ml-005, Ml-006, Ml-008 CIRCUITS ........................ 12
Ml-007, Ml-009, Ml-013, MI-015 CIRCUITS ................ 13
Ml-012, Ml-014 CIRCUITS ............................... 14
K90PB102, K90PB101 CIRCUITS ......................... 15
MI-010, Ml-O11 CIRCUITS ............................... 16
TROUBLESHOOTING ................................... 17
NOTE: P.W.B. Layout Diagrams win he prepared in the separate volume.
