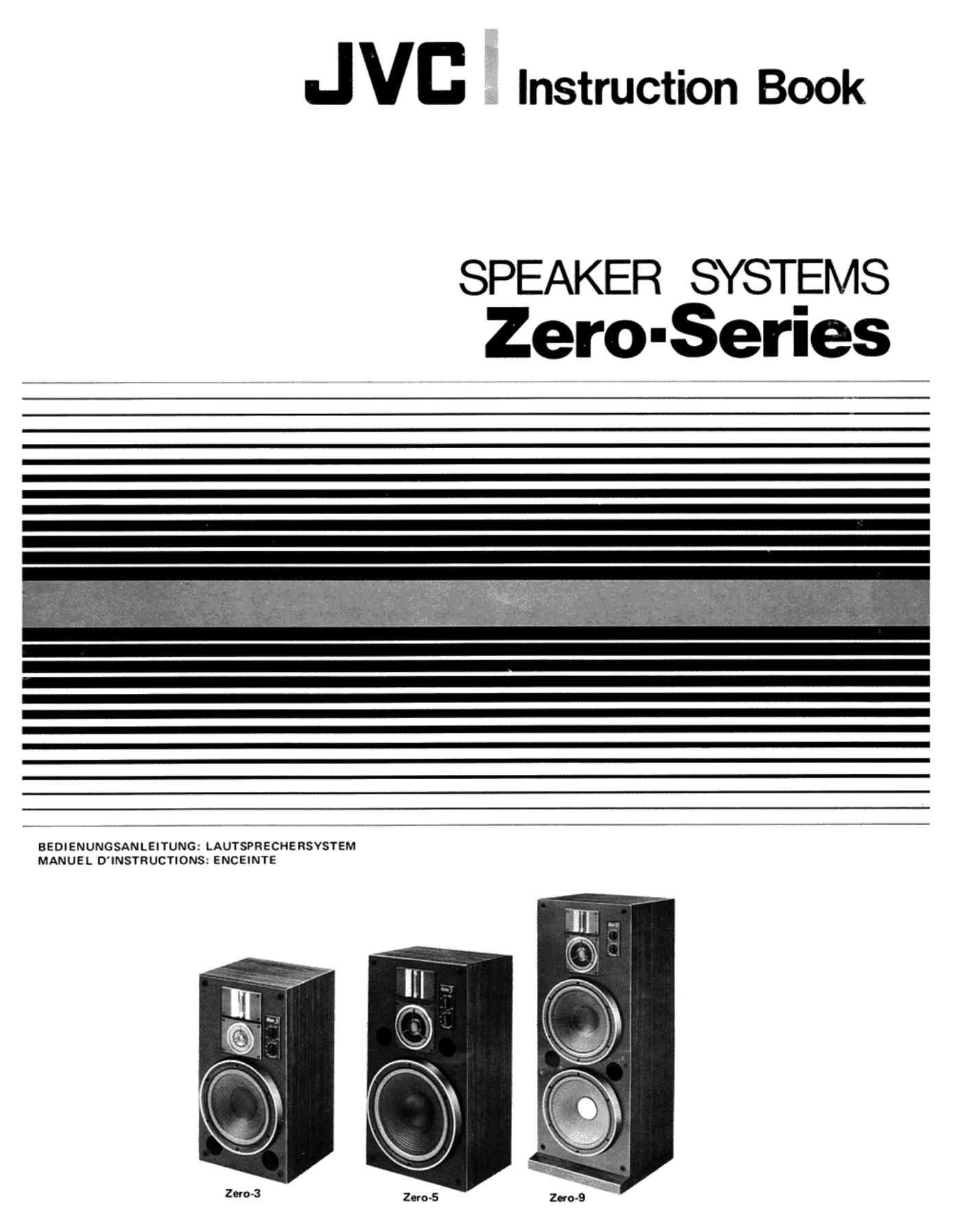

Page 1
JVC : Instruction Book
SPEAKER SYSTEMS
Zero-Series
BEDIENUNGSANLEITUNG: LAUTSPRECHERSYSTEM
MANUEL D'INSTRUCT10NS: ENCEINTE
Zero-3
Page 2
Thank you for your purchase of JVC's Zero-Series speaker
systems. Before starting use of this unit, please read this
instruction booklet carefully for fuller enjoyment of its
excellent features and a long service life.
CONTENTS
Usage .................................... 1
Specifications ......................... Back page
JVC bedankt sich fur den Kauf des Zero-Serien-Lautsprecher-
systems. Lesen Sie bitte vor lnbetriebnahme dieses Gerats
sorgfaltig die Bedienungsanleitung. Nur dann ist gewahrleistet,
dais Sie von seinen bemerkenswerten technischen Besonder.
heiten richtigen Gebrauch machen und iiber lange Zeit hinweg
die Hochstleistung von Ihrem neuen Lautsprechersystem
erhalten.
| NHALT
Betrieb . .
Technische Daten ....................... Ruckseite
cu.
Nous vous remercions de I'achat de lenceinte de la Série Zéro
de JVC. Avant de commencer a utiliser cet élément, nous vous
conseillons de lire attentivement ce manuel dinstructions afin
de profiter entierement de toutes ses caractéristiques pendant
de longues années.
TABLE DES MATI ERES
Utilisation ...... . ..................... . . . . . 2
Caractéristiques techniques ......... . . . . . . . Page au dos
Cord With white lines
Kabul m-t wenflan Lin-en
Cable avcc Ics I-gnes blanches
/
Left channel System
Linkes Kannlsystem
Right channel system
Recmes K analsvstem
Systemc du canal droit
Speaker terminals of amplifier
Leutsprochevanschlusse aes Verstnrken
Barnes a'enceintes de I'amolihcateu'
Fig. 1
Abb. 1
System. du canal gaucho
USAGE
Amplifier connections
0 Connect the speaker system to an amplifier after turning
off the power source of the amplifier.
Input terminals are provided on the rear side of speakers.
Connect these terminals to the output terminals of
amplifier using the provided speaker cords as shown in
Fig. 1. The Red input terminal is (+). and the Black is (-l.
Use the speaker cord having white lines when connecting
(-) terminals of the amplifier and speakers, as opposed to
using the cord without white lines when connecting (+1
terminals.
For stereo playback, connect the left speaker to "L" (left)
terminals of amplifier, and the right speaker to "R" (right)
terminals, confirming the polarity (+, -). if left and right
channels are conversely connected, playback sound
position relationship will be unnatural, and if the cords are
accidentally connected to opposite polarity terminals
between speakers and amplifier, sound characteristics such
as localization, directivity and expansion are extremely
deteriorated. Be sure to confirm the channel and polarity
when connecting.
When using speaker cords other than those provided, select
a cord having thick conductive strands. lf unnecessarily
long cords, or cords with extremely thin conductive strands
are used, sound quality such as damping etc. will deterio-
rate. Be sure to use a cord having thick conductive strands.
Be careful not to apply overload input to speakers. The
bigger the amplifier output is, the more advantageous for
distortion factors. But the speakers may be damaged if
the sound volume is increased to an extreme. Amplifiers
are generally designed to produce about 70 % of the
maximum output with the volume control set in its
medium position. The maximum allowable input is
150 watts (peak) for the Zero-3, 200 watts (peak) for the
Zero-5 and 300 watts (peakl for the Zero-9, respectively.
When the following spurious inputs are applied to the
speakers, the heat from an overload current may cause wire
damages even if they are below the allowable maximum
input. Be sure to lower the amplifier sound volume.
1. Excessive noise produced when detuning of FM tuner.
2. Signals having high level, high frequency components
produced in Fast Forward mode of tape deck.
3. Noise produced when switching the power source of
amplifier, tuner, etc.
. Noise produced when unplugging connecting terminals.
. Noise produced when changing cartridge.
. Continuously high frequency sounds made by oscillator,
electronic musical instruments, etc.
7. Howl produced when using public-address system.
