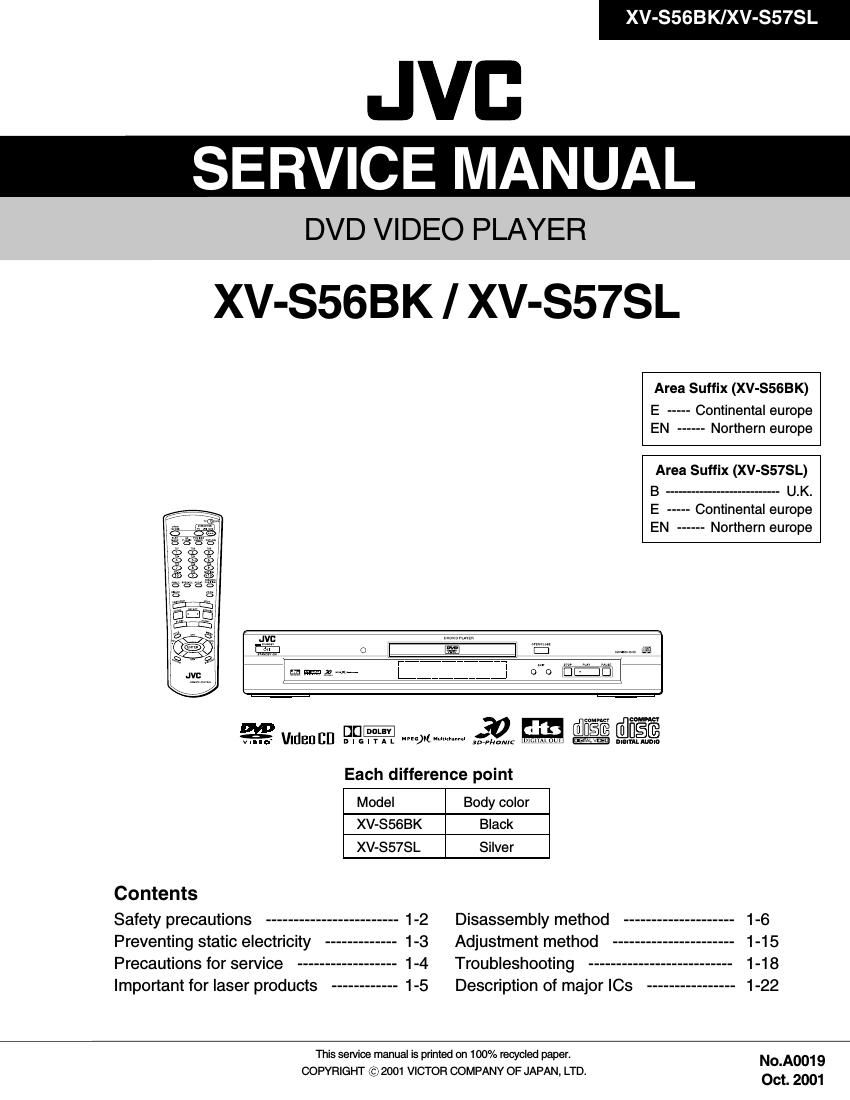

XV-SSGBK/XV-SS7SL

JVB

SERVICE MANUAL

DVD VIDEO PLAYER

XV-856BK / XV-357SL

Area Suffix (XV-$563K)

E ----- Continental europe
EN ------ Northern europe

Area Suffix (XV-$57SL)

E ----- Continental europe
EN ------ Northern europe

a? VIdBEICI] Pil- wom- :t? m %% @flgfi

Each difference point

Model Body color

XV-sseBK Black

XV-857SL Silver
Contents
Safety precautions ------------------------ 1-2 Disassembly method -------------------- 1-6
Preventing static electricity ------------- 1-3 Adjustment method ---------------------- 1-15
Precautions for service ------------------ 1-4 Troubleshooting -------------------------- 1-18
Important for laser products ------------ 1-5 Description of major le ---------------- 1-22

This servioe manual is printed on 100% recycled paper. N 0- A001 9

COPYRIGHT @ 2001 VICTOR COMPANY OF JAPAN, LTD.
Oct. 2001

Page 2

XV-SSGBK/XV-SS7SL

-Safety Precautions

1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made, Any design alterations or additions will void the manufacturers warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by (A) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.

5. Leakage current check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the product

(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the

product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 Q10W resistor paralleled by a 0.1 511 F AC-type capacitor

between an exposed metal part and a known good earth ground. AC VOLTMETER
Measure the AC voltage across the resistor with the AC a (HavinglOOO
voltmeter. ohms/volts,

Move the resistor connection to each exposed metal part, more sen5"'v"y)

particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the resistor.

0.1511 F AC TYPE

Now, reverse the plug in the AC outlet and repeat each I Plagethis
pro e on
measurement. Voltage measured any must not exceed 0.75 V 'WV . ~ each exposed

AC (r.m.s.).This corresponds to 0.5 mA AC (r.m.s.). 15009 10W metal part.

Good earth ground

1.This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided, check setting for local voltage.

- Warning A CAUTION

Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor (I), diode (-) and ICP (.) or identified by the "A"
mark nearby are critical for safety.

When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the J and C version)

Page 15

XV-SSGBK/XV-SS7SL

Adjustment method

(1) Initialization method

If microprocessor (IC401,IC402,|C403) or pick-up is replaces, initialize the
DVD player in the following matter

1)Take out the disc and close the tray.

2)Unplug the power plug.

3)lnsert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST * * ¥" . * * :Version, ¥:Region code

5)Press 3D-PHONIC key button of remote controller. and EEPROM initialize start.
6)When indicate "DTS" on the display, initialize finishes.

7)The power is turned OFF, and Unplug the power plug.

(2) Display of "Laser current value" and "Jitter value"

"Laser current value" and "Jitter value" are displayed on the FL display by the undermentioned
method. Please refer to the failure diagnosis.

1)Take out the disc and close the tray.
2)Unplug the power plug.
3)lnsert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST * * ¥" . * * :Version, ¥:Region code
5)Press the "OPEN/CLOSE" button to move the tray outward.
Put the test disc (VT-501) on the tray and press "OPEN/CLOSE" button.
The tray should move inward (NotezDon't push to close the tray directly by hand etc.)
6)Press the PLAY" button.
7)The laser current value and the jitter value is displayed on the FL indicator as follows.

FL Display

* The test mode is canceled when
0 0 4 0 3 9 7 8 the power is turned off.

Laser current value Jitter value

I For Laser current value

The laser current value becomes 40mA for the above-mentioned.
Becomes a test mode by doing above-mentioned procedure 1) - 4). Afterwards, the laser current value can
be switched by pushing the key to remote control without turning on the disk.

Remote control "4" key Laser of CD *Returns to a usual test mode by the
Remote control "5" key Laser of DVD thing to push the stop button of
remote control.

If the laser current value is 64mA or less, it is roughly good. There is a possibility to which pick-up is
deteriorated, and exchange pick-up, please when there are 65mA or more laser current value.

3D PHON'IQ . DTS Display part OPEN/CLOSE
Billion (lnltlallZe Start) (Initialize complete) Button(Test mode)

5 Button - PLAY Button
(Laser of DVD) POWER Bmton FL Display (Test mode & display of jitter)

JV w.
43mm Efié .JD. / W... 1

(Laser of CD)

Page 33

XV-SSGBK/XV-857SL

2.Pin function (3/3) MN677OGZY
Pin No. Symbol l/O Description
81 33VSS - Ground(For l/O)
82 33VDD - Apply 3.3V(For l/O)
83 TX 0 Digital audio interface
84 XRESET | Reset input (System control)
85 ENS | Servo DSC serial l/F chip select (System control)
86 ENC l ClRC serial l/F chip select (System control)
87 CPUIRQ O Interrupt request (System control)
88 CPUCLK l Syscon serial l/F clock (System control)
89 CPUDTIN l Syscon serial l/F data input (System control)
90 CPUDTOUT O Syscon serial l/F data output (System control)
91 MONA 0 Connect to TP226 (Monitor terminal A)
92 MONB 0 Connect to TP225 (Monitor terminal A)
93 MONC 0 Connect to TP224 (Monitor terminal A)
94 NC 0 Connect to TP211
95 25VSS - Ground(For internal core)
96 25VDD Apply 2.5V(For internal core)

97 LDCUR(AD6)

98 TDOFS(ADS)

99 TG(AD4) Tangential phase difference(FEP)

100 RFENV(ADB) RF envelope input(FEP)

1-33

Page 37

XV-SSGBK/XV-SS7SL

2.Pin function (4/5) ZlVA-4.1-PA2
Pin No. Symbol |/O Description

129 VSS - Connect to ground

130 NC - Non connect

131 VSS_DAC - Connect to ground for analog video DAC

132 VSSWVIDEO - Connect to ground for analog video

133 CV88 0 DAC video output format : CVBS. Macrovision encoded

134 VDD_DAC - Power supply terminal for analog video DAC

135 VDD,VlDEO - Power supply terminal for analog video

136 NC - Non connect

137 VSS_DAC - Connect to ground for analog video DAC

138 VSS_V|DEO - Connect to ground for analog video

139 CVBS/G/Y O DAC video output format. Macrovision encoded

140 VDDrDAC - Power supply terminal for analog video DAC

141 VDD_VIDEO - Power supply terminal for analog video

142 NC - Non connect

143 VSS_DAC - Connect to ground for analog video DAC

144 VSS_V|DEO - Connect to ground for analog video

145 Y/B/U O DAC video output format. Macrovision encoded

146 VDD_DAC - Power supply terminal for analog video DAC

147 VDD_VlDEO - Power supply terminal for analog video

148 NC - Non connect

149 VSSDAC - Connect to ground for analog video DAC

150 VSS_V|DEO - Connect to ground for analog video

151 C/R/V O DAC video output format. Macrovision encoded

152 VDD_DAC - Power supply terminal for analog video DAC

153 VDD_VlDEO - Power supply terminal for analog video

154 VSS_RREF - Connect to ground for analog video

155 RREF 0 Reference resistor. Connecting to pin 154

156 VDD_RREF - Power supply terminal for analog video 3.3V

157 A_VSS - Power supply terminal for analog PLL 3.3V

158 SYSCLK l Optical system clock. Tie to A_VDD through a 1K ohm resistor

159 VCLK l System clock input

160 A_VDD - Power supply terminal for analog PLL 3.3V

161 DVD-DATAO/CD-DATA l Serial CD data.This pin is shared with DVD compressed data DVD-DATAO

162 DVD-DATA1/CD-LRC l Programmable polarity 16-bit word synchronization to the decoder.
This pin is shared with DVD compressed data DVD-DATA1

163 DVD-DATAZ/CD-BCK | CD bit clock. Decoder accept multiple BCK rates. This pin is shared with
DVD compressed DVD-DATA2

164 DVD-DATA3/CD-CZPO l Asserted HlGH indicates a corrupted byte.This pin is shared with DVD
compressed data DVD-DATA3

165 DVD-DATA4/CDGSDATA l DVD parallel compressed data from DVD DSP. or CD-G data indicating
serial subcode data input

166 VSS - Connect to ground

167 VDD - Power supply terminal 3.3V

168 DVD-DATAS/CDG-VFSY | DVD parallel compressed data from DVD DSP. or CD-G frame sync
indicating frame-start or composite synchronization input.

169 DVD-DATAGICDG-SOS1 | DVD parallel compressed data from DVD DSP. or CD-G block sync

indicating block-start synchronization input

1-37
