Jvc XVS 500 BK Schematic
This is the 14 pages manual for Jvc XVS 500 BK Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 14

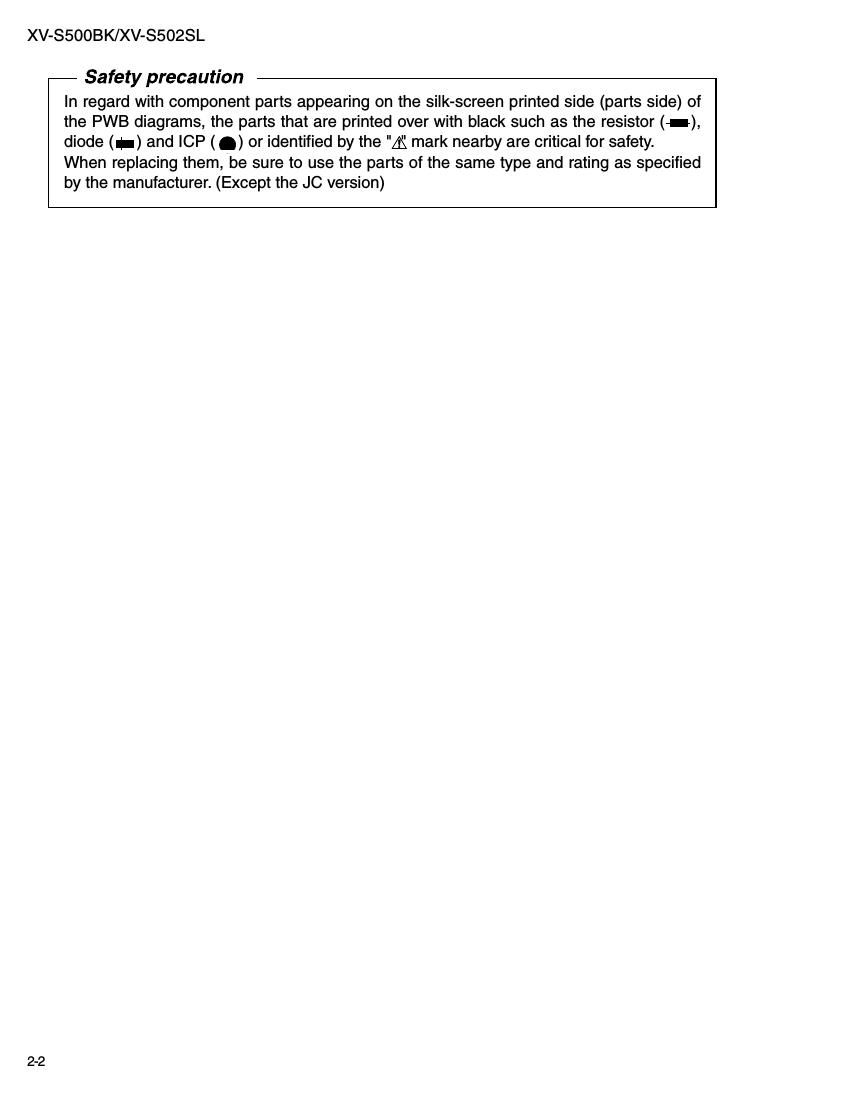

Extracted text from Jvc XVS 500 BK Schematic (Ocr-read)
Page 1
XV-SSOOBK/XV-SSOZSL
- Safety precaution
In regard with component parts appearing on the silk-screen printed side (parts side) of
the PWB diagrams, the parts that are printed over with black such as the resistor (I),
diode (h) and ICP (Q) or identified by the "A: mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified
by the manufacturer. (Except the JC version)
