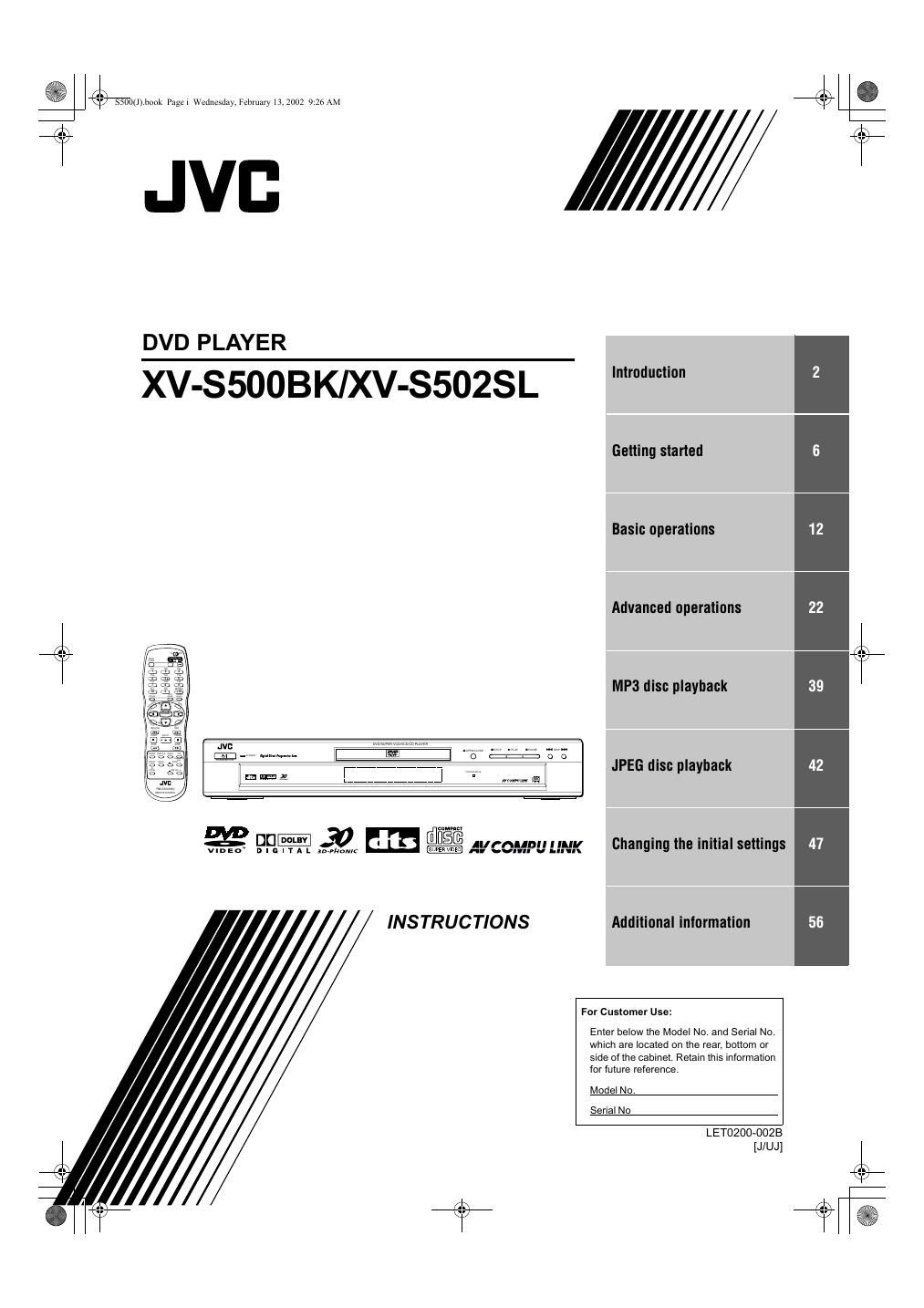

Jvc XVS 500 BK Owners Manual
This is the 71 pages manual for Jvc XVS 500 BK Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc XVS 500 BK Owners Manual (Ocr-read)
Page 1
Warnings, Cautions and Others Mises en garde, précautions et indications diverses CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin d'éviter tout risque d'électrocution, d'incendie, etc.: 1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l'appareil. 2. Ne pas exposer l'appareil à la pluie ni à l'humidité. CAUTION - Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.) - Do not place any naked flame sources, such as lighted candles, on the apparatus. - When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly. - Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. ATTENTION - Ne bloquez pas les orifices ou les trous de ventilation. (Si les orifices ou les trous de ventilation sont bloqués par un journal un tissu, etc., la chaleur peut ne pas être évacuée correctement de l'appareil.) - Ne placez aucune source de flamme nue, telle qu'une bougie, sur l'appareil. - Lors de la mise au rebut des piles, veuillez prendre en considération les problèmes de l'environnement et suivre strictement les règles et les lois locales sur la mise au rebut des piles. - N'exposez pas cet appareil à la pluie, à l'humidité, à un égouttement ou à des éclaboussures et ne placez pas des objets remplis de liquide, tels qu'un vase, sur l'appareil. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPENCAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended toalert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. For Canada/pour le Canada CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR: APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS. Caution –– STANDBY/ON switch! Disconnect the mains plug to shut the power off completely. The STANDBY/ON switch in any position does not disconnect the mains line. The power can be remote controlled. Attention –– Commutateur STANDBY/ON ! Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé. IMPORTANT FOR LASER PRODUCTS IMPORTANT POUR LES PRODUITS LASER 1. CLASS 1 LASER PRODUCT 2.DANGER: Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3.CAUTION: Do not open the top cover. There are no user service-able parts inside the Unit; leave all servicing to qualified service personnel. 1. PRODUIT LASER CLASSE 1 2.ATTENTION: Radiation laser visible quand l'appareil est ouvert ou que le verrouillage est en panne ou désactivé. Eviter une exposition directe au rayon. 3.ATTENTION: Ne pas ouvrir le couvercle du dessus. Il n'y a aucune pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin de réparer votre appareil. S500(J).book Page 2 Wednesday, February 13, 2002 9:26 AM
Page 2
1 EnglishEnglish Table of Contents Introduction Page 2 Supplied accessories ..........................................................2 Notes on handling ..............................................................3 Important cautions ...................................................................3 Safety precautions ...................................................................3 About discs .........................................................................4 Playable disc types...................................................................4 Non-playable discs...................................................................4 Audio formats...........................................................................4 Disc structure............................................................................5 Video CDs and SVCDs with Playback Control function ........5 Care and handling of discs ......................................................5 Getting started Page 6 Connections ........................................................................6 Before making any connections .............................................6 To connect to a TV ...................................................................6 To connect to a stereo audio amplifier/receiver ....................8 To connect to digital audio device..........................................9 To connect the power cord .....................................................9 Using the remote control unit.........................................10 To install batteries in the remote control unit .....................10 Remote sensor .......................................................................10 To use the remote control unit for TV operation.................11 To control the volume of a JVC's amplifier or receiver ......11 Basic operations Page 12 Before operation ...............................................................12 Turning on/off the unit...........................................................12 The initial setup before using the unit .................................13 Basic playback ..................................................................14 Inserting and removing discs................................................14 To start playback ....................................................................15 To stop playback completely ................................................15 To stop playback temporarily ...............................................15 Resuming playback ..........................................................16 To memorize the interrupted position .................................16 To resume playback ...............................................................17 Variable speed playback ..................................................18 To advance or reverse playback rapidly while monitoring................................................................18 To advance a still picture frame-by-frame ...........................18 To playback in slow-motion ..................................................18 To locate the beginning of the scene or song ...............19 To locate a desired selection using 4 or ¢ ...................19 To locate a desired selection using the numeric buttons.... 19 Other convenient functions .............................................20 To check the playback status ................................................20 To move back the playback position while DVD VIDEO playback [One touch replay function] ...............................21 To change the brightness of the display window ...............21 Advanced operations Page 22 Playing from a specific position on a disc ......................22 To locate a desired scene from the DVD menu ...................22 To locate a desired scene from the menu of the Video CD/SVCD with PBC ...................................................22 To specify a desired title........................................................23 To locate a desired position in the current title or track [Time search].......................................................................23 To locate a desired scene from the display [DIGEST].........24 Changing the playback order ..........................................25 To playback in the desired order [Program playback] ........25 To playback in random order [Random playback] ..............26 Repeat playback ...............................................................27 To repeat the current selection or all tracks [Repeat playback] ............................................................... 27 To repeat a desired part [A-B repeat playback] ................... 28 Changing the language, sound and scene angle .......... 29 To select the subtitle language [SUBTITLE] ........................ 29 To change the audio language or sound [AUDIO] .............. 30 To select a scene angle of DVD VIDEO [ANGLE] ................. 31 Special picture playback and picture/sound effect ...... 32 To display continuous still pictures [STROBE] .................... 32 To zoom in/out pictures [ZOOM] .......................................... 32 To adjust the picture character [VFP] ................................... 33 To simulate surround sound [3D PHONIC] .......................... 34 Menu bar functions ......................................................... 35 To bring up the menu bar ..................................................... 35 Basic operation procedure .................................................... 35 Menu bar functions for DVD VIDEO ..................................... 36 Menu bar functions for Audio CD/Video CD/SVCD ............. 37 MP3 disc playback Page 39 About MP3 disc................................................................ 39 Operations........................................................................ 39 Basic operations..................................................................... 39 Selecting the desired Group and Track................................ 40 Direct selection....................................................................... 41 Repeat playback ..................................................................... 41 JPEG disc playback Page 42 About JPEG disc .............................................................. 42 Basic operations .............................................................. 43 To see a desired picture ........................................................ 43 To zoom in/out the picture [ZOOM] ..................................... 44 To see pictures continuously [slide-show mode] ......... 44 Playback pictures from the beginning of the disc ............... 44 Selecting the start point of the slide show .......................... 45 Repeat function ...................................................................... 46 Changing the initial settings Page 47 Selecting preferences...................................................... 47 About the Preference display................................................ 47 How to set preferences.......................................................... 47 LANGUAGE page ................................................................... 48 PICTURE page ........................................................................ 49 AUDIO page............................................................................ 50 OTHERS page ......................................................................... 52 Limiting playback by children ........................................ 53 To set Parental Lock for the first time [PARENTAL LOCK].............................................................. 53 To change the settings [PARENTAL LOCK] ......................... 54 To temporarily release the Parental Lock [PARENTAL LOCK].............................................................. 55 Additional information Page 56 Names of parts and controls .......................................... 56 Front panel ............................................................................. 56 Display window...................................................................... 56 Rear panel............................................................................... 56 Remote control unit ............................................................... 57 AV COMPU LINK remote control system ...................... 58 Connection and setup............................................................ 58 Operation ................................................................................ 58 Troubleshooting .............................................................. 59 Frequently Asked Questions .......................................... 61 Specifications ................................................................... 62 Appendix A: Country code list for Parental Lock.......... 63 Appendix B: Glossary ...................................................... 64 Appendix C: Index............................................................ 66 S500(J).book Page 1 Wednesday, February 13, 2002 9:26 AM
Page 24
Advanced operations 23 Advanced operations English 2 Use the numeric buttons to select the desired item. To select a number between 1 and 10: Press the corresponding button for the number. To select a number higher than 10: Use the +10 button. Examples: To select 13: +10 → 3 To select 34: +10 → +10 → +10 → 4 To select 40: +10 → +10 → +10 → 10 The unit starts playback of the selected item. You can return to the menu by pressing the RETURN button. When something like "NEXT" or "PREVIOUS" appears on the TV screen, the unit generally works as follows: Pressing ¢ advances to the next page. Pressing 4 returns to the previous page. * The method of the operation is different depending on the disc. If you want to playback a PBC-compatible Video CD/SVCD disc without activating the PBC function, start playback by using the numeric buttons instead of 3. (See page 19.) To activate the PBC function when a PBC-compatible Video CD/SVCD disc is being played back without the PBC function, carry out any of the followings: * Press TOP MENU or MENU. *Press 7 to stop playback, then Press 3 . While playing back a DVD VIDEO disc with more than one title, you can specify a desired title to be played using the numeric buttons. ¶During playback 1 Press TITLE/GROUP. "--" is shown in the title display area of the display window. (Example for the indication of display window) 2 Use the numeric buttons to specify a title to be played. To select a number between 1 and 10: Press the corresponding button for the number. To select a number higher than 10: Use the +10 button. Examples: To select 13: +10 → 3 To select 34: +10 → +10 → +10 → 4 To select 40: +10 → +10 → +10 → 10 The unit starts playback from the specified title. You can play a disc from the desired position by specifying the elapsed time from the beginning of the current title (for DVD VIDEO), or the disc (for Audio CD/ Video CD/SVCD) using the time search function. Note that some DVD VIDEO discs do not contain time information, and the time search function cannot be used. ¶For DVD VIDEO/AUDIO CD: During playback or while stopped ¶For Video CD/SVCD: In any condition except Video CD/SVCD playback with PBC 1 Press ON SCREEN twice. The menu bar appears on the TV screen. (See page 35 for details about menu bar.) 2 Use 2/3 to move to , then press ENTER. The pull-down menu for entering time appears under the . To specify a desired title Available : TV22 TV11 TV33 TV55 TV44 TV66 TV88 TV77 TV99 TV00 TV-/--10 MUTING+10TV/VIDEO CANCEL TITLE/ GROUP SUBTITLE RETURN OPEN/ CLOSETV DVD NEXT PREVIOUS SELECT STROBE CLEAR SLOW - SLOW+ VOL- VOL+ CH + CH - TOPMENU MENU ONSCREEN CHOICE ENTER STANDBY/ONTV DVD TITLE/ GROUP Numeric buttons VCDVD TITLE GROUP TRACKCHAP A-B 1 PROGRAM RANDOM LPCM MPEG DOLBY DIGITAL DTS 8 3 Title display area Current chapter numberNOTE Some DVD VIDEO discs may not accept this function because of disc contents. To locate a desired position in the current title or track [Time search] Available : (Screen example for DVD VIDEO) (Screen example for Audio CD) TV22 TV11 TV33 TV55 TV44 TV66 TV88 TV77 TV99 TV00 TV-/--10 MUTING+10TV/VIDEO CANCEL TITLE/ GROUP SUBTITLE RETURN NEXT PREVIOUS VOL- VOL+ CH + CH - TOPMENU MENU ONSCREEN CHOICE ENTER 2/3 ENTERON SCREEN Numeric buttons 1/3 1/3 OFF1/5 8.5Mbps TITLE 33 TOTAL 1: 25: 58CHAP 33 CHAP. TIME _:__:__ OFFPROG. RND. TIME 25: 58 TRACK 33 TIME __:__ S500(J).book Page 23 Wednesday, February 13, 2002 9:26 AM
Page 43
42 JPEG disc playback JPEG disc playback The unit can play back JPEG files on a private CD-R/RW disc. We refer to a disc that contains JPEG files as a "JPEG disc" in this manual. Note that, if a disc contains both of MP3 and JPEG files, you can only play back files of either type selected by the MP3/JPEG setting in the PICTURE preference display (See page 50). About JPEG disc On an JPEG disc, each material (still picture) is recorded on a file. Files may be grouped into a folder by category, etc. In addition, a folder can be a member of another folder, creating hierarchical folder layers. If you are familiar with a personal computer, you may easily understand the hierarchical file/folder construction of JPEG discs. This unit simplifies the hierarchical construction of a disc and manages folders by "Groups" in the following manners. A folder which has one or more files is regarded as a Group. A folders' folder which does not manage any file directly is ignored. Files which do not belong to any folder are grouped into "Group 1". The unit recognizes up to 150 files per Group, and up to 99 Groups per disc. It ignores those exceeding the maximum numbers and cannot play back them. If there is any type of files other than JPEG files in a folder. those files are also counted down from the total number of 150. What is JPEG? "JPEG" is an abbreviation for the Joint Photographic Experts Group and is an image format that utilizes a compression technique. There are three sub-types of the JPEG format as follows. baseline JPEG: used for digital cameras, web, etc. progressive JPEG: used for web lossless JPEG: an old type and rarely used now The unit supports only the baseline JPEG type, therefore, it cannot display pictures of the other types (progressive and lossless). If a JPEG disc contains JPEG files of non-baseline type, the unit recognizes those files as JPEG files, the JPEG CONTROL display and the display window shows the information of the contents (filename, file number, etc.), but you cannot show the still pictures of those files (the TV screen appears only in black.) NOTE Make sure that the TV - DVD switch on the remote control unit is set to "DVD" when using the 5/∞/2/3, numeric buttons for controlling the unit. TV DVD Group 1 file 1Group 2 Group 1' up to 150 files per directoryup to 99 Groups per disc NOTES for making a private JPEG disc using a CD-R/CD-RW disc: Select "ISO 9660" as the disc format. Finalize the disc after completing recording. We recommend to record a material at "640 x 480" resolution. The unit supports only the baseline JPEG type, therefore, it cannot display pictures of the other types (progressive and lossless). If a JPEG disc contains JPEG files of non-baseline type, the unit recognizes those files as JPEG files. the JPEG CONTROL display and the display window shows the information of the contents (filename, file number, etc.), but you cannot show the still pictures of those files (the TV screen appears only in black.) NOTES The unit does not support "packet write" discs. If the disc is recorded with multiple sessions, the unit supports up to five sessions. Some disc may not be played back, or take some time to open the whole picture because of the disc characteristics or recording condition. You cannot playback files in the desired (programmed) or random order. The screen saver function is activated while same picture is displayed for more than 5 minutes except during slide show playback (See page 44.) The unit only can play back files with any of the following file extensions; ".jpg", ".jpeg", ".JPG", ".JPEG" and any uppercase and lowercase combination (such as ".Jpg"). If a JPEG file name includes any 2-byte character, the unit may not show the file name correctly. When a picture resolution is more than "640 x 480", it takes some time to open the whole picture. Carry out an operation after opening the whole picture.The unit does not accept any operation (Stopping the unit, zooming in/out a picture etc.) while opening the picture. Time required for reading the disc contents differs with discs, depending on the numbers of Groups (folders) and files recorded, etc. If you play back a non-baseline JPEG file: The unit cannot display the still picture of the file. (the TV screen appears only in black.) In this case, other operations (such as stopping playback, selecting a file,etc.) are possible but may take a long time. While a JPEG disc is loaded, you cannot bring up any preference display (See page 47.) S500(J).book Page 42 Wednesday, February 13, 2002 9:26 AM
