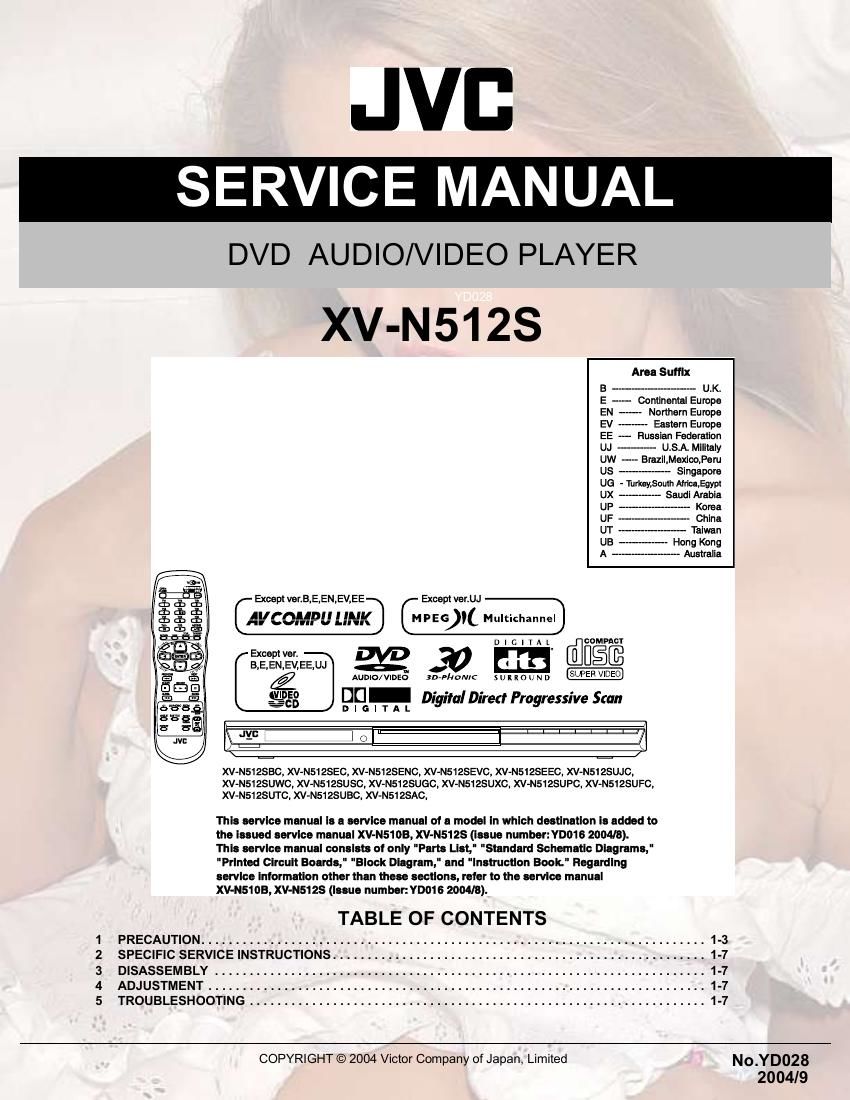

Jvc XVN 512 S Service Manual

Page 2

SPECIFICATION

XV-N5125 for
B,E,EN,EV,EE

XV-N51ZS for UJ XV-N51ZS for

US,UB,UG,UX,UW,UF,UT

XV-N5125 for A

XV-N51ZS for UP

General

Readable discs

DVD AUDIO, DVD VIDEO, DVD-R (Video format), DVD-RW (Video format/VR format), DVD-RAM (VR format), SVCD, Video

CD, Audio CD (CD-DA), CD»R/RW (CD-DA, SVCD, Video CD, MP3/WMA format, JPEG)

Video format

PAL, Interlaced scan/Pro- REMOTE, 480i (Interlaced scan)/ REMOTE, 525i/625i (Interlaced scan)/525p/625p (Progressive scan) selectable

gressive scan selectable 480p (Progressive scan) selectable

Other

Power requirements

AC 230 V~, 50 Hz lAC 120 V~, 60 HZ IAC 110 V-240V~, 50HZ/60 HZ IAC240V~,5OHZ

IAC 220 V~, 60 HZ

Power consumption

13 W (POWER ON), 2.0 W (STANDBY mode)

Mass

1.9kg

Dimensions (Wx H x D)

435 mm x 44 mm x 258.6 mm

Video outputs

COMPONENT Y Output: 1.0 Vp-p (75 O)

(pin lackS) PB/PR Output: 0.7 Vp-p (75 El)
VIDEO OUT (pin jack) 1.0 Vp-p (75 O)

S-VIDEO OUT Y Output: 1.0 Vp-p (75 n)

(S Jack) O Output: 286 mVp-p (75 :2)
RGB output 700 mVp-p (75 n) l»

Horizontal resolution

500 lines or more

Audio outputs

ANALOG OUT (pin jack)

2.0 Vrms (10 kg)

DIGITAL OUT (COAXIAL)

0.5 Vp-p (75 n termination)

DIGITAL OUT (OPTICAL)

-21 dBm to -15 dBm (peak)

Audio characteristics

Frequency response

CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):2 Hz to 44 kHz

DVD (sampling frequency 192 kHz/176.4 kHz):2 Hz to 88 kHz

Dynamic range

16 bit: More than 98 dB

20 bit/24 bit: More than 106 dB

Wow and flutter

Unmeasurable (less than +- 0.002%)

Total harmonic distortion

16 bit: less than 0.006%

20 bit/24 bit: less than 0.005%

* Notes for PX model (Check the specification indication on the rear panel.)
Power requirements AC 110 V to 240 V~ , 50 Hfl60 Hz
Power consumption 13 W (POWER ON), 2.0 W(STANDBY mode)

- Manufactured under license from Dolby Laboratories. Dolby," MLP Lossless," and the double-D symbol are trademarks of Dolby Laboratories.
- DTS" and DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.
- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless othenivise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
- CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION" OUTPUT.
IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CON-
TACT OUR CUSTOMER SERVICE CENTER."

Digital output signal chart

Disc type

Output

PCM ONLY ) DOLBY DIGITAL/PCM )

STREAM/PCM

DVD with 48/44.1 kHz, 16/20/24 bit
linear PCM DVD AUDIO with MLP

48/44.1 kHz, 16/20/24 bit, stereo linear PCM

DVD with 192/1764/96/882 kHz, 16/22/24
bit linear PCM DVD AUDIO with MLP

48/44.1 kHz, 16/20/24 bit, stereo linear PCM (Down sampling)

DVD with DTS

48 kHz, 16 bit, stereo linear PCM

DTS bitstream

DVD with Dolby Digital

48 kHz, 16 bit, stereo linear PCM ) Dolby Digital bitstream

DVD with MPEG Multichannel

48 kHz, 16 bit, stereo linear PCM

MPEG bitstream

SVCD/Video CD/Audio CD

44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS

44.1 kHz, 16 bit, stereo linear PCM )

DTS bitstream

CD-R/RW with MP3/WMA

Linear PCM

1-2 (NO.YD028)

Page 24

Basic playback I

ID

=

JEN-tel ll

> (SELECT)

Restarting playback after stopping
(Resuming playback)

DVD DVD Super Video
The player can memorize the position on a disc where you
interrupt playback, and resume playback from that position later.
There are three resume modes; ON, OFF and DISC RESUME.
The mode is initially set to ON when you purchased the player.

~ You can select the mode using the preference display (see
page 36).

When the resume mode is ON

When you press I, the player stops playback and memorizes the
interrupted position. The TV screen shows [RESUME STOP] and
the display window shows [- - - - RESUME] (for DVD AUDIO/
DVD VIDEO discs) or [- - RESUME] (for SVCDNideo CD discs).
The memory of the interrupted position is not cleared it you turn
off the player.

When you turn off the player after setting the resume function,
simply press >. The player is turned on, and playback starts from
the interrupted position. If you turn on the player by pressing (bu
then press >, playback starts from the beginning of the disc.
Note that the memory is cleared it you open the disc tray.

When the resume mode is Disc RESUME

When you press I, the player stops playback and memorizes the
interrupted position. The TV screen shows [RESUME STOP] and
the display window shows [- - - - RESUME] (for DVD AUDIO/

DVD VIDEO discs) or [- - RESUME] (for SVCDNideo CD discs).

The memory of the interrupted position is not cleared if you open
the disc tray or turn off the player.

Hint

The player memorizes interrupted positions for the last 30 discs
played. Storing a new interrupted position will erase the
interrupted position stored for the first disc.

To clearthe memory
Press I while the disc is stopped.

14

To resume playback
When the resume mode is "ON

While the disc you interrupted playback is
still on the disc tray, press >.

The player resumes playback from the position where
playback was interrupted. The TV screen and the display
window show [RESUME PLAY].

To play back from the beginning
Press I before pressing > to start playback.

When the resume mode is "DISC RESUME"

1 Press A to insert a disc for which the player

has stored an interrupted position.
The TV screen shows [RESUME STOP].

2 Press >.
The TV screen and the display window show [RESUME
PLAY] and the player resumes playback from the position
where playback was interrupted.

To play back from the beginning
After inserting the disc, press I before pressing > to start
playback.

m

- It you change the [RESUME] setting from [DISC RESUME] to
[OFF] or [ON], you cannot resume playback of a disc whose
resuming position is stored. However, when you again set
[RESUME] to [DISC RESUME], you will then be able to resume
playback of the disc.

- If you interrupt the playback of a disc for which an interrupted
position has already been stored, the memory will be updated
with the new interrupted position.

- For a double-sided DVD AUDIO/DVD VIDEO disc, the player
regards each side as a different disc. Therefore, to resume
playback of such a disc, the disc must be inserted with the
same side down.

- When the player memorizes an interrupted point for a disc, it
also memorizes Audio, Subtitle and Angie settings.

- The player may not resume playback exactly from the
interrupted point. In the case of an SVCDNideo CD disc with
PEG function, the player may resume playback from a point
slightly earlier or later than the point where playback was
interrupted.
