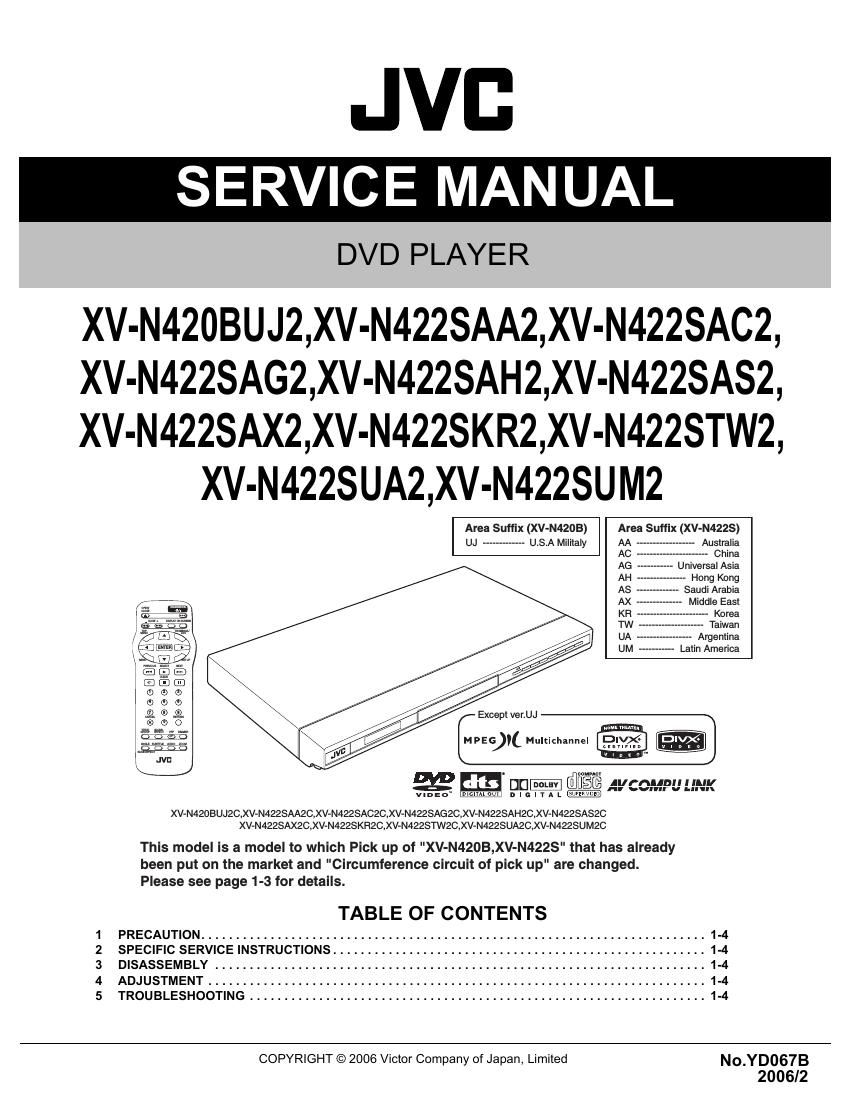

Jvc XVN 422 Service Manual

Page 2

SPECIFICATION

XV-N4ZOSUJ2

XV-N4225AA2,XV-N422$ACZ,XV-N4225AGZ,
XV-N4225AH2,XV-N4ZZSA32,XV-N4228AX2,
XV-NAZZSTW2,XV-N422$UA2,XV-N4225UM2

XV-N4228KR2

General

Readable discs

DVD VIDEO, DVD-R (Video for-
mat), DVD-RW (Video format),
SVCD, Video CD, Audio CD (CD-

DVD VIDEO, DVD-R (Video format), DVD-RW (Video format), SVCD,
Video CD, Audio CD (CD-DA), CD-R/RW (CD-DA, SVCD, Video CD,
MP3/WMA format, JPEG, DivX)

DA). CD-R/RW (CD-DA, SVCD,
Video CD, MP3NVMA format,
JPEG)

NTSC, 480i/480p selectable

Video format NTSC : 525i/525p

PAL : 625i/625p
Other

AC 110V - 240 V~. 50 Hz/60 Hz
(Only for the Australia model: AC 220 V - 240 V~,50Hz)

11.0 W (POWER ON), 1.0 W (STANDBY mode)
1.5 kg
435mm x 44mm x 203.5 mm

Power requirements AC 220V ~, 60 Hz

Power consumption

Mass
Dimensions (W x H X D)

Video outputs

COMPONENT (pin jacks) Y Output: 1.0 Vp-p (75 £2)
Pb/Pr Output: 0.7Vp-p (75 9)
1.0 Vp-p (75 51)

Y Output: 1.0 Vp-p (75 Q)

C Output: 286mVp-p (75 Q)

500 lines or more

VIDEO (pin jack)
S-VIDEO (S jacks)

Horizontal resolution

Audio outputs

ANALOG OUT (pin jack)
DIGITAL OUT (COAXIAL)

2.0 Vrms (10 kn)
0.5 Vp-p (75 Q termination)

Audio characteristics
CD (sampling frequency 441 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):2 Hz to 44 kHz
Unmeasurable (less than +- 0.002%)
less than 0.009%

Frequency response

Wow and flutter

Total harmonic distortion

- Manufactured under license from Dolby Laboratories. Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- Official DivX CertifiedTM product"

Plays DivXR 5, DivXR 4, DivXR 3, and DivXR VOD video content (in compliance with DivX CertifiedTM technical requirements)" Di-
vX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under license."

- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless othenNise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD
DEFINITION" OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER. PLEASE CONTACT OUR CUSTOMER SERVICE CENTER."

1-2 (No.YD067B)
