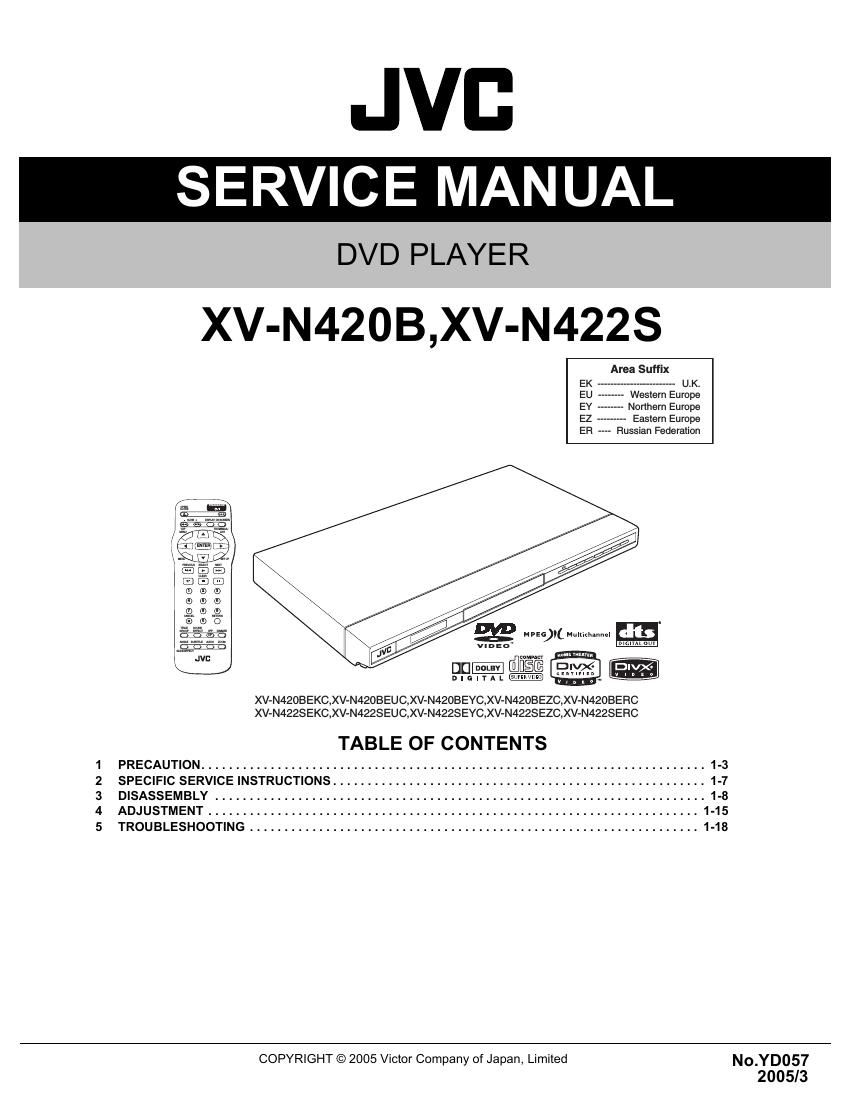

Jvc XVN 420 B Service Manual

Page 2

SPECIFICATION

XV-N4ZOB,XV-N4228 forEK,EU,EY,EZ,ER

General
Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW (Video format). SVCD, Video CD. Audio CD (CD-
DA),CD-RIRW (CD-DA. SVCD, Video CD. MP3/WMA format, JPEG, DivX)
Video format PAL, 625i/625p selectable
Other
Power requirements AC 230 V~, 50 Hz
Power consumption 11.0 W (POWER ON), 1.0 W (STANDBY mode)
Mass 15 kg

Dimensions (W X H x D) 435mm X 44mm X 203.5 mm

Video outputs

VIDEO OUT (pin jack) 1.0 Vp-p (75 0)

RGB Output 700 mVp-p (75 (2)
Component (pin jacks) Y Output: 1.0 Vp-p (75 £2)
Pb/Pr Output: 0.7Vp-p (75 Q)

Horizontal resolution 500 lines or more

Audio outputs

ANALOG OUT (pin jack) 2.0 Vrms (10 k0)
DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 S2 termination)
Audio characteristics

Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):2 Hz to 44 kHz

Wow and flutter Unmeasurable (less than +- 0.002%)

Total harmonic distortion less than 0.009%

- Manufactured under license from Dolby Laboratories. Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- Official DivX CertifiedTM product" Plays DivXR 5, DivXR 4, DivXR 3, and DivXR voo video content (in compliance with DivX Certi-
fiedTM technical requirements)" DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used un-
der license.

- This product incorporates copyright protection technology that is protected by US. patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD
DEFINITION" OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER. PLEASE CONTACT OUR CUSTOMER SERVICE CENTER."

1-2 (No.YD057)
