Jvc XVN 410 B Service Manual
This is the 73 pages manual for Jvc XVN 410 B Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

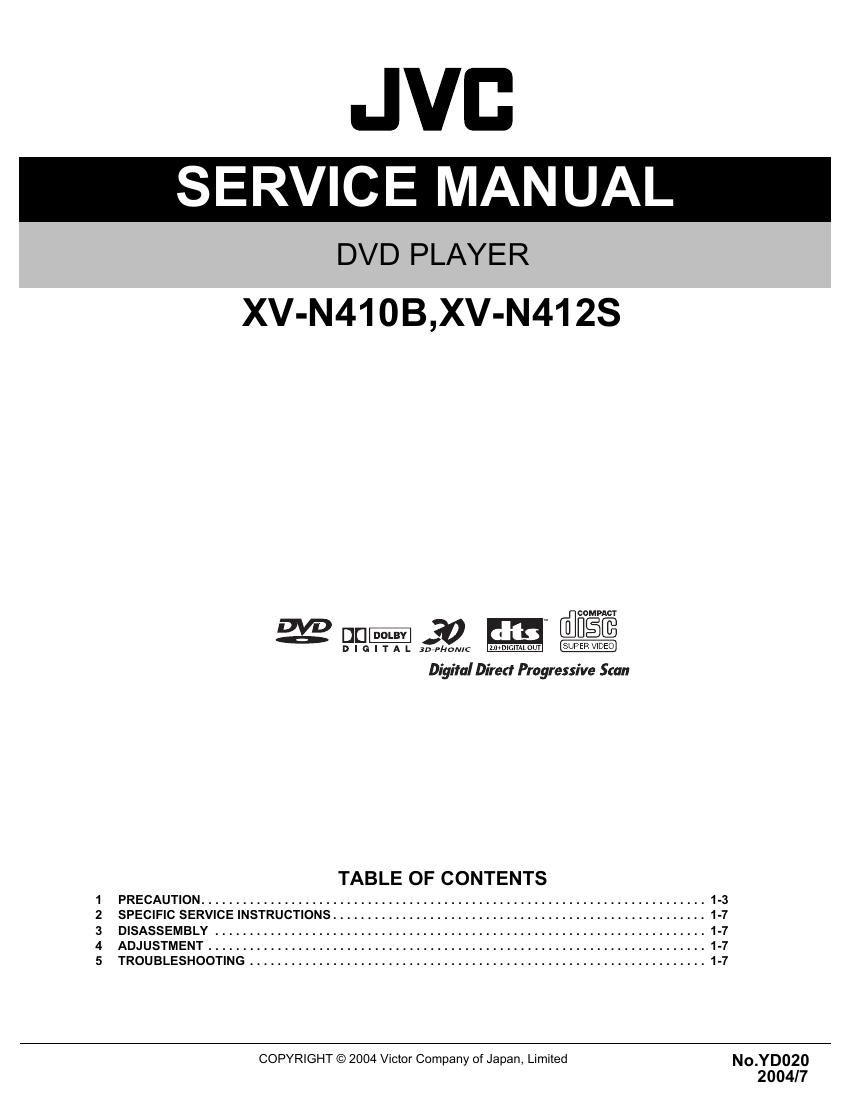

Extracted text from Jvc XVN 410 B Service Manual (Ocr-read)
Page 1
1-2 (No.YD020) SPECIFICATION - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. - "DTS" and "DTS 2.0+Digital Out" are trademarks of Digital Theater Systems, Inc. - This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual prop- erty rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Mac- rovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. - CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROB- LEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. Digital output signal chartXV-N410B for UJ XV-N412S for US,UB,UG,UX,UW,UF,UT XV-N412S for A General Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW (Video format), SVCD, Video CD, Audio CD (CD-DA), CD-R/RW (CD-DA, SVCD, Video CD, MP3/WMA format, JPEG) Video format REMOTE, 480i (Interlaced scan)/ 480p (Progressive scan) selectableREMOTE, 525i/625i (Interlaced scan)/525p/625p (Progressive scan) select- able Other Power requirements AC 120 V~, 60 Hz AC 110 V - 240 V~, 50 Hz/60 Hz AC 240 V~, 50 Hz Power consumption 12 W (POWER ON), 2.0 W (STANDBY mode) Mass 1.9 k g Dimensions (W × H × D) 435 mm × 44 mm × 258.6 mm Video outputs COMPONENT (pin jacks) Y Output: 1.0 Vp-p (75 Ω) PB/PR Output: 0.7 Vp-p (75 Ω) VIDEO OUT (pin jack) 1.0 Vp-p (75 Ω) S-VIDEO OUT (S jack) Y Output: 1.0 Vp-p (75 Ω) C Output: 286 mVp-p (75 Ω) Horizontal resolution 500 lines or more Audio outputs ANALOG OUT (pin jack) 2.0 Vrms (10 kΩ) DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 Ω termination) DIGITAL OUT (OPTICAL) -21 dBm to -15 dBm (peak) Audio characteristics Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz DVD (sampling frequency 48 kHz):2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals) DVD (sampling frequency 96 kHz):2 Hz to 44 kHz Dynamic range 16 bit: More than 98 dB 20 bit/24 bit: More than 100 dB Wow and flutter Unmeasurable (less than +- 0.002%) Total harmonic distortion 16 bit: less than 0.008% 20 bit/24 bit: less than 0.008% * Notes for PX model (Check the specification indication on the rear panel.) Power requirements AC 110 V to 240 V~ , 50 Hz/60 Hz Power consumption 12 W (POWER ON), 2.0 W(STANDBY mode) Disc typeOutput PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM DVD with 48/44.1 kHz, 16/20/24 bit linear PCM48/44.1 kHz, 16 bit, stereo linear PCM DVD with 96 kHz, 16/22/24 bit linear PCM48 kHz, 16 bit, stereo linear PCM (Down sampling) DVD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream DVD with Dolby Digital 48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream DVD with MPEG Multichannel 48kHz, 16 bit, stereo linear PCM MPEG bitstream SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM Audio CD with DTS 44.1kHz, 16 bit, stereo linear PCM DTS bitstream CD-R/RW with MP3/WMA Linear PCM
Page 2
(No.YD020)1-3 SECTION 1 PRECAUTION 1.1 Safety Precautions (1) This design of this product contains special hardware and many circuits and components specially for safety purpos- es. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be per- formed by qualified personnel only. (2) Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. (3) Many electrical and mechanical parts in the products have special safety-related characteristics. These characteris- tics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by us- ing replacement components rated for higher voltage, watt- age, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Ser- vice Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety charac- teristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. (4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassem- bling. (5) Leakage shock hazard testing) After reassembling the product, always perform an isola- tion check on the exposed metal parts of the product (an- tenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.Do not use a line isolation transformer during this check. - Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particular- ly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage cur- rent must not exceed 0.5mA AC (r.m.s.). - Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more sensi- tivity in the following manner. Connect a 1,500 ohm 10W resistor paralleled by a 0.15 F AC-type capacitor be- tween an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a returnpath to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 1.2 Warning (1) This equipment has been designed and manufactured to meet international safety standards. (2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained. (3) Repairs must be made in accordance with the relevant safety standards. (4) It is essential that safety critical components are replaced by approved parts. (5) If mains voltage selector is provided, check setting for local voltage. 1.3 Caution Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of pre- forming repair of this system. 1.4 Critical parts for safety In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (Except the JC version)
